Quick Details
-
Marketing Type:
-
New Product 2023
-
Brand Name:
-
Huarui
-
Voltage:
-
380V or customized
-
Power:
-
customized
-
Dimension(L*W*H):
-
customized
-
Weight:
-
1000
-
Product name:
-
Automatic Screw Stud Bolt Thread Rolling Machine
-
Range:
-
M2-M30
-
Function:
-
Threading screw bolt rebar
-
Advantage:
-
Automatic feeding , high speed
-
Fit For:
-
screw factories
-
Type:
-
Flat thread rolling machine
-
Certification:
-
CE Certification/ ISO 9001
-
After Warranty Service:
-
2 years
Quick Details
-
Place of Origin:
-
Henan, China
-
Application:
-
making thread for nail, screw, bolt
-
Production Capacity:
-
300 sets per month
-
Marketing Type:
-
New Product 2023
-
Brand Name:
-
Huarui
-
Voltage:
-
380V or customized
-
Power:
-
customized
-
Dimension(L*W*H):
-
customized
-
Weight:
-
1000
-
Product name:
-
Automatic Screw Stud Bolt Thread Rolling Machine
-
Range:
-
M2-M30
-
Function:
-
Threading screw bolt rebar
-
Advantage:
-
Automatic feeding , high speed
-
Fit For:
-
screw factories
-
Type:
-
Flat thread rolling machine
-
Certification:
-
CE Certification/ ISO 9001
-
After Warranty Service:
-
2 years
Products Description
Application Scope of Big plum head ribs cement nail screw thread rolling machine

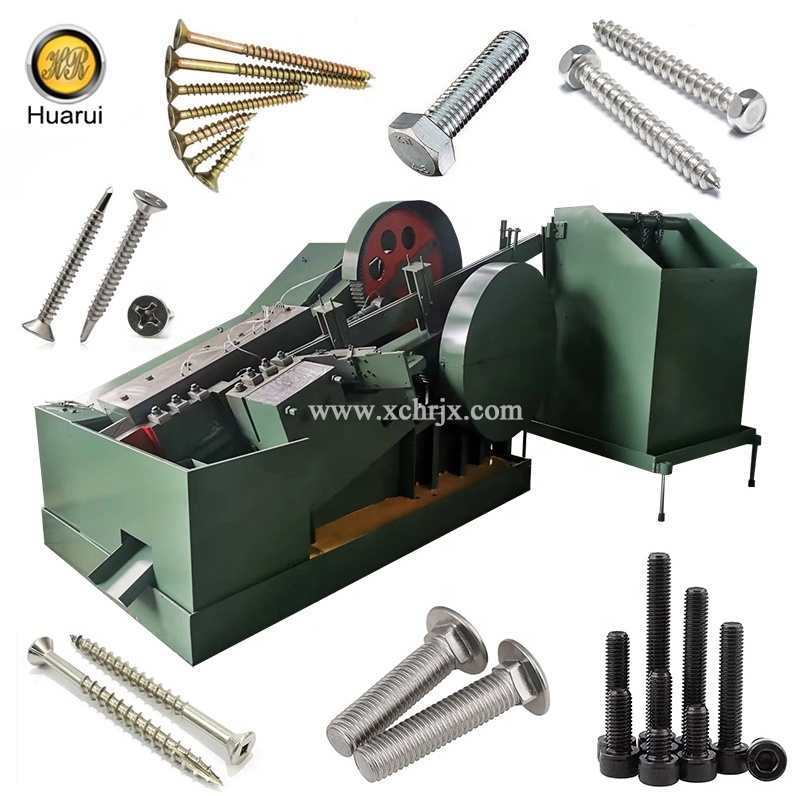

High Speed Flat Die Screw Thread Rolling Machine is a kind of machine with two-parallel thread rolling dies to reciprocate the thread of various screws and bolts, which is an automatic device without chip processing.
The production screws and bolts thread rolling process achieved by subjecting the workpiece to cold forming extrusion. The machine tool has a stable and powerful manufacturing force, and the unique material pushing mechanism design makes the workpiece feeding smoothly. The centralized lubrication system ensures that the friction part can be lubricated in the oil film to ensure the durability of the machine.
Our company has a variety of full automatic, semi-automatic, manual feeding three types of High Speed Flat Die Screw Thread Rolling Machine to be selected, material loading have
vibration hopper type
,
multi-function board layer hopper
,
single board layer hopper
,
drum type for users to choose
, and can be customized according to user’s products and requirements.
Technical parameters
|
Model
|
Max Screw Dia(mm)
|
Max Screw Length(mm)
|
Capacity
(pcs/min)
|
Motor
(KW)
|
Weight(Ton)
|
Over Size (m)
|
|
HR6-60A
|
M6
|
60
|
4/0.37
|
180
|
1.5
|
1.7*1.65*1.3
|
|
HR6-60B
|
M6
|
60
|
4/0.37
|
180
|
1.5
|
1.7*1.65*1.3
|
|
HR6-100B
|
M6
|
100
|
5.5+0.37
|
110
|
1.9
|
2.7*1.3*1.3
|
|
HR8-80B
|
M8
|
80
|
5.5/0.37
|
110
|
1.8
|
2.1*1.55*1.3
|
|
HR8-100B
|
M8
|
100
|
7.5+0.37
|
100
|
2.1
|
2.7*1.7*1.3
|
|
HR8-120B
|
M8
|
120
|
5.5
|
100
|
2.1
|
2.4*1.8*1.4
|
|
HR10-120B
|
M10
|
120
|
7.5
|
80
|
1.8
|
2.35*1.95*1.4
|
|
HR12-120B
|
M12
|
120
|
11
|
60
|
3
|
2.45*2*1.45
|
|
HR12-160B
|
M12
|
160
|
13
|
60
|
3
|
2.45*2*1.45
|
|
HR12-220B
|
M12
|
220
|
15
|
50
|
3.5
|
2.5*2*1.45
|
Applications
self tapping screws,rivets,hinge pin and special parts,chipboard screw,particle board screw,double ended screw,dowel screw,hanger bolt,drywall screw,lag screw,mirror screw,sheet metal screw,Twinfast screw,wood screw,Security head screw,self-drilling ,screw,self-tapping machine screw,Teks screw,auto fasteners,etc.
