- Product Details
- {{item.text}}
Quick Details
-
Outside Dim:
-
320 * 272 * 240 mm3 ( Wide * High * Deep)
-
Weight:
-
7.5kg
-
Max. Consumption:
-
80W
-
Power Source:
-
DC16.8V built-in lithium-ion battery (Built-in Lithium Battery)
-
Size Channels:
-
0.5, 1, 3, 5, 10, 25 μm
-
Flow Rate:
-
50L/min import sampling pump
-
Zero Count:
-
<10min
-
Location Labels:
-
0-9999
-
Printer:
-
Built-in Thermal Printer
-
Maximum Rated Particle Concentration:
-
35000 particles/L
Quick Details
-
Brand Name:
-
SuGOLD
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
Y09-550
-
Outside Dim:
-
320 * 272 * 240 mm3 ( Wide * High * Deep)
-
Weight:
-
7.5kg
-
Max. Consumption:
-
80W
-
Power Source:
-
DC16.8V built-in lithium-ion battery (Built-in Lithium Battery)
-
Size Channels:
-
0.5, 1, 3, 5, 10, 25 μm
-
Flow Rate:
-
50L/min import sampling pump
-
Zero Count:
-
<10min
-
Location Labels:
-
0-9999
-
Printer:
-
Built-in Thermal Printer
-
Maximum Rated Particle Concentration:
-
35000 particles/L
Product Description

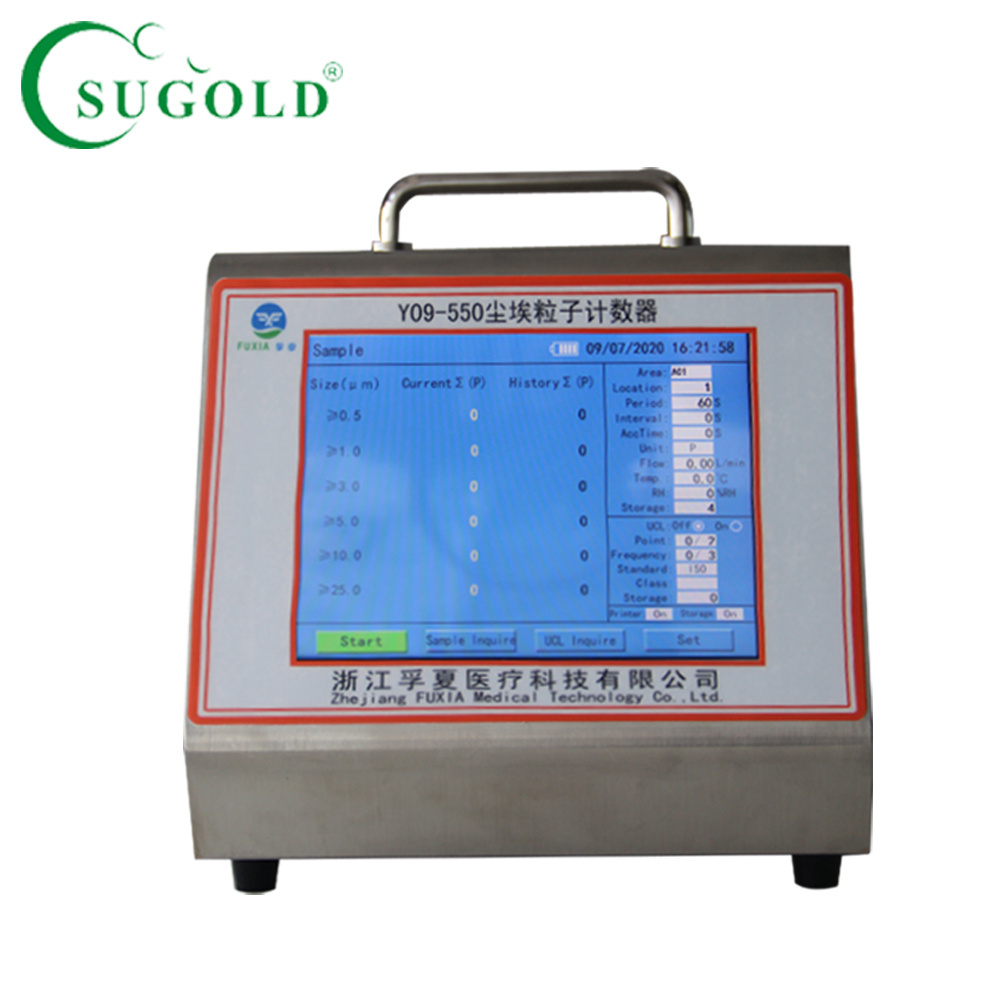

Y09-550 advanced technical air dust laser particle counter
Summary
Laser particle counter 50L/min is a kind of instrument used to measure the size and quantity of dust particles in unit volume air of clean environment, which can directly detect different class clean environment. With features of using laser light source, large LCD touch- screen display, small size, light weight, high precision, simple operation, storing & printing the measurement results and so on, this product is widely used in electronics, optical, chemical, food, cosmetics, e-health, biological products, aerospace, etc.
Features
1.Flow rate : 50L/min
1.Flow rate : 50L/min
2.AC DC power supply (Built-in lithium battery).
3.Stainless steel housing, easy to surface cleaning and disinfection.
4.Display six-channel particle sizes and particle concentration (pcs/m3).
5.Automatic UCL calculation (for the 2010
version of GMP, ISO14644-1)
version of GMP, ISO14644-1)
6.95% UCL calculation of particle concentration can be displayed directly (particles / cubic meter)
|
Model
|
Y09-550
|
Y09-5100
|
|
|
Display
|
LCD display
|
|
|
|
Weight
|
7.5kg
|
|
|
|
Max.Consumption
|
80W
|
|
|
|
Power Source
|
DC16.8V(Built-in Lithium Battery)
|
|
|
|
Size Channels
|
0.5, 1,3,5,10,25µm
|
|
|
|
Calculation
|
95% UCL calculation of particle concentration can be displayed directly( particles/ cubic meter, grain/ cubic feet)
|
|
|
|
Flow Rate
|
50L/min import samplig pump
|
100L/min (imported pump)
|
|
|
Sample Time
|
6~999999s optional (selectable)
|
0~999999s (selectable)
|
|
|
Zero Count
|
≤10min
|
|
|
|
Location Labels
|
0-9999
|
|
|
|
Printer
|
Built-in thermal printer
|
|
|
|
Alarm
|
Class
|
ISO/own (class)
|
|
|
Date Storage
|
20000 Group/Section 300UCL (with a PC dedicated communication software)
|
|
|
|
Output
|
USB
|
|
|
|
Light Source
|
Laser Diode(30000 hours mean time between failures)
|
|
|
|
Maximum Rated Particle Concentration
|
35000 particles/L
|
|
|
|
Operating Time
|
5 hours
|
3 hours
|
|
|
Environmental
|
Temperature: 10~35 degrees celsius Humidity:20~75 percent RH Atmosphere Pressure: 86~106Kpa
|
|
|
