The 360-degree telescopic boom is 6 meters long, the rotating platform is fast, and the 4-meter leveling head can rotate and swing, leveling 24 square meters of concrete at a time.
The machine body rotates 360° and is designed with soft start and soft stop functions to ensure the stability of the leveling head.
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
300-500 square meters/h
-
Power:
-
23KW
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
IDEAL
-
Dimension(L*W*H):
-
3380*2500*1280mm
-
Product name:
-
concrete laser floor level screed
-
Application:
-
Road Construction Leveling
-
Type:
-
Diesel engine,4 stroke
-
Engine oil:
-
17L
-
Fuel consumption rate:
-
1.2L-3.0L/H
-
Oil volume:
-
1.4L
-
Walking style:
-
Wheeled
-
Hydraulic fluid oil volume:
-
30L
-
Leveling thickness:
-
3-30cm
-
Paving method:
-
Strand paving
Quick Details
-
Max. Paving Thickness:
-
300mm
-
Weight:
-
680 kg
-
Engine Brand:
-
B&S
-
Production Capacity:
-
300-500 square meters/h
-
Power:
-
23KW
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
IDEAL
-
Dimension(L*W*H):
-
3380*2500*1280mm
-
Product name:
-
concrete laser floor level screed
-
Application:
-
Road Construction Leveling
-
Type:
-
Diesel engine,4 stroke
-
Engine oil:
-
17L
-
Fuel consumption rate:
-
1.2L-3.0L/H
-
Oil volume:
-
1.4L
-
Walking style:
-
Wheeled
-
Hydraulic fluid oil volume:
-
30L
-
Leveling thickness:
-
3-30cm
-
Paving method:
-
Strand paving
LS-840 Concrete convenient laser floor level screed hot for vibrating plate and laser receiver
The whole machine is composed of scraper and leveling parts.
The main machine includes a scraper, vibrating unit, vibrating plate, and laser receiver. There is also have laser transmitter and handheld laser receiver to work with the machine.
Working principle: The machine relies on a gasoline generator to generate electricity, and drives the laser monitoring system with electric power. The computer control system drives the leveling part to level the concrete.
The Laser screed machine is used in large areas of concrete construction, such as the modern industrial workshop, the large market, storage, airport, plaza, and so on. The Laser Screed can satisfy the construction requirements of large areas and high planeness and levelness.
Working principle: The machine relies on a gasoline generator to generate electricity, and drives the laser monitoring system with electric power. The computer control system drives the leveling part to level the concrete.
The Laser screed machine is used in large areas of concrete construction, such as the modern industrial workshop, the large market, storage, airport, plaza, and so on. The Laser Screed can satisfy the construction requirements of large areas and high planeness and levelness.
Products Description
|
Model
|
S-840
|
|
Power engine
|
HONDA GX690/B&S 3864
|
|
Type
|
Diesel engine,4 stroke
|
|
Power
|
23KW,3000r/min
|
|
Engine oil
|
17L
|
|
Fuel consumption rate
|
1.2L-3.0L/H
|
|
Oil volume
|
1.4L
|
|
Walking style
|
Wheeled
|
|
Drive System
|
Hydraulic motor four-wheel drive
|
|
Drive Control
|
Hydraulic drive
|
|
Travel speed
|
3.3km/h
|
|
Steering Control
|
Electronically controlled steering
|
|
Hydraulic fluid oil volume
|
30L
|
|
Vibrating method
|
Motor vibrating
|
|
Leveling thickness
|
3-30cm
|
|
Paving method
|
Strand paving
|
|
Vibration frequency
|
4500/min
|
|
Working width
|
3300mm
|
|
Paving method
|
Strand paving
|
|
Stranding power
|
Hydraulic Motor
|
|
Stimulation force
|
2000N
|
|
Work efficiency
|
300-500Square meters/h
|
|
Elevation control
|
Hydraulic cylinder
|
|
Control System
|
Laser emitter
|
|
Control Effect
|
Flat, slope, double slope
|
|
Wheelbase
|
710mm
|
|
Seat position
|
Mid-mounted
|
|
Dimension
|
3380*2500*1280mm
|
|
Weight
|
880KG
|
A variety of types for you to choose from:
S-360--LASER SCREED
Original imported laser leveling equipment, laser sweeping signal more accurate, flatter.
The integrated shell is more beautiful: dustproof, anti-concrete burst, and protects the internal equipment.
The integrated shell is more beautiful: dustproof, anti-concrete burst, and protects the internal equipment.
S-990--LASER SCREED
The construction area is more than 60 square meters per hour, and the daily workload is more than 4,000 square meters, which
greatly improves the operation's efficacy.
B&S 31HP original imported engine, power surging winter one-touch start.
greatly improves the operation's efficacy.
B&S 31HP original imported engine, power surging winter one-touch start.

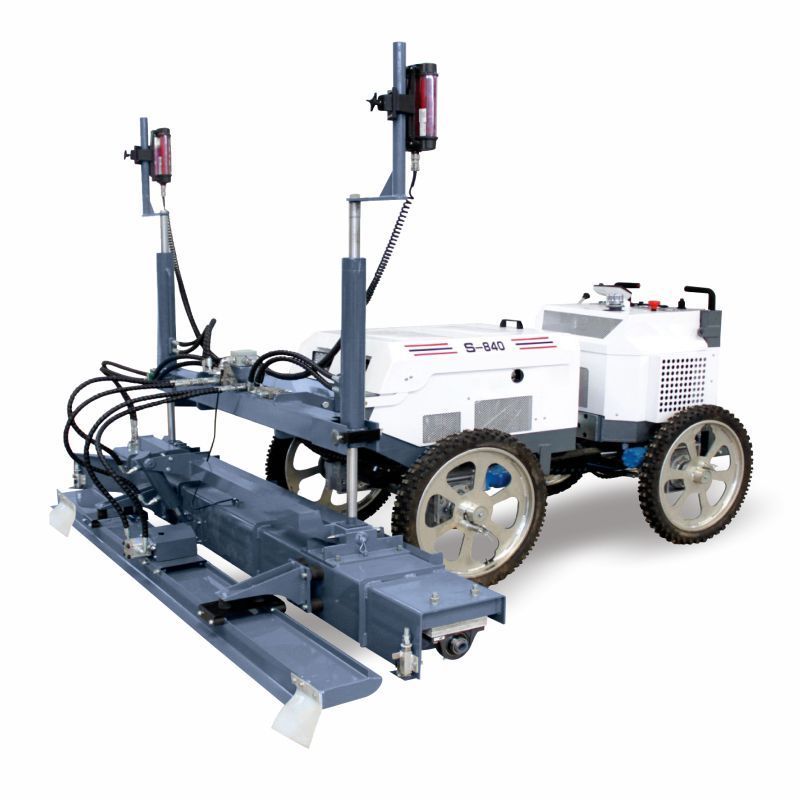

S-840--LASER SCREED
The structure is light and flexible, and the machine weighs only 880 kg.B&S 23 horsepower engine with plenty of power
Electric vibration, electric steering, electric walking.
Electric vibration, electric steering, electric walking.
Product Overview
Product use.
Common industrial plants, workshops, automated three-dimensional warehouses, large storage supermarkets, logistics centers, in the exhibition, wharves, container yards, yard yards, square, and residential ground.
Common industrial plants, workshops, automated three-dimensional warehouses, large storage supermarkets, logistics centers, in the exhibition, wharves, container yards, yard yards, square, and residential ground.
LIVE SHOWS:
Ask for the catalog of the machine/pictures&videos for your website and advertisement/User instructional video/User Manual of special model/special OEM requirements about the ma chine/Free gifts
Ask for the catalog of the machine/pictures&videos for your website and advertisement/User instructional video/User Manual of special model/special OEM requirements about the ma chine/Free gifts
Details Images
The structure is light and flexible, and the machine weighs only 880Kg.
Electric vibration, electric steering, electric walking.
American Bailitone 23 horsepower engine with sufficient power.
Electric vibration, electric steering, electric walking.
American Bailitone 23 horsepower engine with sufficient power.
The machine comes with replenishment spiral, which can reduce the labor intensity of construction workers and improve the quality of construction.
The machine comes with fine adjustment function, which can better control the accuracy of concrete floor and improve the construction quality.
The main structural parts are all imported, the performance is more stable.
Intelligent operation panel, flexible control, single person can operate the construction.
The machine comes with fine adjustment function, which can better control the accuracy of concrete floor and improve the construction quality.
The main structural parts are all imported, the performance is more stable.
Intelligent operation panel, flexible control, single person can operate the construction.
The laser emitter is arranged independently to ensure that the ground elevation is consistent and no error is produced.
The stranded cage between the vibrating plate and scraper will turn over the excess concrete to sow one side, reducing the manpower and improving the speed.
Integrated leveling head, multiple processes are integrated together to improve efficacy and save labor.
The construction area is more than 400 square meters per hour, and the workload can be completed more than 3000 square meters per day, and the operation efficacy is greatly improved.
The stranded cage between the vibrating plate and scraper will turn over the excess concrete to sow one side, reducing the manpower and improving the speed.
Integrated leveling head, multiple processes are integrated together to improve efficacy and save labor.
The construction area is more than 400 square meters per hour, and the workload can be completed more than 3000 square meters per day, and the operation efficacy is greatly improved.
Present a set of spare tires
Product packaging
1 unit was packed into an iron frame and then packed with 5 layers of corrugated carton. 4 strips reinforced the carton. the fix package guaranteed the machines were not damaged during transportation
