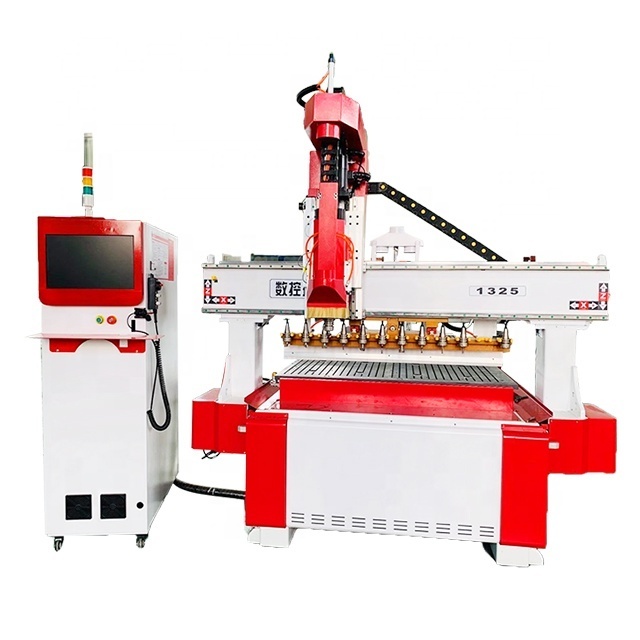

Good price 1300*2500mm cnc router engraving machine with atc spindle servo motor

Good price 1300*2500mm cnc router engraving machine with atc spindle servo motor

FOB Reference Price: Get Latest Price

≥1 Sets

US $15000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Travel (X Axis)(mm):: 1300 mm

Travel (Y Axis)(mm):: 2500 mm

Repeatability (X/Y/Z) (mm):: 0.05 mm

Place of Origin:: Shandong, China

Brand Name:: POWERTECH

Voltage:: 380V

Weight (KG):: 1200

Product name:: atc spindle motor cnc router

Spindle power:: 9KW ATC

Inverter:: 11KW

Drive system:: Yaskawa

Control system:: Syntec

Max air move speed:: 80m/min

Max working speed:: 25m/min

Reponsitioning accuracy:: ±0.05mm

Vacuum pump:: 7.5KW

Table structure:: Vacuum suction

Quick Details

Working Table Size(mm):: 1300*2500mm

Machine Type:: CNC Router

Positioning Accuracy (mm):: 0.05 mm

Travel (X Axis)(mm):: 1300 mm

Travel (Y Axis)(mm):: 2500 mm

Repeatability (X/Y/Z) (mm):: 0.05 mm

Place of Origin:: Shandong, China

Brand Name:: POWERTECH

Voltage:: 380V

Weight (KG):: 1200

Product name:: atc spindle motor cnc router

Spindle power:: 9KW ATC

Inverter:: 11KW

Drive system:: Yaskawa

Control system:: Syntec

Max air move speed:: 80m/min

Max working speed:: 25m/min

Reponsitioning accuracy:: ±0.05mm

Vacuum pump:: 7.5KW

Table structure:: Vacuum suction

Cheaper price 1300*2500mm cnc router engraving machine with atc spindle servo motor

Product feature

1. 8 pieces linear auto tool changer spindle, it can catch 8 pieces different CNC bits for different processing requirementd automatically with bits-changing time only 5 seconds, no need to change bits by hand and saving more time.
2. CNC Router Machine bed is heavy duty frame, which is welded by the thick wall steel seamless tube and processed by high temperature tempering treatment and vibrating stress relief (VSR) to reduce residual stress,good stability, no deformation.
3. CNC Router Machine adopts Japanese YASKAWA servo motor 750w and servopack drive with dual servo motors for Y-axis, moving stably with high speed.
4. Using Chinese well-known brand CC or HQD or JST of air-cooled brushless spindle with two direction air-cooling system, low noise, strong cutting ability and high efficiency to ensure the long time working.
5. UsingTaiwan Hiwin linear square guide rail and TBI ball screw, high precision, long life time.
6. Using the higher precision rack and pinion transmission for X and Y axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision.
7. Auto oil lubrication to make the maintenance more easy.
8. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
9. Emergency stop button, ensuring the operation safe.
10. Vacuum table with great absorption strength, high efficiency for mass production.
11. Good software compatibility, suitable for Type3, Artcam, Castmate, Ucancam, JDpaint, WENTAI , Mastercam ,Powermill and others.

Technical parameter

Model	linear or hat auto 8 cutters changer
Working size(XYZ) mm	13002500300
Spindle	Chinese famous brand CC air-cooling 9.0kw ATC spindle (Italy HSD optional)
Frequency inverter	Delta 11.0kw
Motor & Drive System	Japanese YASKAWA servo motor 750w & Japanese YASKAWA servopack drive
Reducer	Japanese SHIMPO reducer
Operating system	SYNTEC controller
Frame	Heavy-duty welded Structure10mm
X, Y Structure	Rack and Pinion Drive, 30 Hiwin Rail Linear Bearings
Z Structure	30 Hiwin Rail Linear Bearings and Ball Screw
Working table	Double layers Vacuum adsorption table
Max. Working Speed	60000mm/min
Max. Working Speed	40000mm/min
Command Language	G Code
Collet	ER32
Software Compatibility	Type3, Artcam,Ucancam and other software
Working Voltage	AC380V/50/60Hz, 3P (Option: 220V/3P)

Sample

1. Almost all nonmetals: all kinds of woods, solid wood, bamboo, MDF, acrylic, PVC, organic glass, PCB, plastic, foam and others.
2. Hard nonmetals (needs water-cooling): natural marble, granite, bluestone, sandstone, artificial stone, tombstone, headstone ,quartz stone ,milestone, memorial stone, ceramic tile, ceramics, jade or jade stone, crystal, glass,Man-made marble and others.
3. Soft metals (needs cutting fluid-cooling): copper, brass,aluminum composite panels, aluminum plate, aluminum sheet and aluminum parts .

Hot sale modle

Guarantee

We have professional pre-sales and after sales service

1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.

About POWERTECH

Packing and delivery

Packaging Details

1. Outside package: Standard export plywood case for CNC Router for advertising.

2. Inner package: Stretch film and plastic film for humidity.

Port Qingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen

Customer visit

FAQ

Q1:Is it easy to operate for a beginner?

We provide English manual or video guide that will show how to setup and use the machine

A1:Whether you are a beginner or an expert, you can quickly learn to operate. If you still have any problems, please contact us directly via calling or mailing.

Q2:How to choose a Suitable CNC router machine?

A2:Yes, in order to give you a suitable CNC router kit, please tell me the max working area, materials for processing and the thickness for the materials to be cut. Then an affordable CNC router machine will be recommended to fit your requirements.

Q3:If the CNC machine have any problem after I ordered it, how could I do?

A3:

1). Free parts will be sent to you in warranty period if the machine have any problem.

2). Free after-sales service life for the machine, please feel free to contact us if you have any problem.

3). We will offer 7/24 free service and support by phone, whatsapp, skype and mail.

Q4:What about the quality control?

A4:The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.

Q5:What about the MOQ?

A5:Our MOQ is one set

Q6:What about the payment terms?

A6:

1). Alibaba trade assurance.

2). 30% by T/T in advance, 70% by T/T before shipping.

2). L/C is acceptable, if the amount is big, please issue the draft for our confirmation at first.

Q7:What about the delivery terms?

A7:We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer. For standard

machines, it would be 7-10 days. For special ordered machines, it would be 15 to 30 days depends on the factory arrangement.

Q8:What about the documents after shipment?

A9:After shipment, we will send original documents to you by DHL which including packing list, commercial invoice, bill of landing, and other certificates as required by clients. International Shipping Around the World All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS.
