Quick Details
-
Filling Accuracy:
-
99%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VTOPS
-
Weight:
-
260 KG
-
Product Name:
-
Powder Auger Filling Machine
-
Filling Weight:
-
5g-5000g
-
Filling Speed:
-
0-50 fills/min
-
Filled Accuracy:
-
≥99%
-
Machine Material:
-
Food Grade Stainless Steel SUS 304
-
Voltage:
-
AC Single-phase 220V
-
Warranty Period:
-
2 Years
-
Manufacturing Experience:
-
Since 2001
-
Hopper Volume:
-
50 Liters
-
Certification:
-
CE
Quick Details
-
Machinery Capacity:
-
4000BPH, 500BPH, 2000BPH, 1000BPH
-
Packaging Material:
-
Plastic, Wood
-
Filling Material:
-
Powder
-
Filling Accuracy:
-
99%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VTOPS
-
Weight:
-
260 KG
-
Product Name:
-
Powder Auger Filling Machine
-
Filling Weight:
-
5g-5000g
-
Filling Speed:
-
0-50 fills/min
-
Filled Accuracy:
-
≥99%
-
Machine Material:
-
Food Grade Stainless Steel SUS 304
-
Voltage:
-
AC Single-phase 220V
-
Warranty Period:
-
2 Years
-
Manufacturing Experience:
-
Since 2001
-
Hopper Volume:
-
50 Liters
-
Certification:
-
CE
Product Description

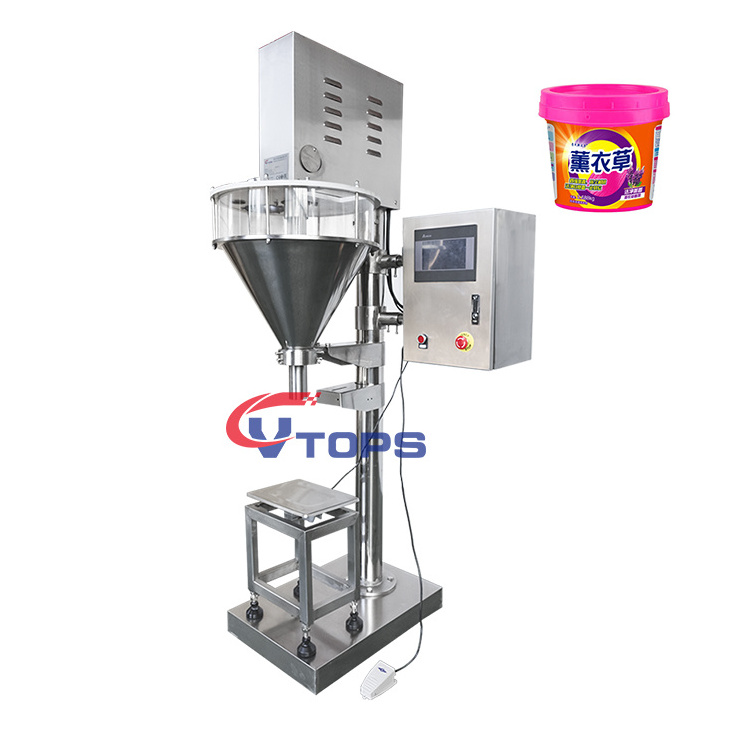

Dry Powder High Accuracy Net Weight Auger Filler | VTOPS-P2C & VTOPS-P2D
Net weight auger filler is a high accuracy dry powder weighing and filling machine. The machine is mainly designed for
high-precision packaging requirements for ultra-fine dry powder. Such as: milk powder, additives, flour and other ultrafine
powders with high precision packaging requirements.
high-precision packaging requirements for ultra-fine dry powder. Such as: milk powder, additives, flour and other ultrafine
powders with high precision packaging requirements.
Suitable for
Specification
|
Model
|
VTOPS-P2C
|
VTOPS-P2D
|
|
Filling Weight
|
1Kg-6Kg
|
1Kg-6Kg
|
|
Filled Error
|
≤ ±0.3%
|
≤ ±0.3%
|
|
Measurement Method
|
Auger Filler
|
Auger Filler
|
|
Entrance Height
|
1600 mm
|
1600 mm
|
|
Entrance Diameter
|
150 mm
|
150 mm
|
|
Nozzle Ground Clearance
|
800 mm
|
860 mm
|
|
Filling Speed
|
0-12 fills/min
|
0-12 fills/min
|
|
Contact Materials
|
SUS 304
|
SUS 304
|
|
HMI
|
LCD Touch Screen
|
LCD Touch Screen
|
|
Control System
|
PLC
|
PLC
|
|
Filling Motor
|
Stepper Motor
|
Stepper Motor
|
|
Hopper Volume
|
50 Liters
|
50 Liters
|
|
Easy Clean Hopper
|
Optional
|
Optional
|
|
Air Consumption
|
0.3 cm3/min
|
—
|
|
Machine Weight
|
200 Kg
|
200 Kg
|
|
Voltage
|
AC 3P 380V 50Hz
|
AC 3P 380V 50Hz
|
|
Powder
|
1.5Kw
|
1.5Kw
|
|
Dimensions
|
80*80*196cm
|
80*80*196cm
|
Features
* 1) The high accuracy auger filler performs two-speed filling, they are fast-fill and slow-fill. Fast-fill increase the filling
speed, but slow-fill increase the filling precision.
* 2) The metering and lifting according to the signal given by the weight sensor mounted under the container.
* 3) VTOPS-P2C is provided with an automatic Clamp-Hold bag system, which automatically releases after reaching the target weight.
* 4) VTOPS-P2D is provided with an Desk-Hold system for sturdy container, such as: plastic bottles, glass jars and metal tin cans.
speed, but slow-fill increase the filling precision.
* 2) The metering and lifting according to the signal given by the weight sensor mounted under the container.
* 3) VTOPS-P2C is provided with an automatic Clamp-Hold bag system, which automatically releases after reaching the target weight.
* 4) VTOPS-P2D is provided with an Desk-Hold system for sturdy container, such as: plastic bottles, glass jars and metal tin cans.
Details Images
P2C
P2D
Packing & Delivery
1. Manner of Packing: Covered by plastic film, packaging in export wooden cases in container.
2. Delivery Time: 7-10 working days after payment.
2. Delivery Time: 7-10 working days after payment.
