Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OCM
-
Product name:
-
Fiber Cement Board Sandwich Panel
-
Base Material:
-
MgSO4 board+EPS+MgSO4 board,MgSO4 board +XPS+MgSO4 board
-
Core:
-
XPS/EPS Polystyrene Foam
-
Usage:
-
external wall,Interior wall,proof panels,floors,partition,roof
-
Advantage:
-
Eco-friendly
-
Thickness:
-
25-300mm
-
Size of SIPS:
-
Standard 1200*2400mm/ 1200*2700mm/ 1200*3000mm
-
Fire Resistant:
-
Fire Resistant More Than 3 Hours
-
Connection:
-
T&G, G&G, and Four Sides Closed
-
Fireproof:
-
More than 3 hours
Quick Details
-
Project Solution Capability:
-
graphic design, total solution for projects
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OCM
-
Product name:
-
Fiber Cement Board Sandwich Panel
-
Base Material:
-
MgSO4 board+EPS+MgSO4 board,MgSO4 board +XPS+MgSO4 board
-
Core:
-
XPS/EPS Polystyrene Foam
-
Usage:
-
external wall,Interior wall,proof panels,floors,partition,roof
-
Advantage:
-
Eco-friendly
-
Thickness:
-
25-300mm
-
Size of SIPS:
-
Standard 1200*2400mm/ 1200*2700mm/ 1200*3000mm
-
Fire Resistant:
-
Fire Resistant More Than 3 Hours
-
Connection:
-
T&G, G&G, and Four Sides Closed
-
Fireproof:
-
More than 3 hours
Product Description

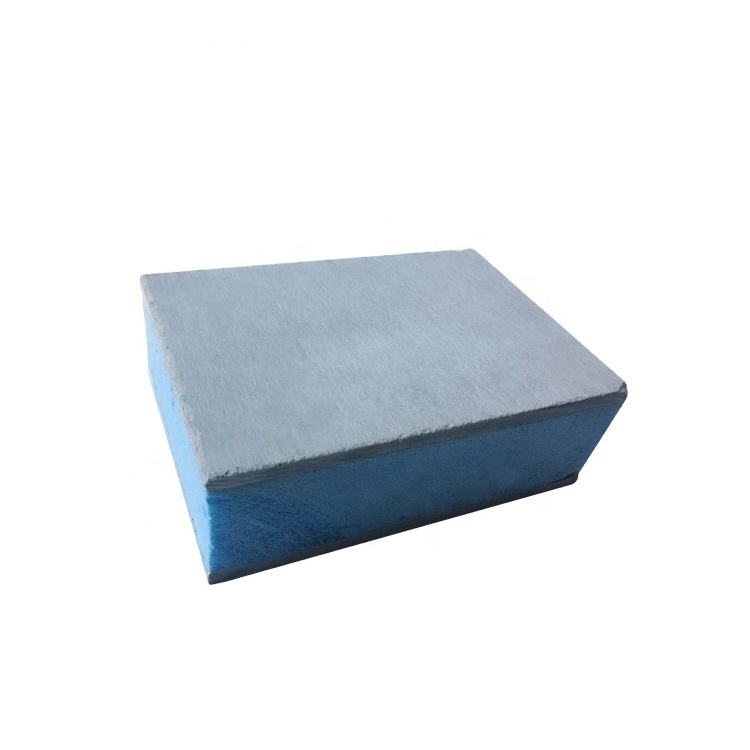

MGO Polyurethane PU SIP Panel Structural Insulated Panel
MGO Polyurethane PU SIP Panel Structural Insulated Panel is a composite building material
It consists of a sandwich of two layers of structural board with an insulating foam in between
Panel skins options include
* magnesium oxide boards(MGO sulfate board)
* Fiber cement board (FCB)
* Oriented strand board(OSB)
Insulation core options include
* Expanded Polystyrene(EPS)
* Extruded Polystyrene(XPS)
* Poly Urethane (PU)
* Polyisocyanurate(PIR)
* Polyurethane (PUR)
Application
MGO Polyurethane PU SIP Panel Structural Insulated Panel is high performing insulated wall
Application ranges from ceiling to flooring and everything in between
MGO Polyurethane PU SIP Panel Structural Insulated Panel is a composite building material
It consists of a sandwich of two layers of structural board with an insulating foam in between
Panel skins options include
* magnesium oxide boards(MGO sulfate board)
* Fiber cement board (FCB)
* Oriented strand board(OSB)
Insulation core options include
* Expanded Polystyrene(EPS)
* Extruded Polystyrene(XPS)
* Poly Urethane (PU)
* Polyisocyanurate(PIR)
* Polyurethane (PUR)
Application
MGO Polyurethane PU SIP Panel Structural Insulated Panel is high performing insulated wall
Application ranges from ceiling to flooring and everything in between
Specification
|
Base Material
|
Mgo board+EPS+Mgo board,Mgo board +XPS+Mgo board
|
|
|
||
|
Width(mm)
|
600 ,1100 ,1220
|
|
|
||
|
Length(mm)
|
1100, 2100, 2440 ,2600, 2700 ,2800, 2900, 3000
|
|
|
||
|
Thickness(mm)
|
25mm-300mm
|
|
|
||
|
Insulation types
|
EPS,XPS,PU,PUR,PIR,....etc
|
|
|
||
|
Fireproof
|
More than 3 hours
|
|
|
||
|
Application
|
external wall,Interior wall,proof panels,floors,partition,roof,prefab house
|
|
|
||
|
Advantage
|
100% no asbestos ,Light weight,easy to install,Fireproof,Moistureproof,
Watweproof,Anticorrosive,Energy efficient,Environmentally Friendly |
|
|
||
|
Technical Date
|
Units
|
EPS Sandwich panel
|
XPS sandwich panel
|
|
Density
|
Kg/m3
|
18-20
|
36-40
|
|
Thermal conductivity,90 days,10℃
|
W/mk
|
≤0.04
|
0.027-0.03
|
|
Compressive strength at 10% deflection or yield,(Vertical)
|
kPa
|
≥100
|
≤300
|
|
Tensile strength
|
kPa
|
≥100
|
≤300
|
|
Temperature limits
|
℃
|
-50,+75
|
-50,+75
|
|
Coefficient of linear thermal expansion
|
mm/mk
|
/
|
0.07
|
|
Water absorption
|
Vol-%
|
/
|
≥1.00%n
|
|
Capillarity
|
nil
|
/
|
nil
|
|
Structure
|
T&G
|
Cam lock
|
Sides closed
|
