Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
sinton
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
Final Dimension
-
Product name:
-
cartridge heater
-
Material:
-
Stainless Steel Ss304/316/321/Incoloy 800
-
Shape:
-
Round
-
Size:
-
Cuztomized
-
Diameter:
-
10-12-12.5-14-16 Mm
-
Heating element:
-
FeCrAl Resistance Heating Wire
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Canada, United States, France, India
-
Showroom Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
ISO
Quick Details
-
Type:
-
Cartridge Heater
-
Power Source:
-
Electric
-
Voltage:
-
12-250v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
sinton
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
Final Dimension
-
Product name:
-
cartridge heater
-
Material:
-
Stainless Steel Ss304/316/321/Incoloy 800
-
Shape:
-
Round
-
Size:
-
Cuztomized
-
Diameter:
-
10-12-12.5-14-16 Mm
-
Heating element:
-
FeCrAl Resistance Heating Wire
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Canada, United States, France, India
-
Showroom Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
ISO

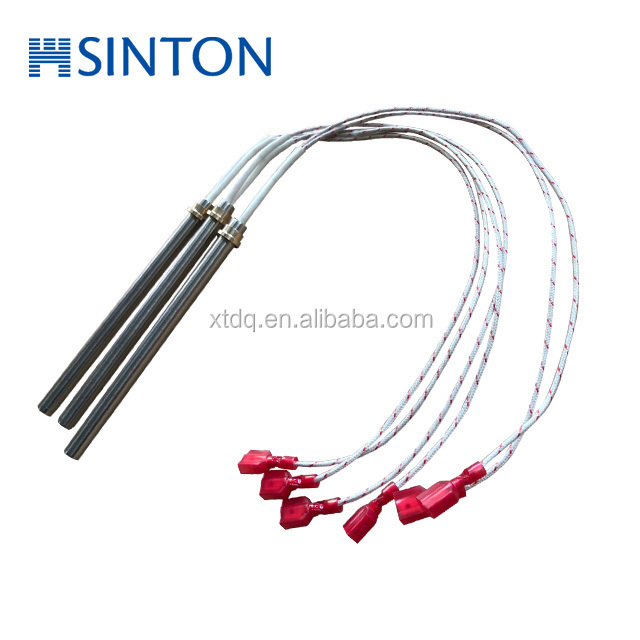

Product Introduction:
SINTON cartridge heaters are cylindrical electric heating elements.mostly used for heating up solids such as injection presses heating plates or various tools, they can also be used for heating up water of gases under certain conditions. Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry,etc they are also commonly found in the chemical,electronics,medical equipment,packing and unclear industries.
Main Features
1.High power density (heat area surface power 10-25w/cm2) Working temperature<450 degrees
2.Middle,low power density(heat atea surface power 5-11w/cm2) Working temperature<300 degress
3.Votage:12-250V or as requirment
4.High Density Construction
5.High-quality stainless steel construction provides long-lasting protection even in the most rugged industrial environments. Protected with a stainless steel sheath,their watt density can reach 50w/cm2 and their oprating temperature can go up to 800 degrees
Main Application:
* 3D printer.
* Extruder.
* Injection & blow moulding.
* Food processing machinery.
* Packing machine.
* Hot runner bushing.
* Hot plates, molds & dies.
* Medical equipment.
|
Packaging
|
|
|
|
Size
|
123 (L) * 456 (W) * 789 (D)
|
|
|
Weight
|
1.2 T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
