Quick Details
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YST
-
Model Number:
-
YST-R6
-
Depth:
-
950 mm
-
Weight Capacity:
-
1100 kg
-
Width:
-
950 mm
-
Height:
-
2100 mm
-
Pallet dimension:
-
950x950x310 mm
-
Post dimension:
-
2100X60X2.5T mm
-
Stackability:
-
4 high
-
Load in 40HQ:
-
160 sets
-
Finish:
-
Zinc/ hot dip galvanized/ powder coating
-
Advantage:
-
Save Storage Space
-
Available accessories:
-
Forklift guide, bag, wheels, etc.
-
Application:
-
Industry, Food Industry, Chemistry Industry, Plastics Industry, etc.
-
Warranty:
-
1 Year
Quick Details
-
Type:
-
Selective Pallet Rack
-
Material:
-
Steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YST
-
Model Number:
-
YST-R6
-
Depth:
-
950 mm
-
Weight Capacity:
-
1100 kg
-
Width:
-
950 mm
-
Height:
-
2100 mm
-
Pallet dimension:
-
950x950x310 mm
-
Post dimension:
-
2100X60X2.5T mm
-
Stackability:
-
4 high
-
Load in 40HQ:
-
160 sets
-
Finish:
-
Zinc/ hot dip galvanized/ powder coating
-
Advantage:
-
Save Storage Space
-
Available accessories:
-
Forklift guide, bag, wheels, etc.
-
Application:
-
Industry, Food Industry, Chemistry Industry, Plastics Industry, etc.
-
Warranty:
-
1 Year

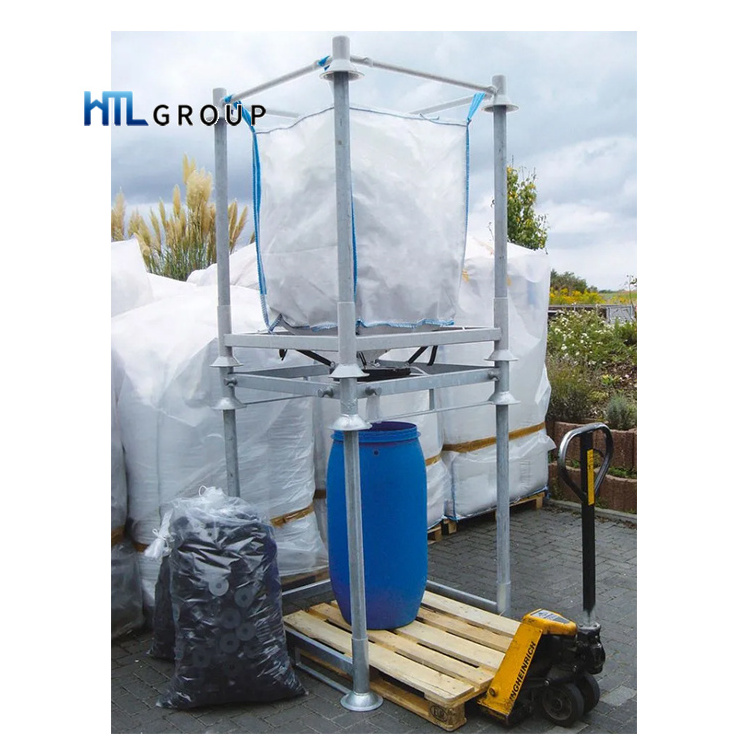

Customized pipe storage detachable metal steel big bag rack
Realize the three-dimensional management of the warehouse and Improve warehouse space utilization
Specifications of big bag rack
| Model No. | Exterior Dimension |
Loading Capacity |
Finish | Quantities |
Total container |
| LxWxH(mm) | kg | sets | |||
| YST-R1-Base | 1395x1060x310 | 1500 | Hot-dip zinc | 250 | 1x40'HQ |
| YST- R1-Post | 1200x60x2.5 | Hot-dip zinc | 1000 | ||
| YST- R2-Base | 1875x1060x310 | 2000 | Hot-dip zinc | 150 | 1x40'HQ |
| YST- R2-Post | 1200x60x2.5 | Hot-dip zinc | 600 | ||
| YST- R4-Base | 1545x1050x310 | 1000 | Powder coating | 247 | 1x40'HQ |
| YST- R4-Post | 1510x60x2.5 | Hot-dip zinc | 988 | ||
| YST- R5-Base | 1200x1000x310 | 1500 | zinc | 255 | 1x40'HQ |
| YST- R5-Post | 2000x60x2.5 | zinc | 1020 | ||
| YST- R6-Base | 950x950x310 | 1000 | zinc | 160 | 1x40'HQ |
| YST- R6-Post | 2100x60x2.5 | Hot-dip zinc | 640 | ||
| Material | Mild steel Q235 | ||||
|
Application |
Warehouse, logistics, recycling, fabric industry, etc. | ||||
| Remark | Customized or OEM support | ||||
|
Features |
1. High strength, wear resistance, high-temperature resistant 2. Can be stacked for 4 high , which greatly saves the storage space 3. Flexible for use and easy to clean 4. Easy to stack and move around with the fork truck |
||||
1. Ideal solution for palletized cargo.
2. Assembled and disassembled within seconds.
3. It will enable you to transform areas that are usually free into storage spaces.
We have many types of stacking big bag rack for you to choose from. We also provide customized services and try our best to meet your requirements.
Usage:
It is widely used in food, recycling, packaging, textile, and other industries. Stacking post pallet rack improves organization in the warehouse because they make it possible to see its inventory at a glance without digging through piles or unloading the rack.
Packaging:
Use steel straps to secure the rack to avoid damage.
Wrap the rack with cardboard and plastic film to reduce friction.
