Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
shaft less spiral blade screw machine
-
Roller materials:
-
Alloy, anti-wearing
-
Color:
-
Blue, green,
-
Power:
-
33KW
-
Operation way:
-
Automatic Control Operation
-
Weight:
-
7T
-
Application:
-
make screw blade or harvest machine or conveyor
-
Type:
-
Hydraulic and Mechanical
-
steel strip materials:
-
carbon steel, SS304
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Heng yuan
-
Weight (KG):
-
7000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
shaft less spiral blade screw machine
-
Roller materials:
-
Alloy, anti-wearing
-
Color:
-
Blue, green,
-
Power:
-
33KW
-
Operation way:
-
Automatic Control Operation
-
Weight:
-
7T
-
Application:
-
make screw blade or harvest machine or conveyor
-
Type:
-
Hydraulic and Mechanical
-
steel strip materials:
-
carbon steel, SS304

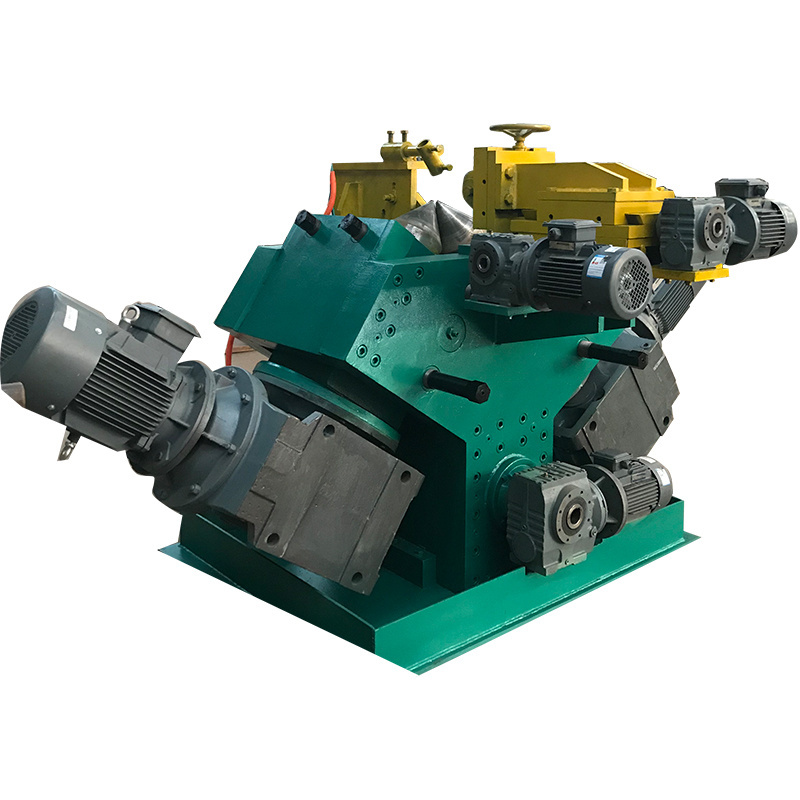

Grain conveyor shaft less screw flight forming machine
1.Brief Introduction for Shaftless Spiral Blade Making Machine
Shaftless Spiral Blade Making Machine are the second generation Semi-active Spiral Blade Cold Rolling Mill products, which researched and developed by our company's practical experience.
HY series of products are the advanced equipment for producing spiral blade, which use the strip steel as the raw material and make continuous rolling operation. Compared with conventional cold forming practices which is used current widely, it just needs do some simple adjustments on the equipment's adjustable parts (don't need replace parts), like the device dials and pressure gauges, and then roll out various kinds of spiral blades required. This series of products have the advantages of flexibility to adjust the production specification, high efficiency production, saving raw materials, high leaf hardness and good wear resistance.
Hydraulic Type
Mechanical Type
2.The Technical Parameter of Shaftless Spiral Blade Making Machine
|
Model |
HY-270 |
HY-350 |
HY-400 |
|
|
////// |
Working mode |
Mechanical |
Mechanical |
Hydraulic |
|
I |
The thickness of rolled strip |
2-5mm |
2 -6mm |
2-10mm |
|
W |
The width of the strip rolling |
≤ 90mm |
≤1 3 0mm |
≤ 150 mm |
|
d |
ID |
25-90mm |
25 -200mm |
20-500mm |
|
D |
OD |
90-270mm |
90-3 50 mm |
90-800mm |
|
P |
pitch of screw thread |
80-230mm |
80-300mm |
80-350mm |
|
/////// |
Main motor working speed |
1440r/min |
1440 r/min |
1440r/min |
|
////// |
Shearing mode |
Hydraulic cutter |
Hydraulic cutter |
Hydraulic cutter |
|
///// |
Main Power |
19kw |
19kw |
34kw |
|
///// |
Gross Weight |
5.2tons |
6tons |
7tons |
3.The Function and Main Structure of Shaftless Spiral Blade Making Machine
The auger blade cold rolling mill machine which is with function with electrical, hydraulic cutter, mechanical and automation equipment with high precision and stability.
A continuous spiral blade roller can produce different specifications, spiral blade thickness uniformity, small size error.
Spare parts: hydraulic cutter and motor.
About Our Factory
Our factory located in Gongyi, near Zhengzhou, Henan Province in China.
Our main markets is Bulgaria, Canada, Argentina, Brazil, Malaysia, India, Vietnam, Kenya, South Africa.
Our goods get good comments from our clients. Our principle is to offer best price of goods with best quality.
We are specialized in supplying the following products
:
1)
Inverted vertical type w
ire drawing machine
;
2)Steel bend/cut machine, automatic wire straightener cutter;
3)Hot/cold rolling machine, like Shaftless Spiral Blade Making Machine.
If you have any questions for shaftless spiral blade making machine , please contact me freely.
