Quick Details
-
Model Number:
-
10 Pos Rotary Switch
-
Max. Current:
-
50mA
-
Mechanical Life:
-
20000
-
Item name:
-
Thru-hole Flat Rotor Real BCD Code 10 Position Rotary Dip Switch
-
Switching rating:
-
5VDC, 20mA
-
Sample:
-
offer free sample for test
-
Contact resistance:
-
100mΩ max
-
Insulation resistance:
-
1000MΩ Min.at100VDC
-
Dielectric strength:
-
250VAC/1 minute
-
Operating force:
-
250g/cm
-
Operation temp:
-
-40℃--+85℃
-
Positons:
-
10 position
-
Pins:
-
4+1 =5 Pins
Quick Details
-
Max. Voltage:
-
24VDC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EKER
-
Model Number:
-
10 Pos Rotary Switch
-
Max. Current:
-
50mA
-
Mechanical Life:
-
20000
-
Item name:
-
Thru-hole Flat Rotor Real BCD Code 10 Position Rotary Dip Switch
-
Switching rating:
-
5VDC, 20mA
-
Sample:
-
offer free sample for test
-
Contact resistance:
-
100mΩ max
-
Insulation resistance:
-
1000MΩ Min.at100VDC
-
Dielectric strength:
-
250VAC/1 minute
-
Operating force:
-
250g/cm
-
Operation temp:
-
-40℃--+85℃
-
Positons:
-
10 position
-
Pins:
-
4+1 =5 Pins

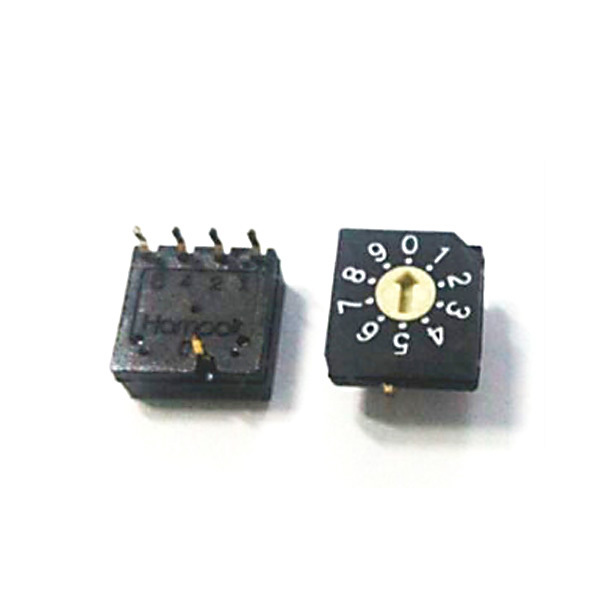

RS40010R 4+1 Pins Thru-hole Type Flat Rotor Real BCD Code 10 Position Rotary Dip Switch
Advantages:
- 1. Offer free sample.
- 2. 15+ years OEM&ODM.
- 3. Supply 1000000+ pcs per month.
- 4. Using high quality BeCu and LCP materials.
- 5. Long lifespan, high strength, abrasion resistance, excellent thermal stability, etc.
Product Description
| Item Name | RS40010R 4+1 Pins Thru-hole Type Flat Rotor Real BCD Code 10 Position Rotary Dip Switch |
| Number of Position | 10 position |
| Type | BCD Code Rotary Switch |
| Model Number | RS4 Series |
| BCD Code Type | Real/Complementary |
| Operation Force | 350gf/cm |
| Waterproof | IP67 |
| Terminal Type | Through Hole |
If need more information, please contact us to get the datasheet.
