Quick Details
-
Brand Name:
-
Walker
-
Product name:
-
Mixing Tank Mining
-
Advantage:
-
High Working Effiency
-
Color:
-
Customer's Request
-
Usage:
-
Mining Separation
-
Function:
-
Screening\separation\sorting\sieving
-
Certificate:
-
ISO CE
-
Feature:
-
Long Service Life
-
Application:
-
Ore
-
Quality:
-
High Level
-
After-sales service:
-
Life-long Time
Quick Details
-
Weight (KG):
-
500
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Walker
-
Product name:
-
Mixing Tank Mining
-
Advantage:
-
High Working Effiency
-
Color:
-
Customer's Request
-
Usage:
-
Mining Separation
-
Function:
-
Screening\separation\sorting\sieving
-
Certificate:
-
ISO CE
-
Feature:
-
Long Service Life
-
Application:
-
Ore
-
Quality:
-
High Level
-
After-sales service:
-
Life-long Time
Product Description

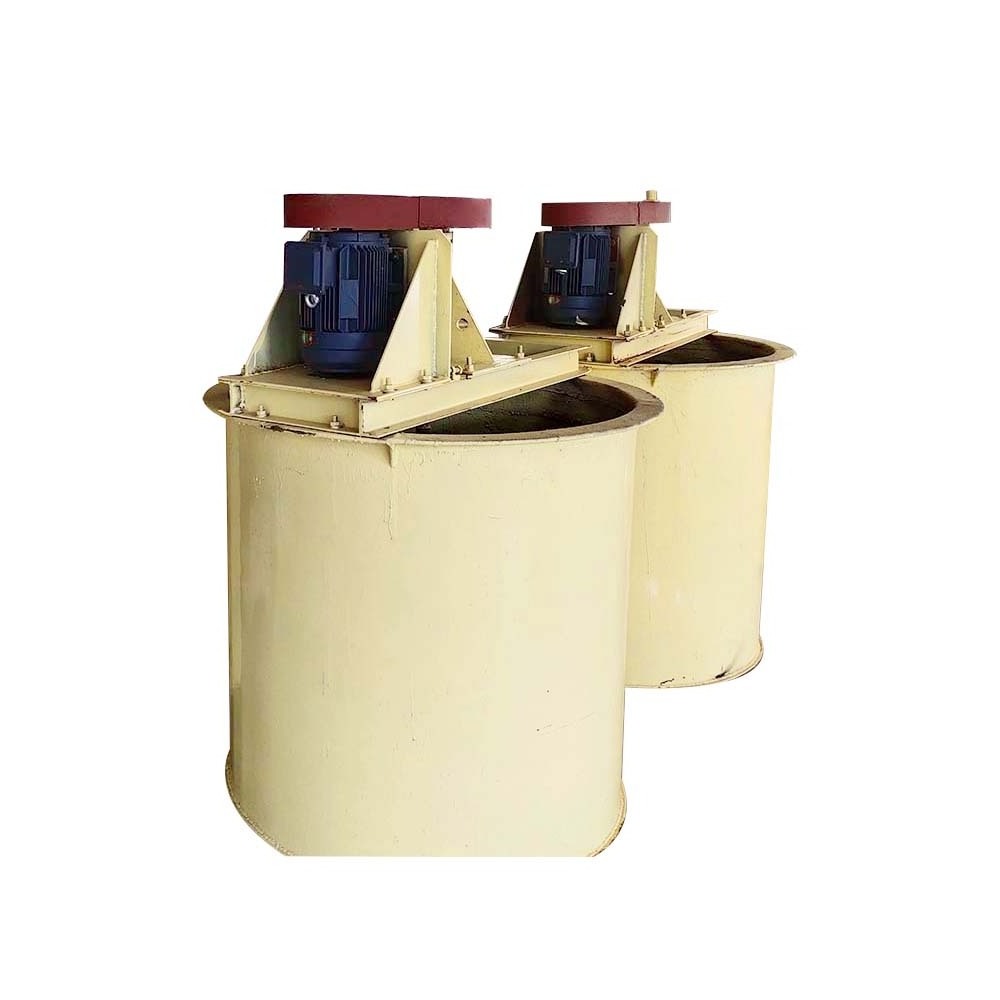

Product Introduction
Agitator is mainly used to mix slurry before flotation in the beneficiation process. It can mix drug and slurry completely. It is suitable to mix slurry with density smaller than 30 % (weight ratio) and size smaller than 1mm.
Working Principle
Mine mixing tank the equipment that is driven by the motor V-belt to rotate the impeller making drugs and pulp mixed,increasing reaction time enhancing quality. Mine mixing barrel is not only applicable to the selected mining, but also to various chemical industries.
Product display
Advantages and Features
1.
Simple structure, easy adjustment;
2.
High efficient, less power consumption;
3.
Reliable operation and easy maintenance;
4.
Uniform mixing, better dispersion;
5.
The impeller is the designed into a pileus type, agitating and cycling ability to pulp and chemicals is improved.
Product Technical Data
|
Model
|
XB1000
|
XB1500
|
XB2000
|
XB2500
|
XB3000
|
XB3500
|
|
Diameter of tank(m)
|
1
|
1.5
|
2
|
2.5
|
3
|
3.5
|
|
Height(m)
|
1
|
1.5
|
2
|
2.5
|
3
|
3.5
|
|
Volume of tank(m3)
|
0.58
|
2.2
|
5.46
|
11.2
|
19.1
|
30
|
|
Impeller diameter(m)
|
0.24
|
0.4
|
0.55
|
0.65
|
0.7
|
0.85
|
|
Impeller speed(r/min)
|
530
|
320
|
230
|
200
|
210
|
230
|
|
Power(kw)
|
1.1
|
3
|
5.5
|
18.5
|
22
|
30
|
|
Weight(t)
|
0.44
|
1.08
|
1.67
|
3.44
|
4.61
|
7.28
|
More Model Please Contact Us,the Model Also Can Be Customized！
Successful Cases
We have more than 35 years of experience in mining equipment production and can provide a full range of mining equipment from crushing to beneficiation. We have professional engineers who can design the process for you and can provide field guidance for installation services.
Here are some of our success stories.
Welcome to inquire!
Packing&Delivery
◆ Ways of packing
1.Small parts packed in the wooden cases2.Big parts packed by plastic membrane
3.The whole big machine is loaded in the container
◆ Shiping by sea/air freight
1. Usually our mining machines are shipped in 40'HQ or Flat Containers by sea.
2. Our mining equipments can be also shipped by air if customers request.
About Company
Jiangxi walker Machinery Co.,Ltd, are a professional manufacturer of complete set mining equipments, a sub-company of JXSC mine machinery factory in Jiangxi province.professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.
Our core advantages as below:
1.+30years history factory at mining machinery
2.Provide engineer team after sale service
3.Provide complete set mineral processing plant
4.Provide sample testing service in factory lab for free
5.Provide professional ming soolution consulting
*Inquiry and consulting support
*Ore sample testing support
*View our Factory
*Design Flowchart
*Ore sample testing support
*View our Factory
*Design Flowchart
* Training how to instal the machine, training how to use the machine.
* 1 year warranty
* Engineers available to service machinery overseas.
FAQ
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we
made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our
price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice;Finished product pictures will be provided to customers before delivery.
If you are interested in our products, please don't hesitate to contact us. Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
1. Which machine do you need? Lab spiral chute,Lab vibrating screen, Lab Jig separator, Lab Shaking table, etc.
2. What is your raw ore that you plan to process? like gold ore, diamond ore, tantalite or silica sand, etc.
3. What is the capacity you need? Like 100kg per hour.
4. What is the feeding size to the machine? and what is the discharging-material size that you require?
Sincerely welcome to send your inquiry,you can get best quotation and professional service.
