Quick Details
-
Input::
-
4*H DMI + Mic + Audio
-
Output::
-
1* H DMI PVW + 1*H DMI PGM
-
Switching::
-
PGM, CUT, Auto Transition
-
Support:
-
PIP PVW PGM; RGB background cutout;
-
Chroma Key:
-
Support
-
Video encoding:
-
MPEG-4 AVC/H.264
-
Resolution:
-
1080P 60fps
-
Size/Weight:
-
28.6 x 15 x 10cm / 1.15KG
-
live streaming:
-
4 platforms at the same time
-
Warranty:
-
2 Years
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zoomking
-
Model Number:
-
ZMKMS04
-
Input::
-
4*H DMI + Mic + Audio
-
Output::
-
1* H DMI PVW + 1*H DMI PGM
-
Switching::
-
PGM, CUT, Auto Transition
-
Support:
-
PIP PVW PGM; RGB background cutout;
-
Chroma Key:
-
Support
-
Video encoding:
-
MPEG-4 AVC/H.264
-
Resolution:
-
1080P 60fps
-
Size/Weight:
-
28.6 x 15 x 10cm / 1.15KG
-
live streaming:
-
4 platforms at the same time
-
Warranty:
-
2 Years

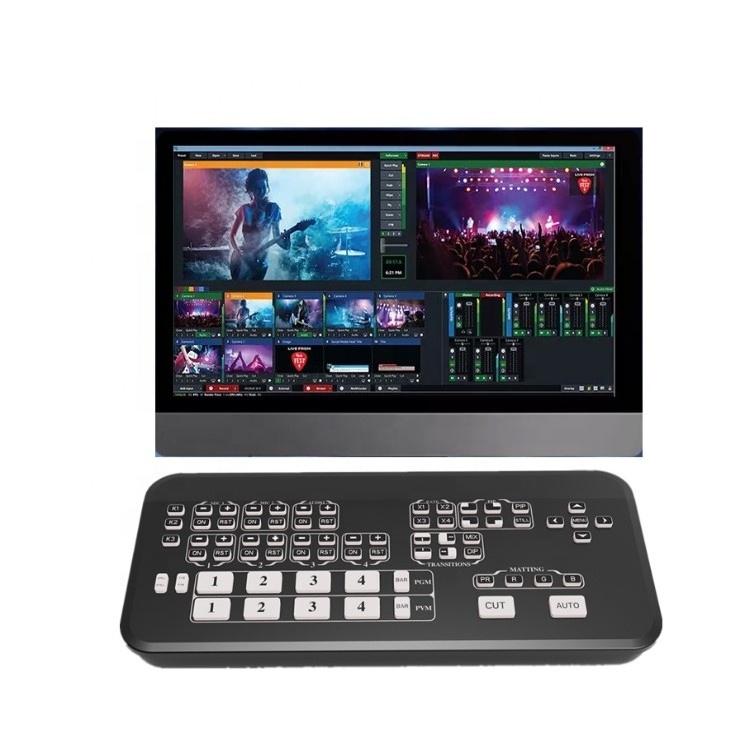

4CH H DMI Live Streaming Switcher 1080p for Broadcast Switch Live Streaming Video Control Support 2 Microphone input
| Product name | HDMI Live Streaming Switcher |
| Intput | 4*HDMI + Mic + Audio |
| Output | 1* HDMI PVW + 1*HDMI PGM |
| Video encoding | MPEG-4 AVC/H.264 |
| Resolution | 1080p60/1080p50/1080p30/1080p25/1080p24 |
| Support system | Windows / MacOS |
| Support | PIP PVW and PGM ; RGB background cutout; |
| Wideo capture software | OBS, vMix, VLC, PotPlaYer and other market software |
Features:
-HDMI input signal is automatically adapted for above 720P resolution, 1080P output signal resolution can be selected according to requirements(1080p60/1080p50/1080p30/1080p25/1080p24), which is quite flexible.
- Support PIP for PVW and PGM , support adjust the window size and position, and support screen freeze.
- Support RGB(Red, Green or Blue) background cutout ; and can adjust the tint according to the shade of the studio filter's background color in software.
- Support hard-cutting with CUT key and AUTO special effect switch ,and the transition speed can be adjusted with RATE keys(X1, X2, X3, X4).
- TRANSITIONS :
Picture details instructions:
RGB Matting
RGB one click chroma key
Operation: Press the PR enable key, then press the G(green) key, the PGM signal source is background, and the PVW signal is the keying source, and the overlay effect can be achieved.
Preview Monitor
PIP Function
Special effect transition
- Example of four direction effects
