- Product Details
- {{item.text}}
Quick Details
-
Power:
-
55kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HENG WNAG
-
Maximum Digging Height:
-
3150mm
-
Maximum Digging Depth:
-
2100mm
-
Max Digging Radius:
-
3915mm
-
Rated Speed:
-
5.5km/h
-
After-sales Service Provided:
-
Overseas service center available, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
-
Product name:
-
Mini wheel 2.5ton 3ton Backhoe loader supplier
-
Type:
-
Mini wheel 2.5ton 3ton Backhoe loader supplier
-
Engine:
-
Diesel Engine
-
Location:
-
Shanghai Yard
-
Engine Power:
-
8.6kw/1800r/min
-
Rated Power:
-
8.6 Kw/1800r/min
-
Color:
-
Customized
-
Overall Dimensions:
-
3135x850x1960 Mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Certification:
-
ISO9001 CE
Quick Details
-
Operating Weight:
-
6000kg
-
Bucket capacity:
-
0.8m3
-
Engine Brand:
-
YUNNEI
-
Power:
-
55kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HENG WNAG
-
Maximum Digging Height:
-
3150mm
-
Maximum Digging Depth:
-
2100mm
-
Max Digging Radius:
-
3915mm
-
Rated Speed:
-
5.5km/h
-
After-sales Service Provided:
-
Overseas service center available, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
-
Product name:
-
Mini wheel 2.5ton 3ton Backhoe loader supplier
-
Type:
-
Mini wheel 2.5ton 3ton Backhoe loader supplier
-
Engine:
-
Diesel Engine
-
Location:
-
Shanghai Yard
-
Engine Power:
-
8.6kw/1800r/min
-
Rated Power:
-
8.6 Kw/1800r/min
-
Color:
-
Customized
-
Overall Dimensions:
-
3135x850x1960 Mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Certification:
-
ISO9001 CE
Product Description

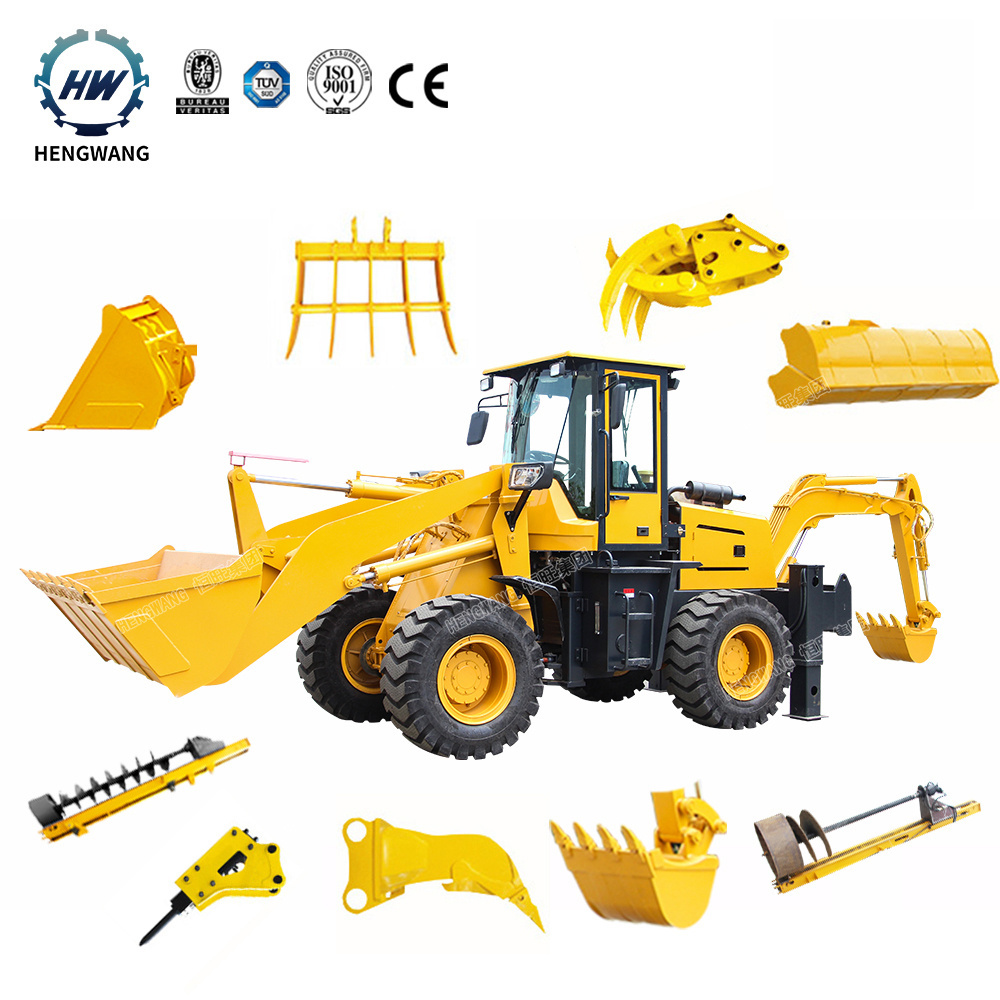

Backhoe Loader is mainly used for small-scale engineering operations such as afforestation, agriculture and animal husbandry construction, channel construction, sewer cleaning, water channel dredging, clean-up and reloading in factories and mines, and is widely used in small and medium-sized roadways with a width of 2 meters or more.
Specification
Mini tractor backhoe loader tractor with front end loader and backhoe
|
Model
|
HW08-12
|
HW10-20
|
HW15-26D
|
HW15-26
|
HW20-28
|
|
Bucket capacity
|
0.4m3
|
0.5m³
|
0.7m3
|
0.8m³
|
1m³
|
|
Digging up capacity
|
28KN
|
36KN
|
36KN
|
36KN
|
42KN
|
|
Loading rasing capacity
|
1000KG
|
1500KG
|
1800KG
|
1800KG
|
2300KG
|
|
Bucket discharge height
|
2200mm
|
2800mm
|
3200mm
|
3300mm
|
3500mm
|
|
Bucket discharge distance
|
800mm
|
800mm
|
800mm
|
800mm
|
900mm
|
|
Backhoe bucket capacity
|
0.08m3
|
0.1m³
|
0.15m3
|
0.15m³
|
0.2m³
|
|
Max. Digging depth
|
1500mm
|
2000mm
|
2400mm
|
2700mm
|
2600mm
|
|
Engine model
|
390
|
490
|
Huajie490
|
490
|
4102
|
|
Engine power
|
25KW
|
37KW
|
42KW
|
55KW
|
76KW
|
|
Minimum turning radius
|
3000mm
|
3500mm
|
4000mm
|
3500mm
|
4500mm
|
|
Max. speed
|
20km/h
|
0-25Km/h
|
26km/h
|
0-26Km/h
|
0-28Km/h
|
|
Bucket digging force
|
25KN
|
25KN
|
36KN
|
28KN
|
28KN
|
|
Brake
|
Oil brake
|
Oil brake
|
Air brake
|
Air brake
|
Air brake
|
Products Details
1 The digging part is
foldable
, which can not only slide left and right, but also can carry out digging work in different directions, with a large digging range;
2. The rear
digging arm
can be
slid to one side and folded up
, and it will not be affected in any way when using the loader;
3. The driving speed is fast, and
no trailer is needed
during the transition, which saves the capital investment of the trailer and reduces the customer's investment burden at the same time.
4. One busy at both ends =
one loader + one excavator
5.Our backhoe loader and passed
ISO , CE
certificate
Product Analysis
Backhoe loaders are very common and can be used for a wide variety of tasks: construction, small demolitions, light transportation of building materials, powering building equipment,
digging holes/excavation, landscaping, breaking asphalt, and paving roads
. In many occasions, the backhoe bucket can also be replaced with powered attachments such as a
breaker, grapple auger, or a stump grinder
.
