Quick Details
-
Power:
-
4k
-
Dimension(L*W*H):
-
1400*750*1300mm
-
Weight:
-
750kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Color:
-
Customized
-
Rolling material diameter:
-
5-30mm
-
Track roolers:
-
120-170mm
-
Hydraulic power:
-
2.2-4kw
-
Diameter rollers:
-
54mm
-
Cooling power:
-
90w
-
Maximum thickness of rollers:
-
100mm
-
Axis tilt angle:
-
3
-
Item:
-
Steel bar rod pipe bolt screw threading roll making machine
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
pt
-
Voltage:
-
380v
-
Power:
-
4k
-
Dimension(L*W*H):
-
1400*750*1300mm
-
Weight:
-
750kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Color:
-
Customized
-
Rolling material diameter:
-
5-30mm
-
Track roolers:
-
120-170mm
-
Hydraulic power:
-
2.2-4kw
-
Diameter rollers:
-
54mm
-
Cooling power:
-
90w
-
Maximum thickness of rollers:
-
100mm
-
Axis tilt angle:
-
3
-
Item:
-
Steel bar rod pipe bolt screw threading roll making machine
-
Certification:
-
ce
-
Professional and patient consulting service to help you find the suitable solution.
-
Further negotiation about the technical details, machine configuration, price basis, payment term and delivery time.
-
Powerful control of the machine production schedule and quality, and keep you posted about details in time.
-
Free training and accommodation in our plant during machine inspection. Or photos and video of the machine and package for your confirmation before shipment.
-
Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.
-
For technical support, we can help you online by email and phone, also we can send technicians to your site if necessary.
-
For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that.

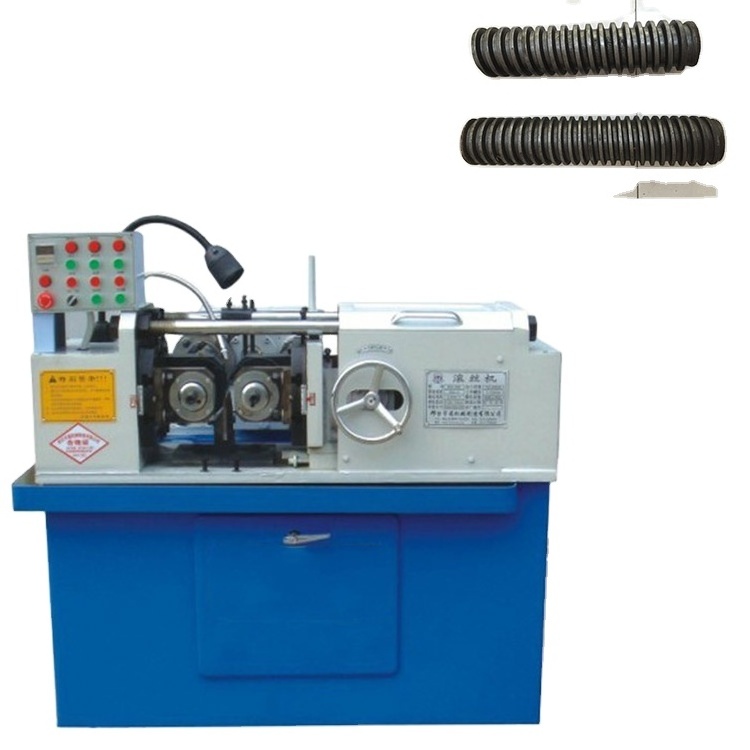

Steel bar rod pipe bolt screw threading roll making machine manufacture
Steel bar rod pipe bolt screw thread roll making machine manufacture is suitable for diameter 5-30mm workpiece to ruled, thread, twill in cooling Process and Assembly screw rolling wheel can be processed Fixed length screws and screw rod(teeth). The machine consists of welded steel plate, Reasonable structure, easy operation, reliable quality. The machine is best for production of non-standard screw, standard parts(bolt).
The features of Steel bar rod pipe bolt screw threading roll making machine manufacture
- Reasonable structure
- Easy operation
- Reliable quality
Main technical data of Steel bar rod pipe bolt screw threading roll making machine manufacture
| 1 | Rolling material diameter | Φ 5- Φ 30mm |
| 2 | Active power | 4kw |
| 3 | Track rollers | Φ 120 - Φ 170 mm |
| 4 | Hydraulic power | 2.2-4kw |
| 5 | Diameter rollers | Φ 54mm |
| 6 | Colling power | 90w |
| 7 | Maximum thickness or rollers | 100mm |
| 8 | Dimensions | 1480x1500x1050mm |
| 9 | Axis tilt angle | ± 3º |
| 10 | Total mass | 1100kg ±50kg |
| 11 | Spindle center distance | 120-240mm |
| 12 | Thread length | Unlimited |
1. What ’ s the price of threading rollers?
Re: Kindly please let me know your rod material and the detailed size, such as diameter and thread pitch, etc., so that we can check for you accordingly .
2. We have different rod diameter from 20-80mm, h ow to choose threading rollers?
Re: The threading roller will be suitable for various length and diameter, but for different thread pitch, it should be changed accordingly.
3. How to operate the thread rolling machine, assuming it has auto cycle and foot pedal?
Re: The thread rolling machine is equipped with button control panel and foot pedal, so the working cycle can be exchanged as automatic work or inching.
4. What ’ s the capacity of the thread rolling machine and what ’ s the serve life?
Re: The speed of thread rolling machine is about 1m/min.
Generally speaking, the roller can be used for more than 60000 meters long.
Also it is relevant to the material hardness and your operation.
5. Do you have customers in our country?
We are the leader thread rolling machine supplier in China, also we have customers worldwide, such as America, Argentina, Brazil, Belarus, Bangladesh, Germany, Israel, India, and Italy, etc.
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
