Quick Details
-
Brand Name:
-
Yucai
-
Model Number:
-
YC-K800
-
Measurement method:
-
Thermocouple differential detection
-
Measuring range:
-
room temperature to 400 ° C
-
Printer:
-
High speed thermal printer, 56 mm paper width
-
Ignition method:
-
automatic electronic ignition
-
Temperature detection:
-
imported precision platinum resistance
-
Display:
-
10 inch 65K(resolution 800*600) Chinese and English touch screen
-
Repeatability:
-
±4℃
-
Dimensions:
-
450*280*290mm
-
Power source:
-
AC220V±10%
-
Weight:
-
about 15 kg
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Yucai
-
Model Number:
-
YC-K800
-
Measurement method:
-
Thermocouple differential detection
-
Measuring range:
-
room temperature to 400 ° C
-
Printer:
-
High speed thermal printer, 56 mm paper width
-
Ignition method:
-
automatic electronic ignition
-
Temperature detection:
-
imported precision platinum resistance
-
Display:
-
10 inch 65K(resolution 800*600) Chinese and English touch screen
-
Repeatability:
-
±4℃
-
Dimensions:
-
450*280*290mm
-
Power source:
-
AC220V±10%
-
Weight:
-
about 15 kg
Product Overview

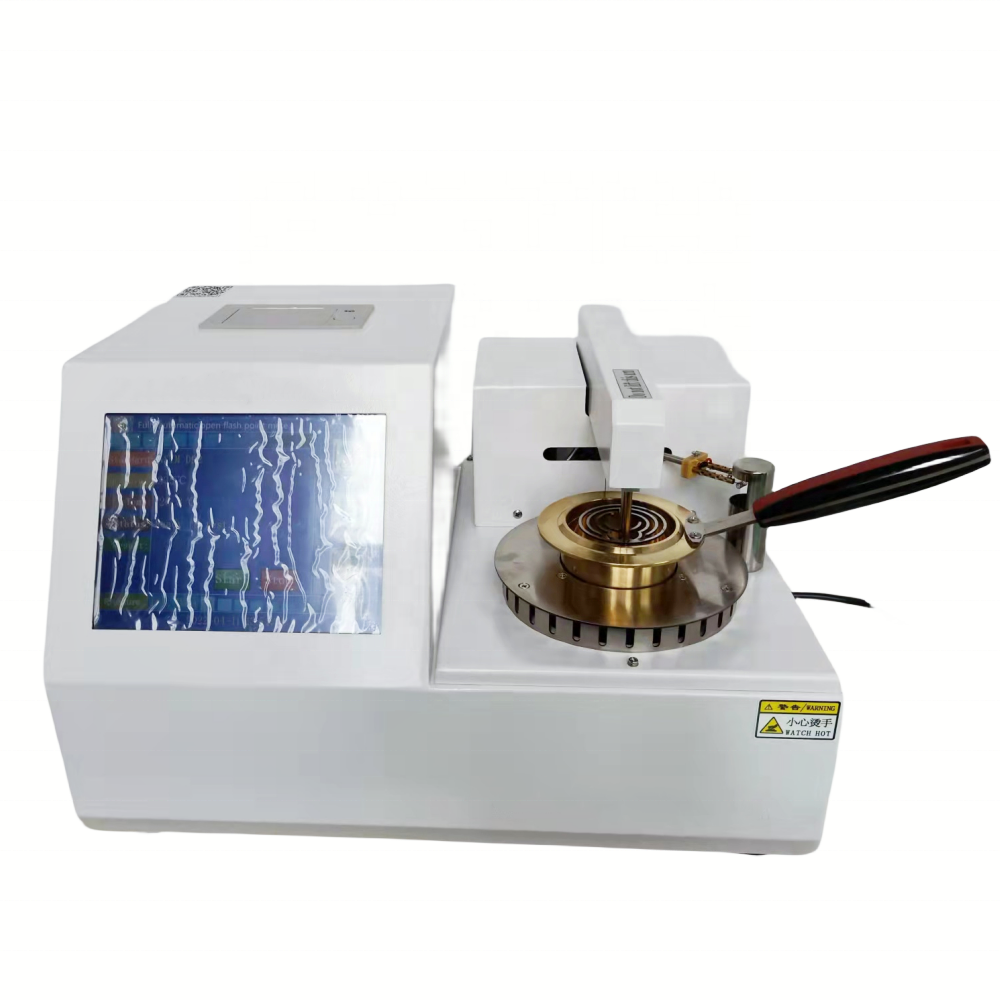

YC-K800
:
Fully Automatic Open Cup Flash Point Tester for Safety Precision Petrochemical Analysis
YC-K800 automatic open flash ignition point meter is manufactured according to GB267 "Petroleum product flash point and ignition point measurement method (open cup method)", GB3536 "Petroleum product flash point and ignition point measurement method (Cleveland open cup method)" standard method, It is an ideal instrument for performing flash point testing in petroleum, chemical, electric power, environmental protection, railway, scientific research and other fields.
FEATURES AT A GLANCE
1. Adopt high-speed signal processor control, adaptive PID control algorithm, and automatically adjust the heating curve according to standard requirements.
2. Built-in atmospheric pressure automatic detection chip, automatic measurement of atmospheric pressure, automatic correction of flash point value.
3. Data storage function, can store 300 results, and check the history at any time.
4. Differential detection, automatically correct system deviation and stop detecting and alarming when the temperature exceeds the value.
5. The instrument automatically completes lifting, stirring, ignition, detection, alarm, cooling, and printing.
6. Safe airless source, platinum alloy electric heating wire ignition mode, safe, stable, reliable, high test accuracy.
PRODUCT SPECIFICATIONS
|
Item
|
Value
|
|
Display
|
10 inch 65K(resolution 800*600) Chinese and English touch screen
|
|
Measurement method
|
Thermocouple differential detection
|
|
Measuring range
|
room temperature to 400 ° C
|
|
Repeatability
|
±4℃
|
|
Printer
|
High speed thermal printer, 56 mm paper width
|
|
Ignition method
|
automatic electronic ignition
|
|
Temperature detection
|
imported precision platinum resistance
|
|
Self-test function
|
printer, igniter, solenoid valve, detection arm lift, ignition rod sweep, etc.
|
|
Dimensions
|
450*280*290mm
|
|
Power source
|
AC220V±10%
|
|
Weight
|
about 15 kg
|
Product packaging
