Semi fully automatic food coal laboratory heat capacity oxygen bomb calorimeter price

Semi fully automatic food coal laboratory heat capacity oxygen bomb calorimeter price

FOB Reference Price: Get Latest Price

≥1 Sets

US $2525

≥5 Sets

US $2350

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: NANBEI

Model Number:: XRY-1A, XRY-1A

Heat capacity:: (14000 ~ 15000)J/K

Temperature resolution:: 0.001 K

Pressure endured by Oxygen bomb:: 20 MPa

Power supply:: AC(220±5%)V,50Hz

Function:: heat capacity oxygen bomb calorimeter

Repeatability error:: ≤0.2% (Grade C);

Dimensions:: 600*460 * 430 mm

Certification:: ISO

Quick Details

Warranty:: 1 year

Power:: Electronic

Place of Origin:: Henan, China

Brand Name:: NANBEI

Model Number:: XRY-1A, XRY-1A

Heat capacity:: (14000 ~ 15000)J/K

Temperature resolution:: 0.001 K

Pressure endured by Oxygen bomb:: 20 MPa

Power supply:: AC(220±5%)V,50Hz

Function:: heat capacity oxygen bomb calorimeter

Repeatability error:: ≤0.2% (Grade C);

Dimensions:: 600*460 * 430 mm

Certification:: ISO

Products Description

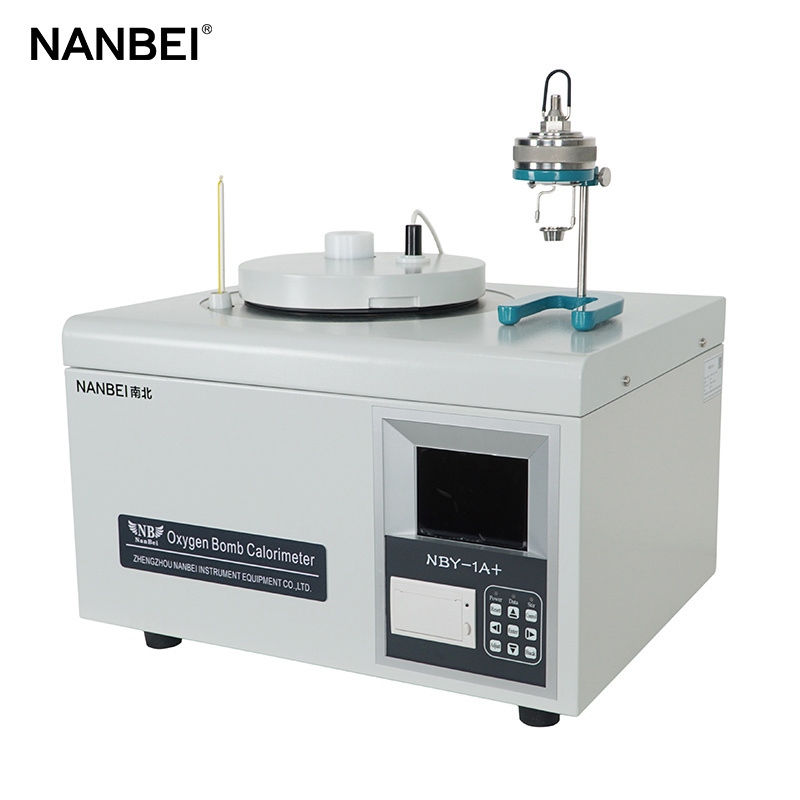

Laboratory semi fully automatic heat capacity oxygen bomb calorimeter price

Oxygen bomb calorimeter is calorimeter in the combustion system with oxygen as a combustion agent combustion calorimeter.
The heat capacity of the instrument is 14400 J/K~14500 J/K, and it is suitable to determine calorific value of combustible materials such as petroleum products without water (gasoline, jet fuels, diesel oil and fuel oils, etc.), coal, and paraffin, etc.

The oxygen bomb calorimeter instrument controlled by the computer, can automatically complete the calorific value of flammable substances testing automation, intelligent instruments for the upgrade of the model instruments. It can be widely used to measure the calorific value of flammable substances such as coal, oil, and paraffin. It is an ideal choice for all related industries and departments in the fields of thermoelectricity, coal, metallurgy, building materials, chemical industry and foodstuffs.

Feature

Laboratory semi fully automatic heat capacity oxygen bomb calorimeter price

1. This instrument adopts sealed oxygen bomb. The whole structure adopts stainless steel material. The strength is enough to resist the max pressure (60~70 atmospheric pressure) when the solid burning. And it can resist the bigger pressure when liquid fuel burning.
2. The inner water cylinder is composed of stainless steel sheet.The cross section is pyriform and the capacity is 3kg. The water cylinder is equipped with electric stirrer inside. It ensures the temperature in the water cylinder uniform.
3. The external water jacket is double layer container. It filled with water when doing determination.It make the water temperature in the cylinder uniform by water jacket stirrer and form the constant temperature environment meeting the requirements of test.

Specification

Heat capacity	14400 J/K~14500 J/K
Resolution	0.001 K
Measurement accuracy	± 60J/g
Repeatability	≤0.2% (Grade C)
Pressure endurance of oxygen bomb	20 MPa
Temperature measurement range	10 ℃~35 ℃
Ambient temperature	20±5 ℃, the fluctuation is not more than 1℃ during a test
Data saved	31 pieces
Relative humidity	≤85%
Power supply	AC 220V±5%, 50 Hz
Dimension	600mm×460mm×430mm
