HDMI Switch USB3.0 Capture Card 4k 60hz Input 3x1 USB3.0 Capture/ HDMI Switch 4K 30hz Output Support HDCP2.2

HDMI Switch USB3.0 Capture Card 4k 60hz Input 3x1 USB3.0 Capture/ HDMI Switch 4K 30hz Output Support HDCP2.2

FOB Reference Price: Get Latest Price

≥50 Pieces

US $17

≥100 Pieces

US $15

≥500 Pieces

US $14.5

≥10000 Pieces

US $13.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: USB3.0 Capture/ HDMI Switch

Quick Details

Model Number:: JL-HVC05

Brand Name:: justlink

Place of Origin:: Guangdong, China

Product name:: USB3.0 Capture/ HDMI Switch

Product Description

1. Introduction
HDMI to USB3.0 Video Capture Dongle, it is easy to carry, have a superior performance,superior compatibility, simple installation and many other features. It can capture one HDMI 4Kp60 input ,output HDMI 4Kp60 and USB 1080p60 signals. The HDMI video capture
meets UVC and UAC standard, without having to install drivers and settings, the real PnP, easy to use.

2. Package
USB3.0 Capture HDMI 4Kp60 Box-----------------1Pcs
IR Remote-control unit-------------------------------1Pcs
USB3.0 to Type-c connector-------------------------1Pcs
USB3.0 Cable--------------------------------------------1Pcs
HDMI Cable----------------------------------------------1Pcs
USB Power Cable---------------------------------------1Pcs
User manual---------------------------------------------1pcs

3. Feature
It doesn't need to install a driver, and it is truly PnP.
It is compatible with Windows, Linux, OS X operating systems
USB3.0, 480MB/s throughput and it is compatible with USB 2.0
The process of video and audio is done by the dongle and will not occupy the CPU.
It can capture one single channel HD HDMI video signals.
It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
Support HDMI 2.0b and HDCP 2.2.
Support MIC input and audio output.
Support HDMI loop output 4Kp60.

4. Specification
Host Interface USB3.0, *480MB/s,
USB2.0, *40MB/s

Input Interface HDMI interface HDMI Input Formats:480i,480p,576i,576p,720p,1080i,1080P,4Kp30,4Kp60
HDMI Output Formats:480i,480p,576i,576p,720p,1080i,1080P,4Kp30,4Kp60

USB3.0 Output Formats

Resolutions:

640x480/720x480/720x576/768x576/800x600/1024x768/1280x720/1280x800/1280x960/1280x1024/1368x768/1440x900/1600x1200/1680x1050/1920x1080/1920x1200/640x360/856x480/960x540/1024x576
Frame Rate:30/40/48/50/59.94/60 fps
Size:113x56x18 (L/W/H, mm)
Weight:125g

Power consumption <= 2.5W
Working Temperature 0-50 deg C
Storage Temperature -20-70 deg C
Storage Humidity 5%-90%

5. Connect and Operate

1.Connect the signal sources such as Blu-Ray Player, Play Station , audio/video receiver, satellite receivers with HDMI output interfaces with a HDMI cable to the device HDMI input

2. Insert the USB3.0 cable head to USB3.0 interface, the other side of the cable into your computer's USB3.0 interface.
3. HDMI to USB3.0 Video Capture Dongle is based on UVC (USB video class), UAC(USB audio class)STANDARD, without having to install drivers and settings.After installation in operating system, the relevant video and audio devices will be added on. In Windows, for example, will have new image device:

USB3.0 HD Video Capture ;

USB3.0 HD Audio Capture ;

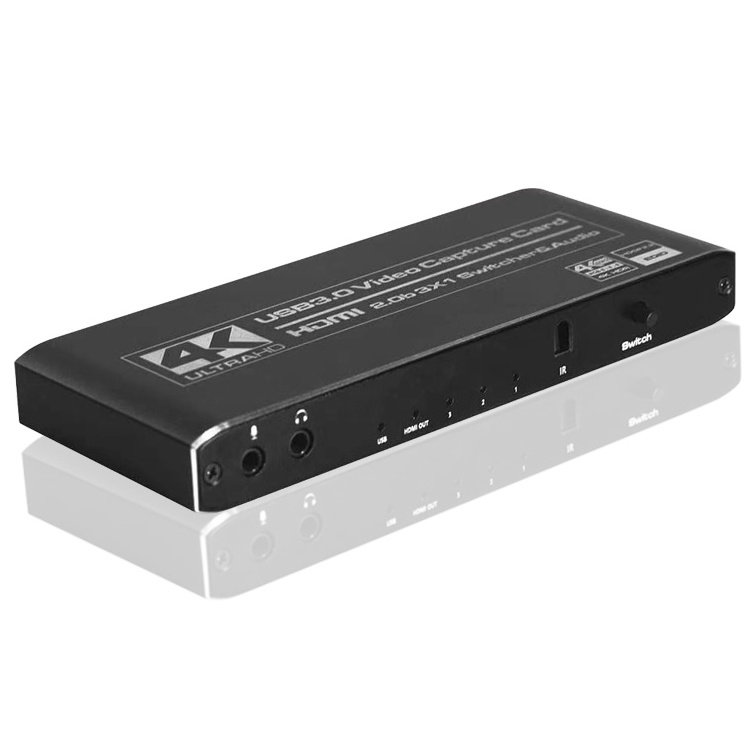

1→Connect the microphone.
2→Connect the headphone.
3→Power Red Light.
4→HDMI in1 green light.
5→HDMI in2 green light.
6→IR receiver.
7→HDMI IN1 or IN2 switch.
