PC/UPC is generally blue, APC is green
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Silink/OEM
-
Use:
-
FTTH
-
Warranty Time:
-
1 year
-
Product name:
-
Fiber Optic PLC Splitter
-
Wavelength:
-
1260-1650nm
-
Connector Type:
-
SC UPC APC
-
Application:
-
FTTH FTTB FTTX PON CATV
-
Fiber Type:
-
G657A
-
Operating temperature:
-
-40~+85
-
Keywords:
-
Steel Tube Splitter
-
Package:
-
Standard Package
-
Service:
-
OEM ODM
-
Certification:
-
ISO9001/RoHS
Quick Details
-
Type:
-
PLC splitter
-
Model Number:
-
PLC-108MT
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Silink/OEM
-
Use:
-
FTTH
-
Warranty Time:
-
1 year
-
Product name:
-
Fiber Optic PLC Splitter
-
Wavelength:
-
1260-1650nm
-
Connector Type:
-
SC UPC APC
-
Application:
-
FTTH FTTB FTTX PON CATV
-
Fiber Type:
-
G657A
-
Operating temperature:
-
-40~+85
-
Keywords:
-
Steel Tube Splitter
-
Package:
-
Standard Package
-
Service:
-
OEM ODM
-
Certification:
-
ISO9001/RoHS
Product Description

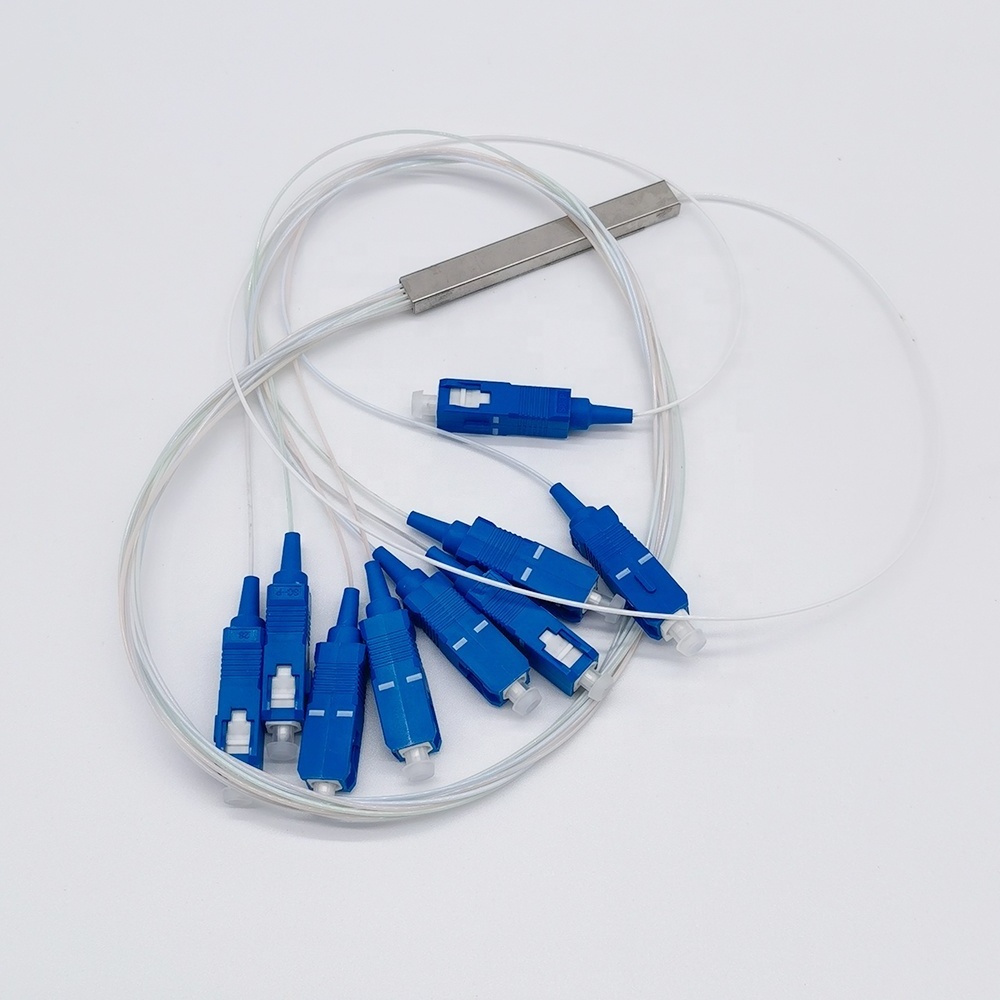

Mini Steel Tube FTTH PLC Fiber Optic Splitters
1x8 SC UPC APC Fiber Optic PLC Splitter / Coupler
Description
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.
A fiber optic splitter is a passive optical device that can split or separate an incident light beam into two or more light beams.These beams may or may not have the same optical power as the original beam, based on the configuration of the splitter. By means of construction, the outputs of a optical splitter can have varying degrees of throughput, which is highly beneficial when designing optical networks, whether the optical splitter is used for network monitoring or for a loss budget in a passive optical network (PON) architecture. Generally, there are two types of fiber optic splitters, which are FBT splitters and PLC splitters.
Features:
1) Low Insertion loss
2) Low PDL
3) Compact Design
4) Good channel-to-channel uniformity
5) Wide Operating Wavelength:From 1260nm to 1650nm
6) Wide Operating Temperature: From -40°C to 85°C
7) High Reliability and Stability
Applications:
1) FTTX Systems
2) PON Networks
3) CATV Links
4) Optical Signal Distribution
Technical Specification
|
Parameters
|
1x2
|
1x4
|
1x8
|
1x16
|
1x32
|
1x64
|
|||||
|
Operating Wavelength(nm)
|
1260~1650
|
|
|
|
|
|
|||||
|
Fiber Type
|
G657A or customer specified
|
|
|
|
|
|
|||||
|
Insertion Loss (dB)
|
3.9
|
7.1
|
10.2
|
13.8
|
17.1
|
21.2
|
|||||
|
Loss Uniformity (dB)
|
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
2.0
|
|||||
|
Return Loss (dB)
|
55
|
|
|
|
|
|
|||||
|
Polarization Dependent Loss(dB)
|
0.2
|
|
|
0.25
|
0.3
|
0.35
|
|||||
|
Directivity (dB)
|
55
|
|
|
|
|
|
|||||
|
Wavelength Dependent Loss(dB
|
0.3
|
|
|
0.5
|
|
|
|||||
|
Temperature Stability(-40~85 °C )(dB)
|
0.4
|
|
|
0.5
|
|
|
|||||
|
Operating Temperature (°C)
|
-40~85
|
|
|
|
|
|
|||||
|
Storage Temperature (°C)
|
-40~85
|
|
|
|
|
|
|||||
Polish Type
PC suited for telecom operator equipment.
UPC suited for ethernet network equipment, devies, media converters and fiber switches.
APC suited for high bandwidth applications and long distance links, such as FTTX.
Detailed Images
Ordering information
Packing & Delivery
Packing
1.
Neutral packaging or our own brand packaging.
2.
Can be packaged according to customer requirements.
Payment
1,
T/T, Western Union, Paypal and so on.
Delivery
1,
International Express: DHL, FedEx, UPS, TNT, Aramex and so on.
2,
You also can choose your own shipping forwarder, please notify us in advance.
3,
Shipments are usually dispatched in 2-5 working days after received payment.
Our Service
OEM:
We can provide OEM services, and can design packaging, Logo, and labels according to customer requirements.
Warranty:
Fiber Optic Products 1 Year warranty
Our Advantages:
1. Advanced production and testing equipment.
2. Professional manufacturer, 100% tested.
3. Full compliance with ISO 9001 quality management system.
4. Our company has experienced professional R&D and Sales team.
5. Provide reliable solutions and satisfactory services.
6. Warmly services with careful attentions.
Our Company
Shenzhen Silink Technology Co., Ltd.
is a leading manufacturer and exporter specializing in fiber optical communications equipments,optical transceiver modules and network cabling products.
Optical transceiver modules:
SFP, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM,Media Converter and other special transceiver modules,which are compatible with Cisco, 3COM, H3C, HP, Alcatel-Lucent, Allied Telesis, Nortel, Juniper, Huawei,etc.
Network cabling products:
Keystone jack,patch panel,patch cord,faceplate,etc.
Fiber optical communications equipments:
Fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc.
These products are widely used in telecommunications, broadband, broadcast, CATV and network industry
FAQ
1. Are you the real factory? Answer: we are the real factory with 10 years’ history. 2. Can you supply OEM products under our brand? Answer: Yes, sure. We can supply OEM products with OEM package, but it will need MOQ to print your brand. 3. Product quality guarantee period? Answer: 3 years 4. Do you have certificate for raw material? Answer: build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers. 5. MOQ: what is your minimum quantity? Answer: Our MOQ is 100 pieces per item. Free samples can be sent for your quality evaluation. 6. Do you have distributor in other country? Answer: no, we sell our products to customers directly. And factory price could be offered. 7, What is the lead time? Answer: For usual products,We keep stock,could ship 1-3 days after PO.For big quantity and special products,Please check lead time with our sales representative. 8, What is your payment terms? Answer: T/T, Western union, Paypal. 9, What is the shipping terms? Answer: We usually ship by Aramex, Fedex, DHL, UPS, TNT and EMS. If you have another preferred carrier, please notify us in advance.
