Quick Details
-
Material:
-
Galvanized Steel
-
Function:
-
Inspect the air duct
-
Shape:
-
Rectangle
-
Application:
-
Mounted inside square and rectangular duct work
-
Latches:
-
Positive camlock
-
Free sample:
-
Available
-
Package:
-
Standard Package
-
Color:
-
Material color
-
Feature:
-
Easy Installation
-
Name:
-
HVAC Access Panel Door
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hongrui
-
Model Number:
-
Access door
-
Material:
-
Galvanized Steel
-
Function:
-
Inspect the air duct
-
Shape:
-
Rectangle
-
Application:
-
Mounted inside square and rectangular duct work
-
Latches:
-
Positive camlock
-
Free sample:
-
Available
-
Package:
-
Standard Package
-
Color:
-
Material color
-
Feature:
-
Easy Installation
-
Name:
-
HVAC Access Panel Door
HVAC Access Panel Door for Rectangular Duct
Description
The access doors are designed for use on rectangular ducts.
Properties
- The access doors are manufactured from galvanized steel sheets.
- For big project, the material of stainless steel 304/316 is available when needed.
- The installation is easy.
- The frame has peripheral tabs, which are hammered on the inside surface of the ductwork.
- Air leakage tightness is enhanced by the gaskets between the frame and the duct,and between the cover and the frame.
- The access door cover is secured in place by a cam-lock mechanism.
Materials
Cam lock mechanism is made of steel, and the gaskets are made of neoprene.
Designed for inclusion in duct work, for access to dampers, duct cleaning inspection
and maintenance purposes. (Square and rectangular access doors with Tab type fixing).
Specifications
| Code Model | Face size(mm)(EXF) | Neck size(mm)(CXD) | Height(mm) |
| OAD1003 | 295X135 | 245X85 | 25 |
| OAD1006 | 295X205 | 245X155 | 25 |
| OAD1510 | 430X295 | 380X245 | 25 |
| OAD2015 | 555X425 | 505X375 | 25 |
| OAD2620 | 705X555 | 655X505 | 25 |

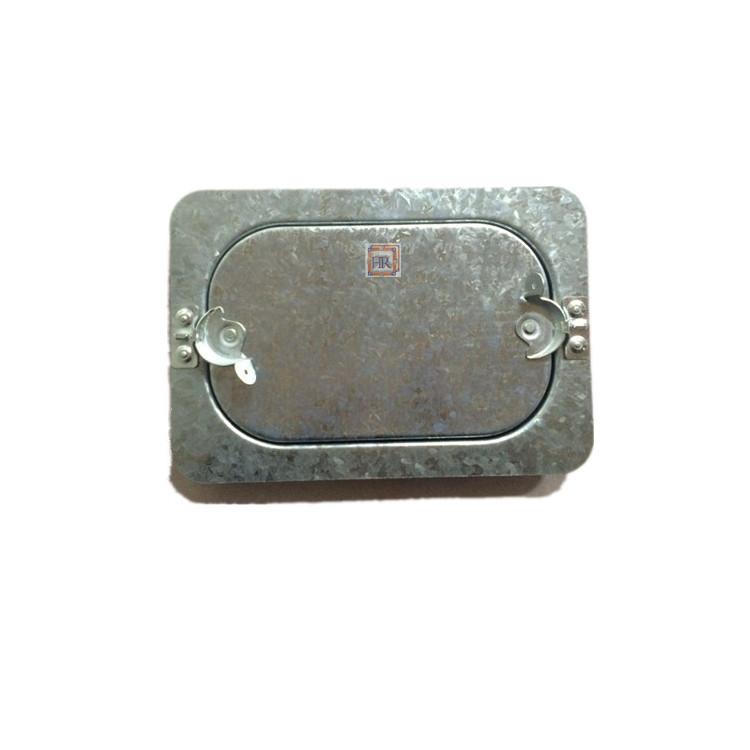

Product display
