Quick Details
-
Product name:
-
Automatic Robotic Solar Panel Cleaning System
-
Motor Power:
-
40KW
-
Operating Voltage:
-
12V
-
Transmission:
-
Hydraulic
-
Battery Capacity:
-
105Ah
-
Diesel Engine Capacity:
-
100L
-
Day Work Efficiency:
-
3~5MW
-
Cleaning Angle:
-
0~80°
-
Hydraulic Work Temperature:
-
50~70℃
-
Rotational Speed of Brush Roller:
-
400~500 rpm/min
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Solar Panel Cleaning Robot
-
Model Number:
-
A22
-
Product name:
-
Automatic Robotic Solar Panel Cleaning System
-
Motor Power:
-
40KW
-
Operating Voltage:
-
12V
-
Transmission:
-
Hydraulic
-
Battery Capacity:
-
105Ah
-
Diesel Engine Capacity:
-
100L
-
Day Work Efficiency:
-
3~5MW
-
Cleaning Angle:
-
0~80°
-
Hydraulic Work Temperature:
-
50~70℃
-
Rotational Speed of Brush Roller:
-
400~500 rpm/min
Automatic Robotic Solar Panels Cleaning System Solar Panel Cleaning Robot
Our Advantages

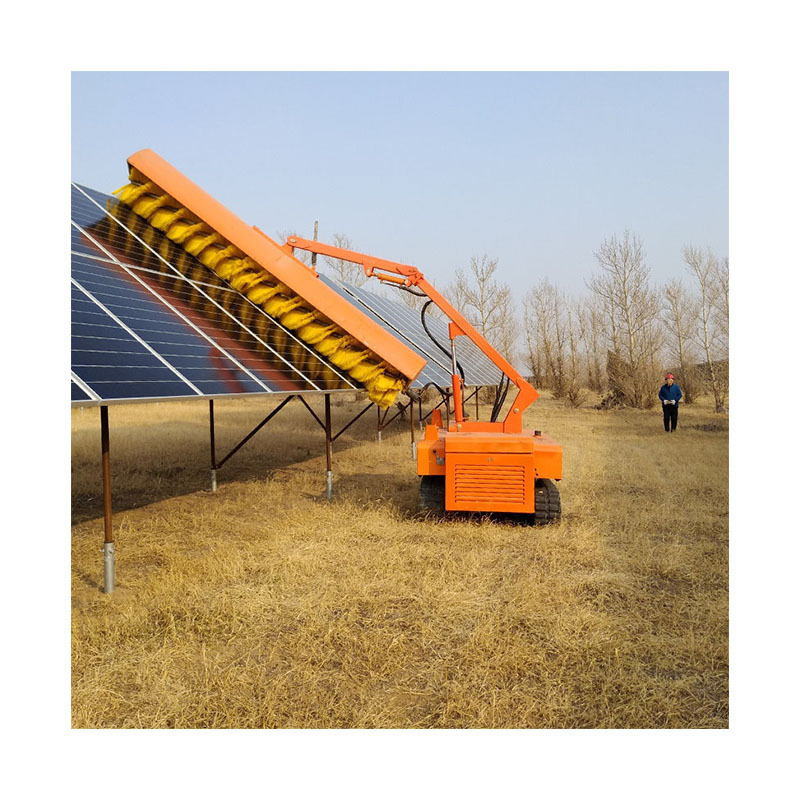

Solar Cleaning Machine A22 is an innovative automatic washing machine system for solar PV panels in large scale solar plants. One operator can do what 20 to 30 people currently do to wash clean and protect solar PV panels.
Before
After
The photovoltaic power stations are usually built on high terrain and abundant sunshine place, where usually have sandstorm and shortage of water resource. Therefore the dust and dirt can easily accumulate on solar panels.
On account of this practical situation of the photovoltaic power station and years of field investigation by our R&D department, we designed the new product, photovoltaic power station cleaning machine A22.
Application
Grassland
Gobi Desert
Saline-alkali Soil
Gully
Product Paramenters
|
Item
|
Unit
|
Technical Parameters
|
|
Motor power
|
KW
|
40
|
|
Maximum torque
|
N.m
|
≥152
|
|
Transmission
|
|
Hydraulic
|
|
Hydraulic work temperature
|
℃
|
50~70
|
|
Working pressure
|
MPa
|
13~15
|
|
Operating voltage
|
V
|
12
|
|
Battery capacity
|
Ah
|
105
|
|
Optimum speed of diesel engine
|
rpm
|
1300~1600
|
|
Diesel engine capacity
|
L
|
100
|
|
Oil consumption
|
L/h
|
4.2
|
|
Walking speed
|
Km/h
|
2.5~3.5
|
|
Working speed
|
Km/h
|
1.5~2.5
|
|
Climbing Capacity
|
°
|
>45
|
|
Day work efficiency
|
MWp
|
3~5
|
|
Maximum cleaning height
|
mm
|
4800
|
|
Minimum cleaning height
|
mm
|
200
|
|
Cleaning angle
|
°
|
0~80
|
|
Cleaning--arm extension size
|
mm
|
80~1300
|
|
Cleaning-arm rotation angle
|
°
|
180
|
|
Rotational speed of brush roller
|
rpm/min
|
400~500
|
|
Diameter of brush roller
|
mm
|
700
|
|
Length of bnush roller
|
mm
|
3600-4200
|
|
Effective remote-controlled distance
|
m
|
300
|
|
Total weight
|
Kg
|
2500
|
|
Product size
|
mm
|
2550*1500*2200
|
