Quick Details
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
JS19H-10/S
-
Material:
-
Stainless Steel
-
Switch Type:
-
Push Button Switch
-
Mounting Hole Size:
-
19mm
-
The Front Shape:
-
Default High Head (or Flat head / Ball head)
-
Terminal Type:
-
Default Screw Terminal ( or Pin Terminal)
-
Operatain Type:
-
Momentary
-
Contact configuration:
-
Normal Open
-
Certification:
-
ROHS CE
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
2A
-
Max. Voltage:
-
36V DC
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
JS19H-10/S
-
Material:
-
Stainless Steel
-
Switch Type:
-
Push Button Switch
-
Mounting Hole Size:
-
19mm
-
The Front Shape:
-
Default High Head (or Flat head / Ball head)
-
Terminal Type:
-
Default Screw Terminal ( or Pin Terminal)
-
Operatain Type:
-
Momentary
-
Contact configuration:
-
Normal Open
-
Certification:
-
ROHS CE
Order Note：
Our
RTS order
is for High head
and Screw Terminal
,if you need other color or Pin terminal , pls inform us by message,tks!
Head Shape : Default High Head (Or Flat head / Ball Head pls inform us by message );
Terminal Type : Default Screw Terminal (or Pin Terminal pls inform us by message );
Momentary : Push--ON, release--the actuator surface spring to original position;
Head Shape : Default High Head (Or Flat head / Ball Head pls inform us by message );
Terminal Type : Default Screw Terminal (or Pin Terminal pls inform us by message );
Product Display

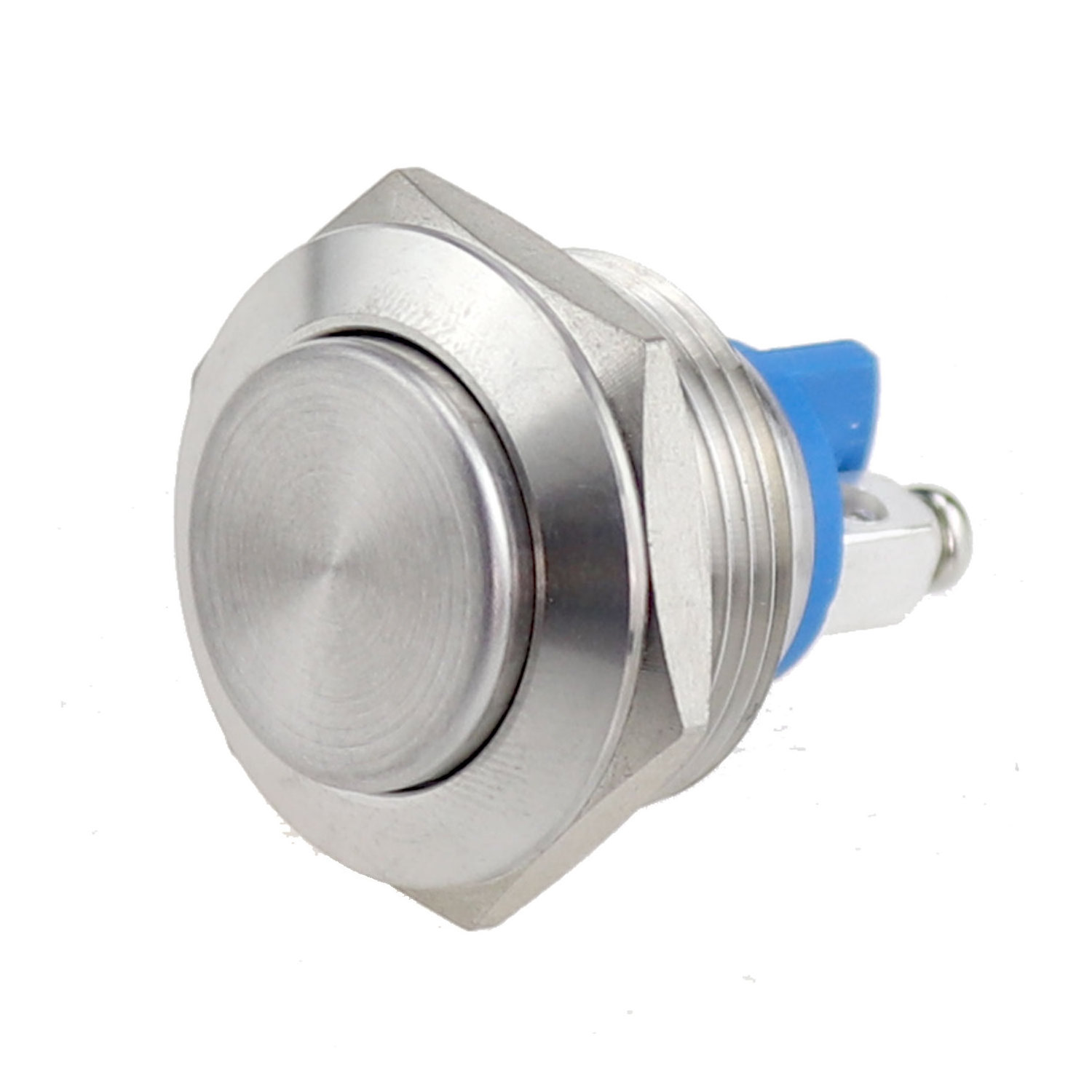

Stainless Waterproof 1 NO Momentary High Head IP65 19mm push button switch
★All our products have passed the CE, CCC, ROHS etc. certifications.
★Our push buttons use 95% silver contacts,with good contact performance.
★Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.
★Our Metal push button switch's Mechanical Life more than 100,0000 times,with long service life.
★It is a Good quality push button, its push feeling is very good.
★Our push buttons are made of anti-damage metal, not easy to fade, excellent performance, IP67 protection level.
★It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.
Product Paramenters
|
|
|
|
Brand Name
|
YUESHUN
|
|
Mounting Hole Size
|
19mm
|
|
Max Switch Rating
|
2A / 36VDC
|
|
Contact Configuration
|
1NO ( Normal Open)
|
|
Operation Type
|
Momentary
|
|
Head Shape
|
Default High Head (or Flat Head / Ball Head)
|
|
Terminal Type
|
Default Screw Terminal (or Pin Terminal)
|
|
Body Material
|
Stainless Steel
|
|
Button Material
|
Stainless Steel
|
|
Base Material
|
PBT
|
|
Contact Material
|
Silver Alloy
|
|
IP Degree
|
IP65
|
|
Contact Resistance
|
≤ 50mΩ
|
|
Insulation Resistance
|
≥ 10000mΩ
|
|
Dielectric Strength
|
2000VAC
|
|
Operation Temperature
|
-20℃～+55℃
|
|
Mechanica Life
|
More than 1000,000 cycles
|
|
Electrical Life
|
More than 200000 cycles
|
|
Panel Thickness
|
1-6mm
|
|
Torque
|
5-14Nm
|
|
Operating Pressure
|
About 4N
|
|
Operating Distance
|
About 1.5mm
|
