Quick Details
-
Voltage:
-
AC 380V/50Hz
-
Rated Power:
-
37kw
-
Dimension(L*W*H):
-
AS TO MODEL
-
Year:
-
2021
-
Weight (KG):
-
6000 KG
-
Z axis:
-
150mm ( Can be changed)
-
Control accuracy:
-
+/-0.01mm
-
Cutting accuracy:
-
+/-0.1mm
-
Re-position accuracy:
-
+/-0.02mm
-
Max operating pressure:
-
420Mpa/60000psi
-
Continuous operating pressure:
-
370MPa-390MPa
-
Main motor power:
-
37KW
-
Power requirement:
-
380V/50HZ
-
Ball screw:
-
ABBA
-
Control system:
-
WEIHONG Software
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Marketing Type:
-
Hot Product 2021
-
Brand Name:
-
HEAD
-
Voltage:
-
AC 380V/50Hz
-
Rated Power:
-
37kw
-
Dimension(L*W*H):
-
AS TO MODEL
-
Year:
-
2021
-
Weight (KG):
-
6000 KG
-
Z axis:
-
150mm ( Can be changed)
-
Control accuracy:
-
+/-0.01mm
-
Cutting accuracy:
-
+/-0.1mm
-
Re-position accuracy:
-
+/-0.02mm
-
Max operating pressure:
-
420Mpa/60000psi
-
Continuous operating pressure:
-
370MPa-390MPa
-
Main motor power:
-
37KW
-
Power requirement:
-
380V/50HZ
-
Ball screw:
-
ABBA
-
Control system:
-
WEIHONG Software

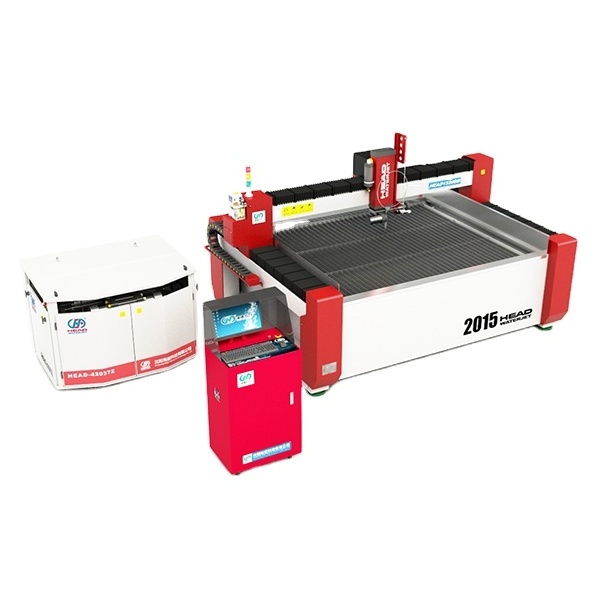

SPECIFICATIONS FOR WATER JET CUTTING MACHINE
|
|
|
|
|||
Max. pressure
|
|
420MPA/60000psi
|
|
|||
Max. flow rate
|
|
3.7L / min
|
|
|||
Electrical source voltage
|
|
3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP
|
|
|||
Max. diameter of nozzle / orifice
|
|
1.02mm / 0.33mm
|
|
|||
Max. delivery capacity of oil pump
|
|
106L / min
|
|
|||
Max cutting heads
|
|
1-10 cutting heads (1 for standard machine)
|
|
>>>Try to Read This -------Our Service
1. Maintenance free of charge for
12 months .
2. We will provide the consumable parts at an agency price.
3.
24 hours online service
, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and
Videos for software Installation
, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training,
including working principle of machine, Auto CAD drawing, common problems and solution, etc
.
>>>Try to Read This -------FAQ
Q1: Does This Machine Pass CE Certificate?
A2: Yes, this machine passed
European CE
certificate and meet
Safety Standard.
Q2: How much of cutting thickness?
A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials.
Q3: How fast of
speed
?
A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.
Keep safety
Although anything can be cut through, waterjet is still very safe. It is because we don't need to put any body parts under the waterjet cutting head while it is on, obviously. If there is a leak in a high-pressure water system will tend pressure rapidly drop to safe level. Water itself is safe and non-explosive and the garnet abrasive is also inert and non-toxic. So using waterjet to cut material is very safety.
Environmentally friendly
As long as we are not machining a material that is hazardous, the spent abrasive and waste material become suitable for land fill. The garnet abrasive is inert and can be disposed of with our other trash.If we are machining lots of lead or other hazardous materials, we will still need to dispose of our waste appropriately, and recycle the water. Keep in mind, however, that very little metal is actually removed in the cutting process. This keeps the environmental impact relatively low, even if we do machine the occasional hazardous material.In most areas, excess water is simply drained to the sewer. In some areas, water treatment may be necessary prior to draining to sewer. In a few areas, a "closed loop" system that recycles the water may be required.
why choose HEAD water jet
1.
Competitive price
: It is can meet your budget and best-selling business very well.
2.
OEM Accepted
: We can produce any your request design.
3.
Good Service
: We treat clients as friends.
4.
Good Quality
: We have strict quality control system. Good reputation in the market.
5.
Fast & Delivery
: We have big discount from forwarder
>>>Brief Introduction Of HEAD waterjet company
Quality and credit goes all the way. HEAD , a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.
>>View of Company honor
Our Package Advantage:
1. Our
Wooden Case
is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Before delivery
, we would do the test about
20-30
working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
HEAD WATER JET MAKES CUTTING IS NO LONGER PROBLEM !
