Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
Yifan
-
Place of Origin:
-
Fujian, China
-
Product name:
-
industrial router
-
Interface:
-
Ethernet +Serial + I/O Port
-
Antenna:
-
External 5DBI (7DBI IS optional)
-
Speed:
-
150Mbps
-
Dimension:
-
133 x 115.7 x 45 mm
-
Support:
-
Openvpn Ipsec PPTP L2TP
-
Network:
-
LTE-A/LTE/UMTS/GPRS
-
Operating Temperature:
-
-35°C to +75°C
-
Certification:
-
CE FCC ROHS
Quick Details
-
Max. LAN Data Rate:
-
150Mbps
-
With Modem Function:
-
Yes
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
Yifan
-
Place of Origin:
-
Fujian, China
-
Product name:
-
industrial router
-
Interface:
-
Ethernet +Serial + I/O Port
-
Antenna:
-
External 5DBI (7DBI IS optional)
-
Speed:
-
150Mbps
-
Dimension:
-
133 x 115.7 x 45 mm
-
Support:
-
Openvpn Ipsec PPTP L2TP
-
Network:
-
LTE-A/LTE/UMTS/GPRS
-
Operating Temperature:
-
-35°C to +75°C
-
Certification:
-
CE FCC ROHS

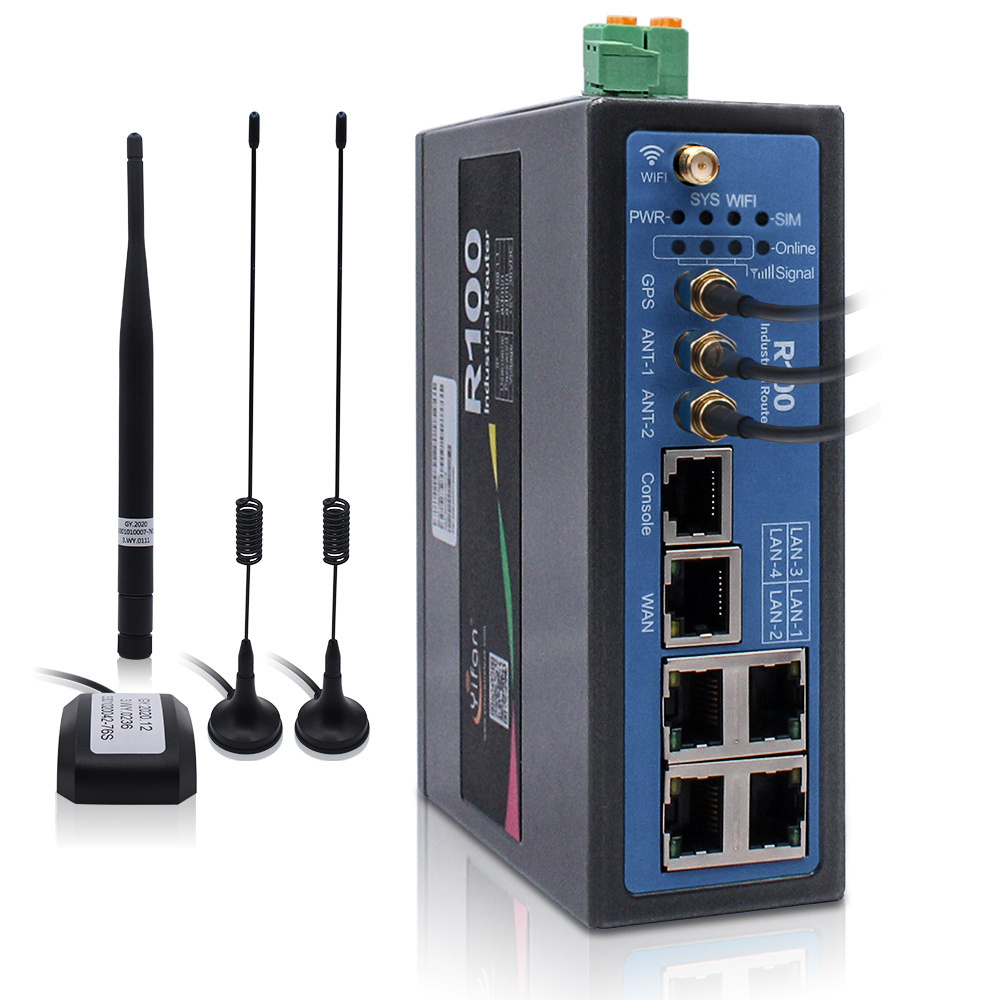

Newest R100 series industrial 4g LTE Ethernet, serial and I/O WiFi router
R100 series is an intelligent cellular router designed for industrial applications requiring faultless connectivity.It provides a secure, reliable, real-time, remote connectivity for SCADA, distribution management systems, metering etc.Software-defined, multi-carrier networking, dual SIM models,802.11n and global 2.5G/3G/HSPA+/LTE options make it easy to get connected. With DIN-rail mounting, wide operating temperature range, and IP30 metal housing, the R100 is a convenient yet reliable solution for any industrial wireless applications.
• Advanced Failover: Maximize uptime by seamlessly switching between the multiple Internet interfaces (cellular, WAN, Wi-Fi, dual-SIM).
• Multiple Tunneling Schemes: Secure your data using a variety of VPN tunneling schemes, including IPSec, L2TP, PPTP, OpenVPN and GRE.
• Flexible Wi-Fi: 802.11 b/g/n, configurable Wi-Fi as WAN or access point, Wi-Fi Security (WEP / WPA / WPA2 Mixed Mode) and multiple SSID.
• Ethernet, serial and I/O for connecting diverse field assets.
• Remote Management provides mass configuration, device management, OTA update, and troubleshooting tools
|
Frequency
|
|
|
|
LTE
|
B1, B2, B3, B4, B5, B7, B8, B20, B28
|
|
|
WCDMA
|
WCDMA: 2100(B1), 1900(B2), 850(B5)
|
|
|
EV-DO
|
800(BC0)
|
|
|
GSM/GPRS/EDGE
|
850/900/1800/1900
|
|
HOST INTERFACES
• 10/100 Base-T RJ45 Ethernet port
• RS-232 or RS-485 Serial Console Port• 3 SMA antenna connectors (WI-FI and Double-cellular)
• Active GPS/ZigBee antenna support (option)
• (6) pin 3.5mm terminal block
NETWORK AND ROUTING
• Network Address Translation (NAT)
• Port Forwarding
• Host Port Routing
• VRRP and Dynamic DNS
• Reliable Static Route
LAN
• DNS, DNS Proxy
• DHCP Server
• IP Passthrough (option)
• VLAN
• Host Interface Watchdog
• PPPoE
SERIAL
• TCP/UDP PAD Mode
• Modbus (ASCII, DTU, Variable)
• PPP
• Reverse Telnet
INPUT/OUTPUT
• (6) pin 3.5mm terminal block.
• (2) DI, (1) DO, (1) Relay.
• Input ON Voltage: 5 to 30 VDC.
• Input OFF Voltage: 0 to 3 VDC.
• Output < 50mA @ 30VDC
VPN
• IPSec, GRE, and OPENVPN Client
• Up to 10 concurrent tunnels
• Split Tunnel
• Dead Peer Detection (DPD)
• Multiple Subnets
• VPN Failover
SECURITY
• Remote Authentication
• DMZ
• Inbound and Outbound Port filtering
• Inbound and Outbound Trusted IP
• MAC Address Filtering.
GPS (Optional)
Antenna Interface: SMA Female, 50 ohms impedance
• Tracking Sensitivity: better than -144 dBm
• Horizontal position accuracy: 2.5 m
• Time-To-First-Fix: 29 s
• Protocol: NMEA-0183 V2.3
