Quick Details
-
Brand Name:
-
Eker
-
Model Number:
-
PB06 LED Illuminated Push Button Switch
-
Iten Name:
-
Dual LED Illuminated Momentary Silent Push Button Switch
-
Rating:
-
100mA 12VDC
-
Contact Resistance:
-
200mΩ
-
Insulation:
-
DC 500V 200MΩ
-
Life:
-
5,000,000 cycles
-
Operating Tempt:
-
-20deg~+70deg
-
Circuit:
-
OFF-(ON)Momentary SPST
-
Total Travel:
-
4.5±0.2mm
-
LED Color:
-
Red/Yellow/Green/Blue/White
-
Cap Type:
-
12mm / 15mm / 17.4mm
-
Certification:
-
RoHS
Quick Details
-
Max. Current:
-
100mA
-
Max. Voltage:
-
12VDC
-
Place of Origin:
-
China
-
Brand Name:
-
Eker
-
Model Number:
-
PB06 LED Illuminated Push Button Switch
-
Iten Name:
-
Dual LED Illuminated Momentary Silent Push Button Switch
-
Rating:
-
100mA 12VDC
-
Contact Resistance:
-
200mΩ
-
Insulation:
-
DC 500V 200MΩ
-
Life:
-
5,000,000 cycles
-
Operating Tempt:
-
-20deg~+70deg
-
Circuit:
-
OFF-(ON)Momentary SPST
-
Total Travel:
-
4.5±0.2mm
-
LED Color:
-
Red/Yellow/Green/Blue/White
-
Cap Type:
-
12mm / 15mm / 17.4mm
-
Certification:
-
RoHS

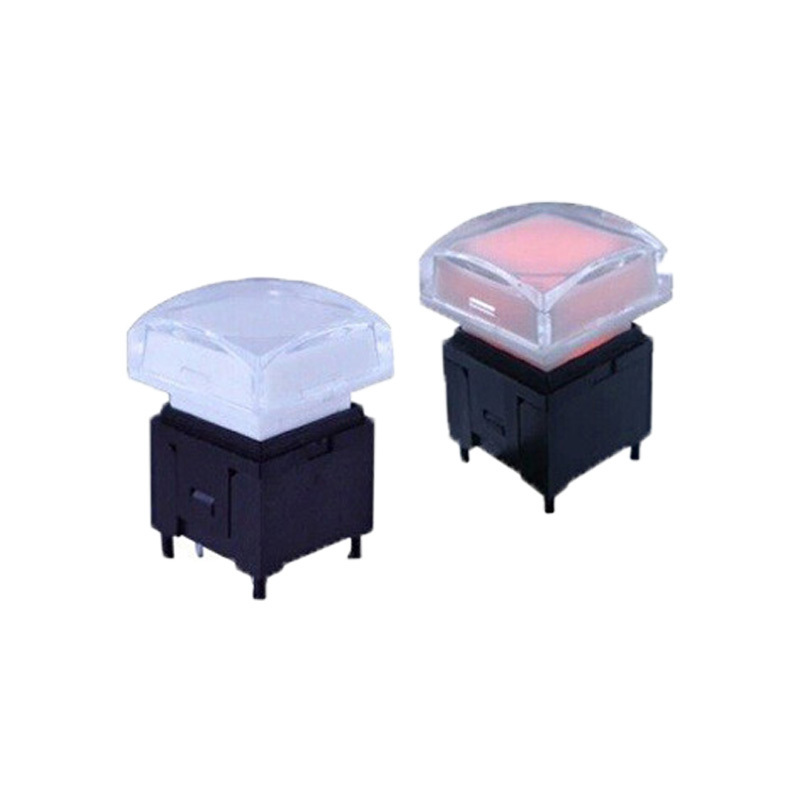

PLC RGB Colors Super Durable Dual LED Illuminated Momentary Silent Push Button Switch for Console
Feature Application
♦ Noiseless
♦
Audio/Video Products
♦ Full Color LED Illuminated Available
♦
Instrumentation
♦
Long Electrical Life Cycles
♦
Communication Equipments
♦ SPST, OFF-(ON)Momentary Function
Product Description
PLC RGB Colors Super Durable Dual LED Illuminated Momentary Silent Push Button Switch for Console
Specification
| Circuit | SPST |
| Function | OFF-(ON)Momentary |
| Current Rating | 100mA |
| Voltage Rating | 12VDC |
| Contact Resistance | 200mΩ Max Intial |
| Insulation Resistance | 100mΩ Min |
| Total Travel | 4.5±0.2mm |
| Operation Temp | -20℃ ~ +70℃ |
| Operation Force | 250±100gf, 1,000,000 Cycles Min |
| Soldering Specifications | 260℃ for 5 Seconds |
