Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
PurePumps
-
Model Number:
-
DP35
-
Place of Origin:
-
Jiangsu, China
-
Horsepower:
-
0.055hp
-
Outlet Size:
-
1/2 inch
-
Power:
-
0.04kw
-
Product name:
-
booster pump
-
Certification:
-
Coc
Quick Details
-
Application:
-
Drinking water treatment, Food and Beverage Industry
-
Pressure:
-
35psi
-
Voltage:
-
12v
-
Warranty:
-
1 years
-
Brand Name:
-
PurePumps
-
Model Number:
-
DP35
-
Place of Origin:
-
Jiangsu, China
-
Horsepower:
-
0.055hp
-
Outlet Size:
-
1/2 inch
-
Power:
-
0.04kw
-
Product name:
-
booster pump
-
Certification:
-
Coc

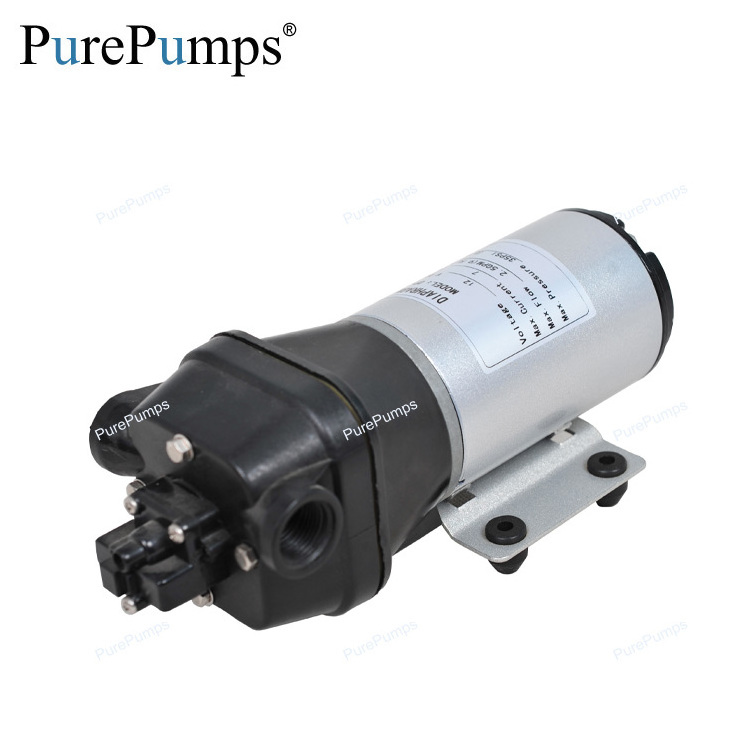

9.5l/min DC motor 2.5GPM max flow RO system diaphragm booster water pump with pressure switch
Features:
1. Easy to move and install;
2. With self-priming function;
3. Built-in pressure automatic switch control pump;
4. Medium temperature up to 60 °C;
5. Low noise, corrosion resistance, high pressure.
Product purpose:
1. reverse osmosis water purification system;
2. Filter separator
3. spray equipment
4. general Industrial equipment
5. chemical metering and dosing;
6. Health and environmental protection;
7. Printing industry.
| model | voltage | max current | max flow | speed | max pressure | suction | pressure switch | power |
| v | A | GPM / LPM | RPM | Psi / Mpa | m | Psi / Mpa | w | |
| DP35 | 24 | 4.8 | 3.2/ 12 | 1300 | 35/ 0.24 | 5 | 35/ 0.24 | 40 |
| 12 | 7 | 2.5/ 9.5 | 1200 | 35/ 0.24 | 5 | 35/ 0.24 | 40 | |
| DP50 | 24 | 6 | 4.2/ 16 | 1800 | 50/ 0.35 | 5 | 50/ 0.35 | 65 |
| DP60A | 24 | 3 | 1.3/ 5 | 1200 | 60/ 0.42 | 5 | / | 40 |
| 12 | 6 | 1.3/ 5 | 1200 | 60/ 0.42 | 5 | / | 40 | |
| 220 | 0.42 | 1.3/ 5 | 1200 | 60/ 0.42 | 5 | / | 40 | |
| DP60 | 24 | 3 | 1.3/ 5 | 1200 | 60/ 0.42 | 5 | 60/ 0.42 | 40 |
| 12 | 6 | 1.3/ 5 | 1200 | 60/ 0.42 | 5 | 60/ 0.42 | 40 | |
| 220 | 0.42 | 1.3/ 5 | 1200 | 60/ 0.42 | 5 | 60/ 0.42 | 40 | |
| DP60A brushless | 12 | 5 | 1.3/ 5 | 1200 | 60/ 0.42 | 5 | / | 20 |
| 24 | 2.8 | 1.3/ 5 | 1200 | 60/ 0.42 | 5 | 60/ 0.42 | 28 | |
| DP60 brushless | 24 | 2.8 | 1.3/ 5 | 1200 | 60/ 0.42 | 5 | 60/ 0.42 | 28 |
| 12 | 5 | 1.3/ 5 | 1200 | 60/ 0.42 | 5 | 60/ 0.42 | 20 | |
| DP70 | 24 | 9 | 5/19 | 1200 | 70/0.48 | 5 | 70/0.48 | 95 |
| 12 | 17 | 4.7/18 | 1200 | 70/0.48 | 5 | 70/0.48 | 95 | |
| DP100A | 24 | 1.1 | 0.32/ 1.2 | 375 | 100/ 0.68 | 5 | / | 10 |
| DP100 | 24 | 1.1 | 0.32/ 1.2 | 375 | 100/ 0.68 | 5 | 100/ 0.68 | 10 |
| DP125 | 24 | 1 | 0.26/ 1 | 375 | 125/ 0.86 | 5 | 125/ 0.86 | 10 |
| DP130B | 24 | 1.2 | 0.45/ 1.7 | 470 | 130/ 0.9 | 5 | 125/ 0.86 | 15 |
| 12 | 2.2 | 0.45/ 1.7 | 470 | 130/ 0.9 | 5 | 125/ 0.86 | 15 | |
| DP130 | 24 | 1.2 | 0.45/ 1.7 | 470 | 130/ 0.9 | 5 | / | 15 |
| 12 | 2.2 | 0.45/ 1.7 | 470 | 130/ 0.9 | 5 | / | 15 | |
| DP150 | 12 | 10 | 1.3/ 5 | 1200 | 150/ 1 | 5 | / | 40 |
| 24 | 4 | 1.3/ 5 | 1200 | 150/ 1 | 5 | / | 40 |
