Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sunlight/OEM
-
Model Number:
-
PBS-35B
-
Mounting hole diameter:
-
15mm*13mm
-
Operation type:
-
Momentary
-
Type:
-
Supplies>>Switches>>Push Button Switches
-
Terminal type:
-
2 Pin Terminals
-
Contact Resistance:
-
20m Max
-
Certificate:
-
CQC
-
Button color:
-
Red Yellow White Black Green
-
Product type:
-
Mini Push Button Switch
-
Function:
-
Push On
-
Free Sample:
-
Available
Quick Details
-
Protection Level:
-
IP40
-
Max. Current:
-
1A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sunlight/OEM
-
Model Number:
-
PBS-35B
-
Mounting hole diameter:
-
15mm*13mm
-
Operation type:
-
Momentary
-
Type:
-
Supplies>>Switches>>Push Button Switches
-
Terminal type:
-
2 Pin Terminals
-
Contact Resistance:
-
20m Max
-
Certificate:
-
CQC
-
Button color:
-
Red Yellow White Black Green
-
Product type:
-
Mini Push Button Switch
-
Function:
-
Push On
-
Free Sample:
-
Available
Features:

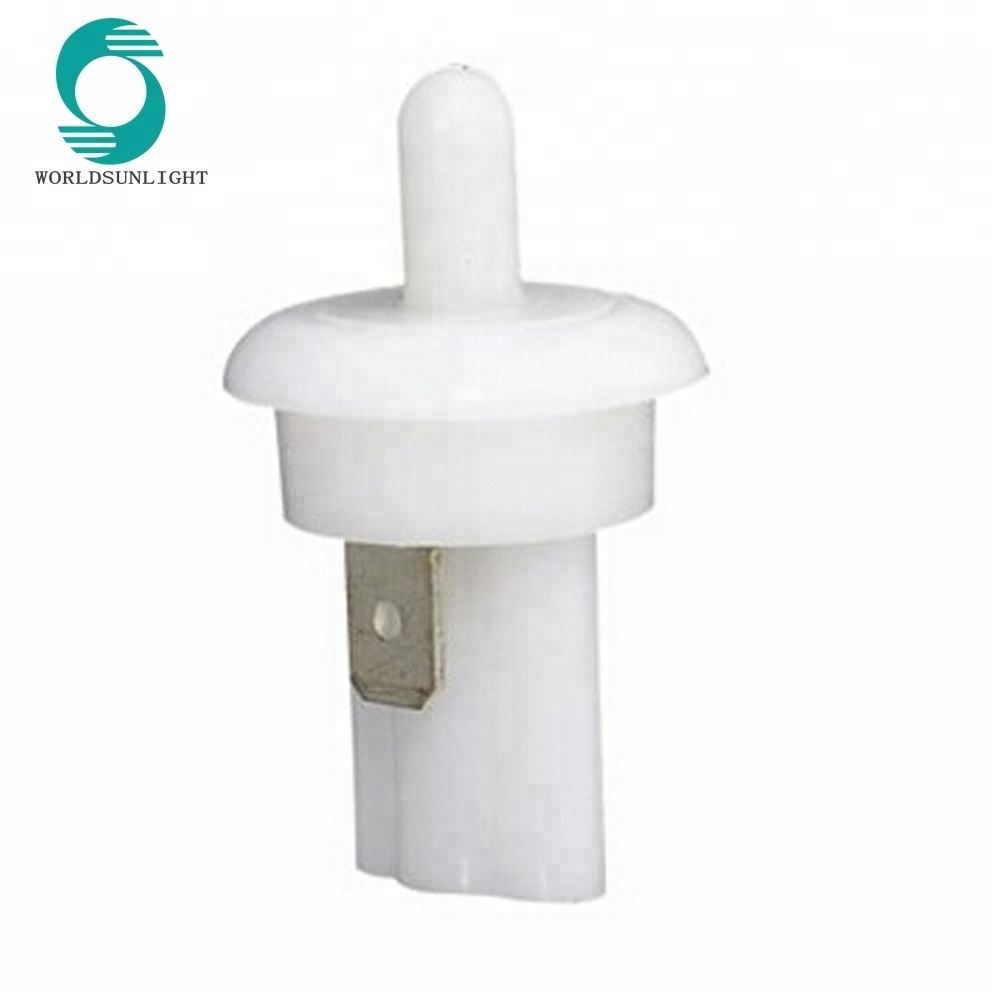

1)PBS-35B (OFF)-ON 1A 250VAC 3A 125VAC push on white reset refrigerator door push button switch
2) pin terminal
3)Momentary
PBS-35B (OFF)-ON 1A 250VAC 3A 125VAC push on white reset refrigerator door push button switch
Application:
It can be used in variety of places such as Outdoor controls, Communications,Security equipment,Defense,Medical equipment,Industrial automation,Food processing equipment,Security control button,Industrial machinary,Coffee maker control button,Transportation:Mass-transit,life trucks,Bathroom control button and so on.
PBS-11B AC 250V 3A 2 Pins SPST Push On Momentary Green Push button Pushbutton Switc
PBS-35B (OFF)-ON 1A 250VAC 3A 125VAC push on white reset refrigerator door push button switch
Technical parameters:
Specification:
| Ambient temperature | -10°C~+85°C |
| Contact resistance | < 20MΩ |
| Insulation resistance | >500VDC 100MΩ Minute |
| Withstand voltage | >1000VAC, 1 Minute |
| Operating Temperature | -25°C~+85°C |
| Mechanical life | >50000 CYCLES |
| Electrical life | >10000 CYCLES |
| Function | ( OFF)-ON |
| Rated Voltage | 250VAC |
| Rated Current | 1A |
| Protection Level | IP40 |
| Color of Switch Cover | WHITE |
Dimension:
|
PBS-10B Monting Hole Diameter 7mm AC 3A 125V 1A 250V PUSH-ON Red Momentary Push Button Switch
Order Code:
Momentary
: Means that when you push switch and then move your finger, the actuator will back to the original position.
Latching : Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again.
PBS-35B (OFF)-ON 1A 250VAC 3A 125VAC push on white reset refrigerator door push button switch
Pictures:
|
|
|
Anything needs me,plz send the inquiry to me!Thanks!We can supply many kinds of push button switches.
Please click the link to see more products: https://worldsunlight.en.alibaba.com/productgrouplist-802914665/Plastic_pushbutton_switch.html
PBS-35B (OFF)-ON 1A 250VAC 3A 125VAC push on white reset refrigerator door push button switch
As follows:
PBS-35B (OFF)-ON 1A 250VAC 3A 125VAC push on white reset refrigerator door push button switch
Packaging:
PBS-35B (OFF)-ON 1A 250VAC 3A 125VAC push on white reset refrigerator door push button switch
