Quick Details
-
Place of Origin:
-
Guangdong, China
-
Forward Voltage:
-
30-36V
-
Current:
-
9.3A
-
Thermal Resistance:
-
0.24 ℃/W
-
Junction Temperature:
-
115℃
-
ESD Sensitivity:
-
±2,000V HBM
-
LED Chips:
-
Flip chips
-
Application:
-
high power led
-
OEM:
-
YES
Quick Details
-
Color Rendering Index(Ra):
-
70
-
Operating Temperature(℃):
-
-40 - 60
-
Storage Temperature(℃):
-
-40 - 60
-
Place of Origin:
-
Guangdong, China
-
Forward Voltage:
-
30-36V
-
Current:
-
9.3A
-
Thermal Resistance:
-
0.24 ℃/W
-
Junction Temperature:
-
115℃
-
ESD Sensitivity:
-
±2,000V HBM
-
LED Chips:
-
Flip chips
-
Application:
-
high power led
-
OEM:
-
YES

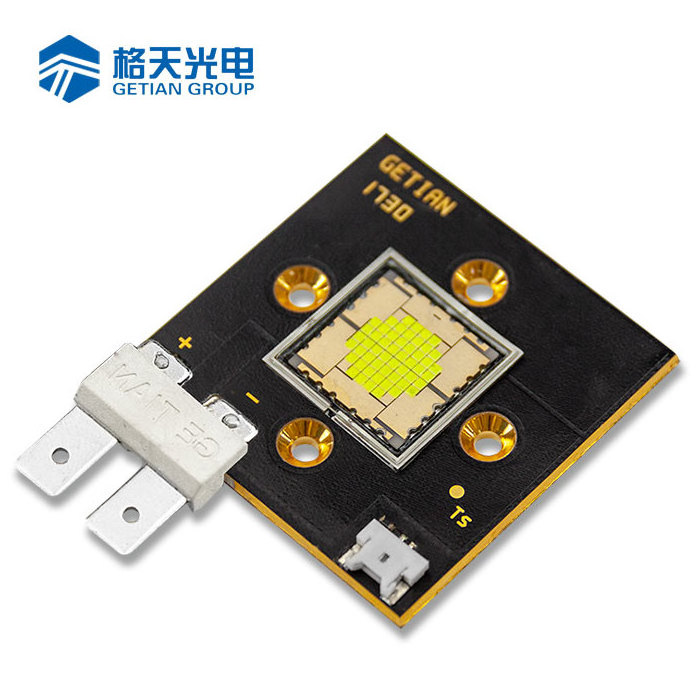

Flip Chip 300W COB LED Natural white 6000-6500k for Stage led Lighting
Features Flip Chip LED
Flip Chip Technology. No Gold Wire; High Stability.
Low Thermal Resistance & Faster Heat Dissipation
Small Luminous Area & Convenient for Optical Design
A Wide Power Range for Stage Light Series 60-300W
|
Product Name Flip Chip COB Module |
Power |
Viewing
Angle |
LES | CCT | Voltage | Current | Luminous Flux |
| (GT-FC60) | 60W |
120 °
Flip Chip |
6.66*6.66mm |
6000-6500K
8000-9000K |
14-18V | 3.75A | 5000-5500LM |
| (GT-FC90) | 90W | 6.66*6.66mm | 5.5A | 6000-6500LM | |||
| (GT-FC150) | 150W | 9.64*9.64mm | 21-24V | 6.7A | 11000-12000LM | ||
| (GT-FC300) | 300W | 13.48*13.48mm | 30-36V | 9.3A | 20000-22000LM | ||
| (GT-FC500) | 500W | 12.84*12.84mm | 30-36V | 15.5A | 30000-35000LM |
Flip Chip LED Product Advantages:
1 . No gold wire; led failure rate drop 90%; high stability.
2.Ceramic Base: truly realize separation of heat and electricity conduction; high thermal conductivity; high volt resistance more than 3000V.
3. New Chip Technology: thermal resistance as low as 0.12 °C/W.
4. Small Luminous Area: high luminous intensity; convenient for optical design with high central luminous flux.
5. High Thermal Conductivity Alloy to Weld the Chip:
replace old technology of epoxy soldering, not easy to fall off.
6. High Thermal Conductivity; Low Thermal Resistance, single chip can drive to 1000mA with higher efficiency.
7. Patented Phosphor Technology: stable color temperature, no floating.
8. Equipped with Temperature Sensor: More accurate heat dissipation and temperature control.
9. Simple Installation Design: Easy to use.
10.Anti-dust design for the luminous surface: easy to keep the surface clean.
