Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xinhehui Motor
-
Model Number:
-
49OGM500
-
Torque:
-
1-30kgf.cm, 11.6/12.6/12/13.5(g.cm)
-
Product Name:
-

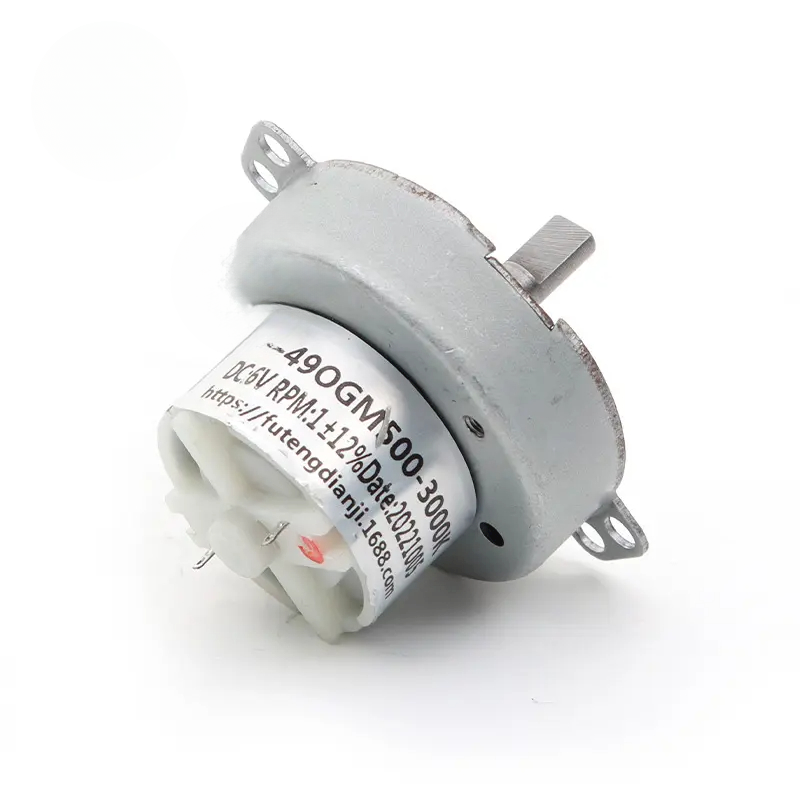

Dc Spur Gear Motor-49OGM500
-
Diameter:
-
49mm
-
DC gear motors are widely used:
-
Robots, electronic locks, public bicycle locks, relays
-
Current:
-
20/26/30/22(mA)
-
Voltage:
-
1-24V
-
Rated voltage:
-
3v/5v/6v/12v
-
Output:
-
0.26/0.27/0.27/0.29(w)
Quick Details
-
Speed(RPM):
-
2700/3100/2700/4000(rpm)
-
Continuous Current(A):
-
about 430mA-2500mA, about 430mA-2500mA
-
Efficiency:
-
65%-90%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xinhehui Motor
-
Model Number:
-
49OGM500
-
Torque:
-
1-30kgf.cm, 11.6/12.6/12/13.5(g.cm)
-
Product Name:
-
Dc Spur Gear Motor-49OGM500
-
Diameter:
-
49mm
-
DC gear motors are widely used:
-
Robots, electronic locks, public bicycle locks, relays
-
Current:
-
20/26/30/22(mA)
-
Voltage:
-
1-24V
-
Rated voltage:
-
3v/5v/6v/12v
-
Output:
-
0.26/0.27/0.27/0.29(w)
Products Description
Gearbox Data
|
|
4
|
5
|
6
|
|
Number of qear
|
|
|
|
|
|
41.7、51、80. 110
|
150、201、309、426、530、702、729
|
2224、 3000
|
|
Reduction Ratio ( K )
|
|
|
|
|
Gearbox length(mm)
|
11
|
11
|
11
|
|
|
2
|
4
|
6
|
|
Rated Torque (kg・cm)
|
|
|
|
|
Stall torque (kg・cm)
|
5
|
7
|
10
|
|
Gearbxo Efficiency ( % )
|
65%
|
59%
|
49%
|
Motor Data
|
Motor Model
|
|
/No Load
|
|
/Load
|
|
|
|
/Stall
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
Rated Voltage
|
Speed
|
Current
|
Speed
|
Current
|
Output
|
Torque
|
Current
|
Torque
|
|||||
|
|
V
|
(rpm)
|
(mA)
|
(rpm)
|
(mA)
|
(w)
|
(g・cm)
|
(mA)
|
(g・cm)
|
|||||
|
500
|
6
|
2700
|
20
|
2180
|
84
|
0.26
|
11.6
|
350
|
60
|
|||||
|
500
|
5
|
3100
|
26
|
2540
|
120
|
0.27
|
12.6
|
540
|
70
|
|||||
|
500
|
3
|
2700
|
30
|
2230
|
160
|
0.27
|
12
|
680
|
60
|
|||||
|
500
|
12
|
4000
|
22
|
3200
|
125
|
0.29
|
13.5
|
460
|
75
|
|||||
1、 The above motor parameters for reference, please refer to the actual sample.
2、 Motor parameters and output shaft size can be customized.
3、Output torque = motor torque * reduction ratio * gear efficiency.
4、 Output Speed = motor speed/reduction ratio.
2、 Motor parameters and output shaft size can be customized.
3、Output torque = motor torque * reduction ratio * gear efficiency.
4、 Output Speed = motor speed/reduction ratio.
