Quick Details
-
Cooling/Heating:
-
Cooling/Heating
-
Power Source:
-
Electric
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
CSH-9K(OA)
-
COP:
-
3.1-3.63
-
Voltage (V):
-
220~240v
-
Maximum Airflow Rate:
-
1100 m3/h
-
Featured Function:
-
dc inverter in energy saving
-
Refrigerant:
-
R410a
-
Function:
-
Cooling Ventilation Humidification Air Purifier
-
Power supply:
-
220-240V/1Ph/50Hz
-
Product Name:
-
dc split inverter air conditioner
-
Compressor:
-
GMCC - Toshiba
-
Cooling capacity:
-
9000btu-24000btu
-
Brand:
-
KRG OEM
-
Name:
-
Air Conditioners Split System
-
Feature:
-
Low Energy
-
Certification:
-
CB
Quick Details
-
Capacity (btu):
-
9000-24000
-
EER:
-
3.0
-
Type:
-
Split Wall Mounted Air Conditioners
-
Cooling/Heating:
-
Cooling/Heating
-
Power Source:
-
Electric
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
CSH-9K(OA)
-
COP:
-
3.1-3.63
-
Voltage (V):
-
220~240v
-
Maximum Airflow Rate:
-
1100 m3/h
-
Featured Function:
-
dc inverter in energy saving
-
Refrigerant:
-
R410a
-
Function:
-
Cooling Ventilation Humidification Air Purifier
-
Power supply:
-
220-240V/1Ph/50Hz
-
Product Name:
-
dc split inverter air conditioner
-
Compressor:
-
GMCC - Toshiba
-
Cooling capacity:
-
9000btu-24000btu
-
Brand:
-
KRG OEM
-
Name:
-
Air Conditioners Split System
-
Feature:
-
Low Energy
-
Certification:
-
CB

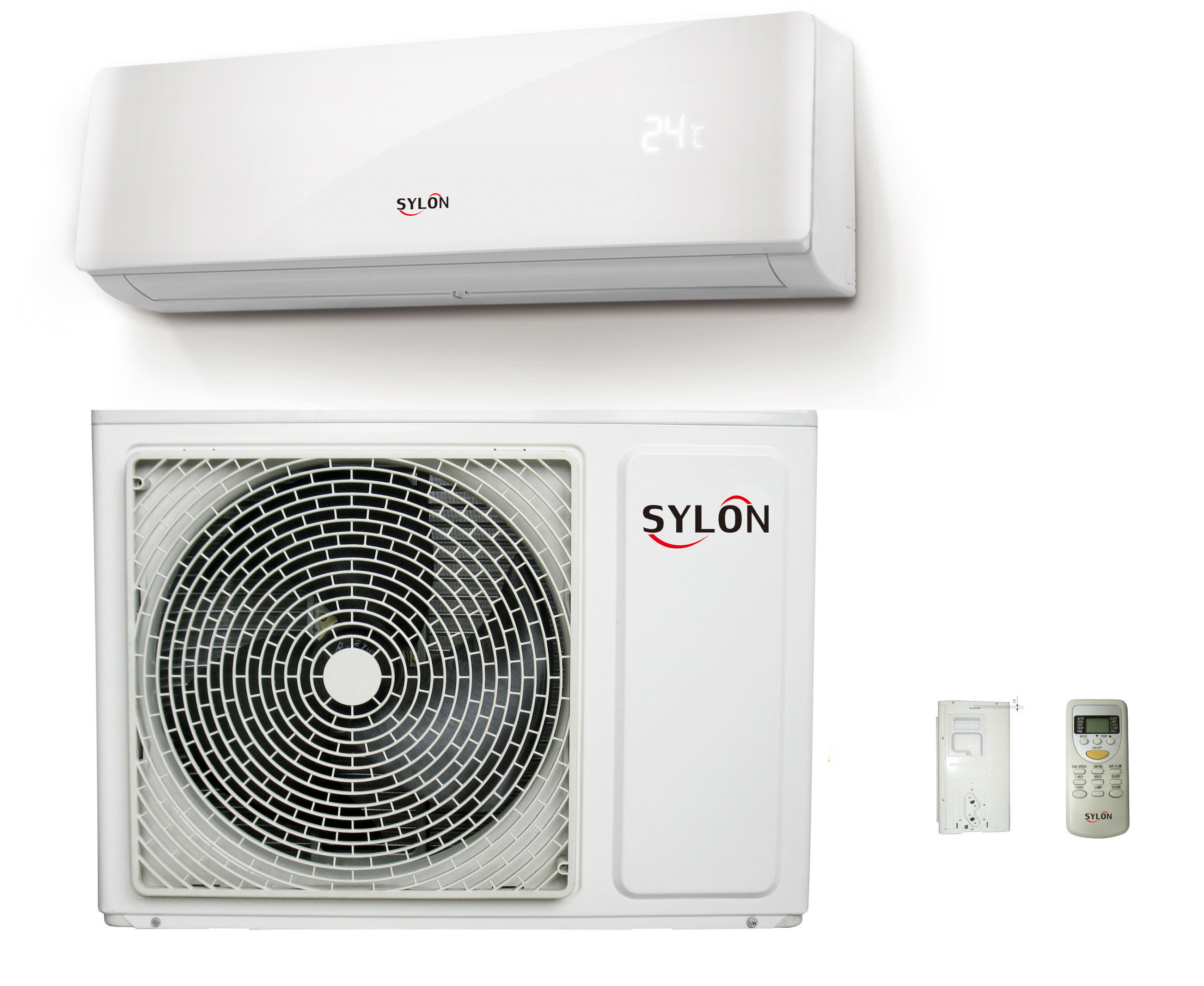

1 ton 1.5 ton Wifi Control Smart Super General AC Split Dc Inverter Air Conditioner
Product parameters
| Product name | dc split inverter air conditioner | ||||||
| Model | CSH-9K(OA) | CSH-12K(OA) | CSH-18K(OA) | CSH-24K(OA) | |||
| Cooling capacity | 7000/9000BTU | 12000BTU | 18000BTU | 24000BTU | |||
| Type | 698X(φ7×2) | 777X(φ7×2) | 910X(φ7×2) | 1010X(φ7×2) | |||
| Cooling only | |||||||
| Control type | Remote | ||||||
| Power supply | Ph-V-Hz | 1Ph-220-240V~50Hz | |||||
| Voltage Range | V | 198~242 | 198~242 | 198~242 | 198~242 | ||
| Cooling | Rated power Input | W | 849 | 1079 | 1772 | 2015 | |
| Rated current | A | 3.9 | 5.0 | 8.6 | 9.4 | ||
| EER | W/W | 3.00 | 3.00 | 3.00 | 3.00 | ||
| Max power Input | W | 1105 | 1403 | 2303.6 | 2620 | ||
| Max current | A | 5.1 | 6.5 | 11.2 | 12.3 | ||
| Heating | Capacity | Btu/h | 9200 | 12000 | 18500 | 24500 | |
| Input Power | W | 870 | 1172 | 1500 | 1980 | ||
| Rated current | A | 3.9 | 5.10 | 7.7 | 9.3 | ||
| COP | 3.1 | 3.00 | 3.61 | 3.63 | |||
| Moisture removal | Liters/h | 1 | 1.3 | 1.8 | 2.4 | ||
| Indoor noise level | dB(A) | 36 | 39 | 42 | 49 | ||
| Indoor air flow (Hi/Mi/Lo) | m3/h | 400 | 510 | 850 | 1100 | ||
| Indoor unit | FAN MOTOR | Brand | Broad-ocean/Welling/Tongde | WEILING | LT | Welling | |
| Model | RPG15(AL) | RPG25L | YKFG-35-4-94L | ||||
|
Evaporator
|
a.Number of rows | 2 | 2 | 2 | 2 | ||
| e.Fin type (code) | Hydrophilic aluminium foil(Blue fin) | Hydrophilic aluminium foil | Hydrophilic aluminium foil | Hydrophilic aluminium foil | |||
| f.Tube outside dia.and type | 7 Inn. Grv. | 7 Inn. Grv. | 7 Inn. Grv. | 7 Inn. Grv. | |||
| Dimension(W*D*H) | mm | 698×255×190 | 777×250×201 | 910×294×206 | 1010x315x220 | ||
| Packing (W*D*H) | mm | 764×325×267 | 850×320×275 | 979×372×292 | 1096×390×312 | ||
| Net/Gross weight | Kg | 7/9 | 8/11 | 10/13 | 15/18 | ||
|
Connecting
pipe |
Refrigerant Connection Type | R410A | R410A | R410A | R410A | ||
| Liquid side | mm | φ6 | φ6 | φ6 | φ6 | ||
| Gas side | mm | φ9.52 | φ12 | φ12 | φ15.88 | ||
Compressor model
Climate type:T1 (If you need T3,please consult us)
| Model Referance | CSH-9K | CSH-12K | CSH-18K | CSH-24K | |||
| COPRESSOR | Brand | GMCC | GMCC | GMCC | GMCC | ||
| Model | PA185M2C-4FT2 | ASG135 | PA190M2AS-4KTL1 | PA250G2CS-4MUL | |||
| Type | ROTARY | ROTARY | ROTARY | ROTARY | |||
| outdoor | FAN MOTOR | Brand | Welling/Broad-ocean | Welling | Tongde | Welling | |
| Model | YDK40-6H-(AL) | YKT-45-6-238L | YDK68-6E1 | ||||
| Condenser | a.Number of rows | 1 | 2 | 2 | 2 | ||
| d.Fin type (code) | Hydrophilic aluminium | Hydrophilic aluminium | Hydrophilic aluminium | Hydrophilic aluminium | |||
| e.Tube outside dia.and type | mm | 7 Inn. Grv. | 7 Inn. Grv. | 7 Inn. Grv. | 7 Inn. Grv. | ||
| Noise level(High\Middle\Low) | dB(A) | 50 | 55 | 55 | 57 | ||
| Dimension (W*H*D) | mm | 660*530*240 | 780*542*256 | 782*580*272 | 860*720*320 | ||
| Packing (W*H*D) | mm | 782×587×337 | 900*600*340 | 905*640*365 | 1015*775*445 | ||
Standard features:
Turbo cooling
Super low noise
Washable filter
Auto diagnosis
Sleep mode
L.E.D display
24-hopur timer
4-way air outlet
Removable&Washable panel
180V(220V) or 99V(110V) low voltage start up
golden fin for high anti-corrsive
Automatic clean and dry
Number of speed control(ex:Auto,1,2,3)
Number of working mode(ex:Cool/Heat/Smart/Fan/Dehumidify=5modes)
Formaldehyde prevention Filter
Optional features:
WiFi control
Heating and cooling
Silver ion filter
Healthy Negative ion
Active charcoal Filter
Auto restart
Anti cold air preventive function
1.We guarantee that the inquiry will be replied within 24 hours on workday.
2.We are an integrated manufacturing and trading company for many years.
3.OEM available:
We can help you to design and put it into production according to your ideas.
ODM&OEM available:
Customized product specifications.
Customized logo and carton
.
Provide samples
.
4. We can offer CKD/SKD for products,the price normally 5-10% higher than normal one price only.
5.
We can make the printing artworks(such as user manual/packing/rating label) in your language for free.
6.After-sale service:
All products have 12 months warranty for complete unit
.
The main spare parts has 3-year warranty,
We'll replace it for free.
The compressor has 5-year warranty
.
We can guide installation and assembly online.
7.Fast delivery:
Sample order: 7~10 days
50~100pcs: 15~25 days
1 MOQ: 30~40days
>1000pcs: 50~75days
