Quick Details
-
Voltage:
-
220v/1ph
-
Dimension(L*W*H):
-
500 x570 x845mm
-
Application:
-
woodworking
-
Weight (KG):
-
29 KG
-
Power (kW):
-
0.55
-
Max.Working Width(mm):
-
245mm
-
Marketing Type:
-
Hot Product 2023
-
Resaw capacity:
-
110mm
-
Throat depth:
-
245mm
-
Motor:
-
550w
-
Blade width:
-
1/8" - 1/2"
-
Table tilt:
-
0°-45°
-
Blade speed:
-
730m/min
-
Dust port diameter:
-
40mm
-
Table Size:
-
5340 x 335mm
-
Fence size:
-
395(L) x 50(H) mm
-
Weight:
-
29kgs
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CHANSEN
-
Usage:
-
Woodworking
-
Voltage:
-
220v/1ph
-
Dimension(L*W*H):
-
500 x570 x845mm
-
Application:
-
woodworking
-
Weight (KG):
-
29 KG
-
Power (kW):
-
0.55
-
Max.Working Width(mm):
-
245mm
-
Marketing Type:
-
Hot Product 2023
-
Resaw capacity:
-
110mm
-
Throat depth:
-
245mm
-
Motor:
-
550w
-
Blade width:
-
1/8" - 1/2"
-
Table tilt:
-
0°-45°
-
Blade speed:
-
730m/min
-
Dust port diameter:
-
40mm
-
Table Size:
-
5340 x 335mm
-
Fence size:
-
395(L) x 50(H) mm
-
Weight:
-
29kgs
FAQ
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Products Description
|

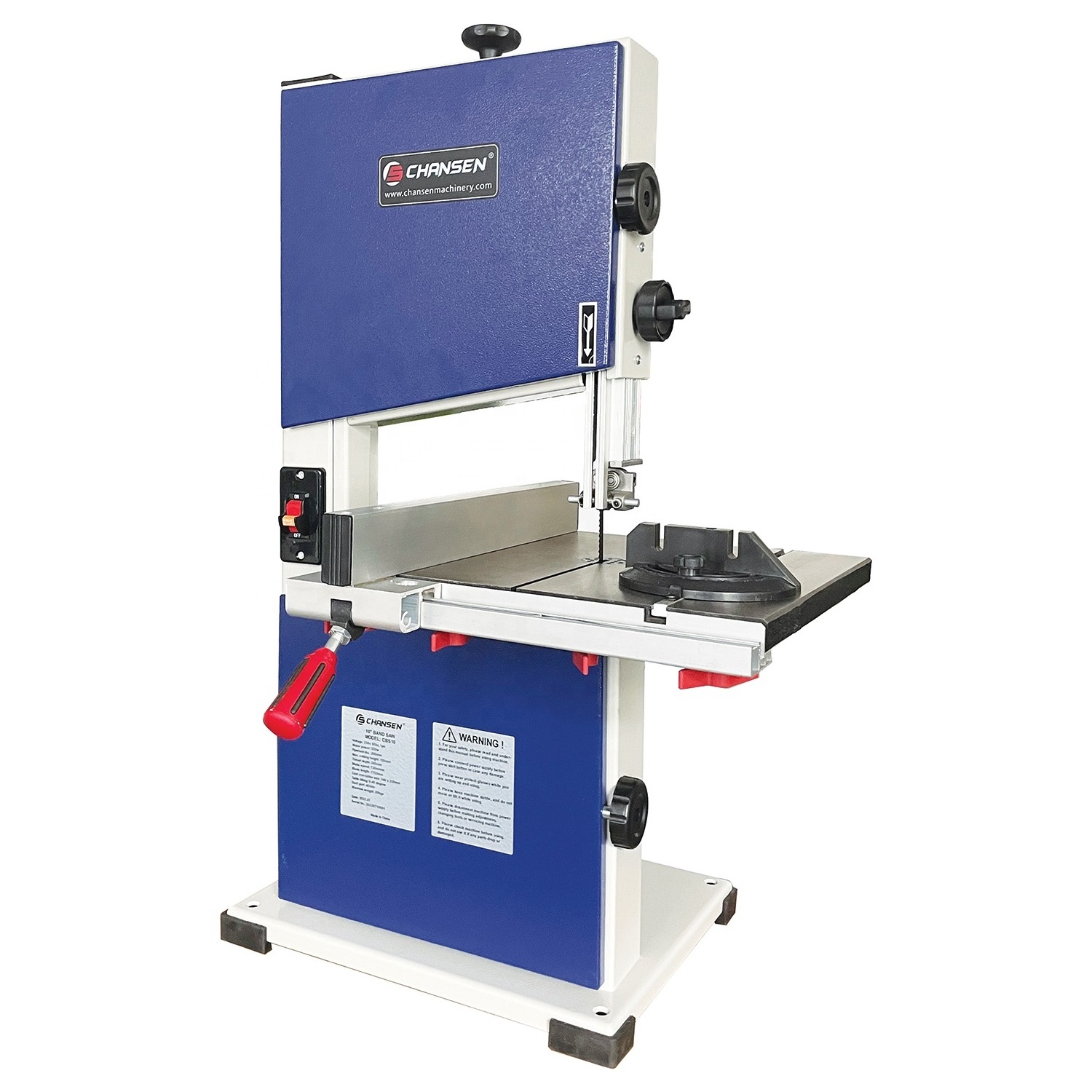

Chansen 10" Benchtop Band Saw
Item#CBS10
|
|
|
|
|
||||
|
Chansen 10" band saw CBS10 is a perfect entry-level machine for home using, or as an easy-to-move auxiliary saw in professional workshops.
CBS10 uses a 69-inch blade and accepts blades from 1/8" to 1/2" wide with enough power to cut through green woods and other dense materials. Both upper and lower casting aluminum flywheels are well dynamic balanced. The lower wheel has a brush that is designed to sweep sawdust off the tire and blade during operation. The aluminum fence is designed for easy attachment and removal from the rails. Cast iron work table can be tilted from 0° to 45° for easy miter cutting. What’s more, the adjustable bearing saw guide system provides precision cutting. For sure CBS10 is exactly the one of your small projects. |
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
Features
* Powerful 550w induction motor
* Aluminum fence is easy attachment and removal from the rail
* Dynamic balanced flywheels
* Lower flywheel has a brush for easy saw dust removal
* Cast iron work table can be tilted 0° - 45°
* Fully-adjustable bearing saw guide system
* Machine base with rubber feet
* Ribbed Poly-V belt for power transmission
* Tool hook for push stick
* Safety switch
* Include a push stick and miter gauge
Details Images
|
Specification
|
|
|
|
|
||||
|
Power supply
|
220v, 50hz, 1ph
|
|
|
|
||||
|
Main motor
|
550w
|
|
|
|
||||
|
Flywheel dia.
|
250mm
|
|
|
|
||||
|
Max. cutting height
|
110mm
|
|
|
|
||||
|
Throat depth
|
245mm
|
|
|
|
||||
|
Blade speed
|
730 m/min
|
|
|
|
||||
|
Blade length
|
1752mm
|
|
|
|
||||
|
Blade width
|
1/8" – 1/2"
|
|
|
|
||||
|
Fence size
|
395(L) x 50(H) mm
|
|
|
|
||||
|
Cast iron table size
|
395 x310mm
|
|
|
|
||||
|
Table tilting
|
0 - 45 degree
|
|
|
|
||||
|
Foot print
|
395 x310mm
|
|
|
|
||||
|
Dust port
|
40mm
|
|
|
|
||||
|
Overall dimensions
|
500 x570 x845mm
|
|
|
|
||||
|
Machine weight
|
29kgs
|
|
|
|
||||
|
Packing size
|
880 x450 x400mm
|
|
|
|
||||
|
Shipping weight
|
31kgs
|
|
|
|
||||
