Switch Type :
|

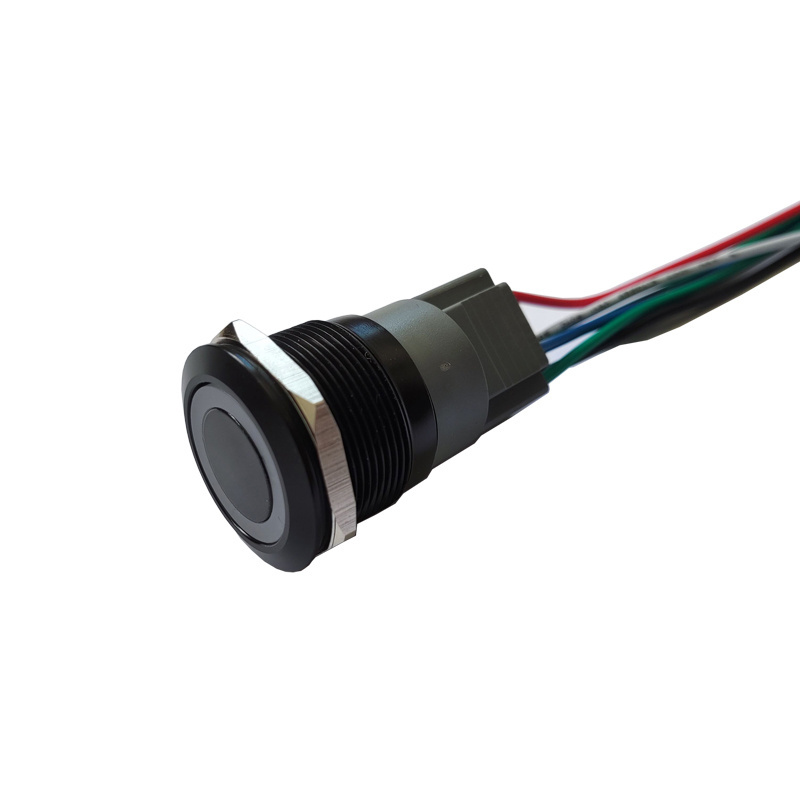

Customized 25mm Metal Push Button Switch
|
|
Model Number :
|
LTC25F-11EZ/J/A-B
|
|
Mounting Hole Size(Diameter) :
|
25mm
|
|
Head Type :
|
Flat Head
|
|
Contact Configuration :
|
1NO1NC
|
|
LED Lamp :
|
Ring Shape LED Lamp - Tri-color LED Lamp
|
|
LED Color :
|
RED, GREEN, YELLOW, BLUE, WHITE
|
|
Operation Type :
|
Latching
|
|
Terminal Type :
|
Pin Terminal
|
|
Shell Material :
|
Aluminium Alloy Oxidation
|
|
Switch Shell Color :
|
Black
|
|
Other Accessories :
|
Matched Socket
|
|
Brand Name :
|
|
|
LITEAM
|
LITEAM
|
|
||||
|
Certification :
|
|
|
CE
|
|
CE
|
||||
|
Rated Current :
|
5A
|
|
Rated Voltage :
|
250V
|
|
||||
|
Protection grade :
|
IP65/IP67/IP68; IK08/IK10
|
|
Mechanical Life :
|
More than 1 million time
|
|
||||
|
Contact Resistance :
|
≤50mΩ
|
|
Insulation Resistance :
|
≥1000MΩ
|
|
||||
|
Working Environment Humidity :
|
Working Environment
Humidity
|
|
Working
Temperature :
|
-25°C ~ +55°C (No freezing; Air circulation)
|
|
||||
|
Vibration Resistance :
|
50HZ, Amplitude ≈ 1.2mm
|
|
Accessories :
|
Nut, Waterproof O-ring
|
|
||||
|
Operation Type :
|
|
|
Momentary(Spring return) ; Latching(Self locking)
|
|
|
||||
|
Contact Configuration Introduction :
|
|
|
NO=Normal Open ; NC=Normal Close
|
|
|
||||
