Quick Details
-
Brand Name:
-
BeeLee
-
Model Number:
-
SW-1002
-
Max. Current:
-
0.2A
-
Name:
-
Mercury switches
-
Operation type:
-
Tilt type
-
Model:
-
sw-1002
-
Voltage:
-
20V
-
Current:
-
0.2A
-
CONTACT RESISTANCE:
-
less than10ohm
-
Lifespan:
-
500,000cycles
-
Certification:
-
IS09001
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
20V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BeeLee
-
Model Number:
-
SW-1002
-
Max. Current:
-
0.2A
-
Name:
-
Mercury switches
-
Operation type:
-
Tilt type
-
Model:
-
sw-1002
-
Voltage:
-
20V
-
Current:
-
0.2A
-
CONTACT RESISTANCE:
-
less than10ohm
-
Lifespan:
-
500,000cycles
-
Certification:
-
IS09001
When the products tilt to the no feet terminal and the tilt angle more than 15 degree ,
it will be a opened circuit “ OFF - state ”. When the products of horizontal placed tilt change ,
the trigger terminal is below the horizontal , and the tilt angle is more than 15 degree ,
it will be a closed circuit “ ON - stated ”

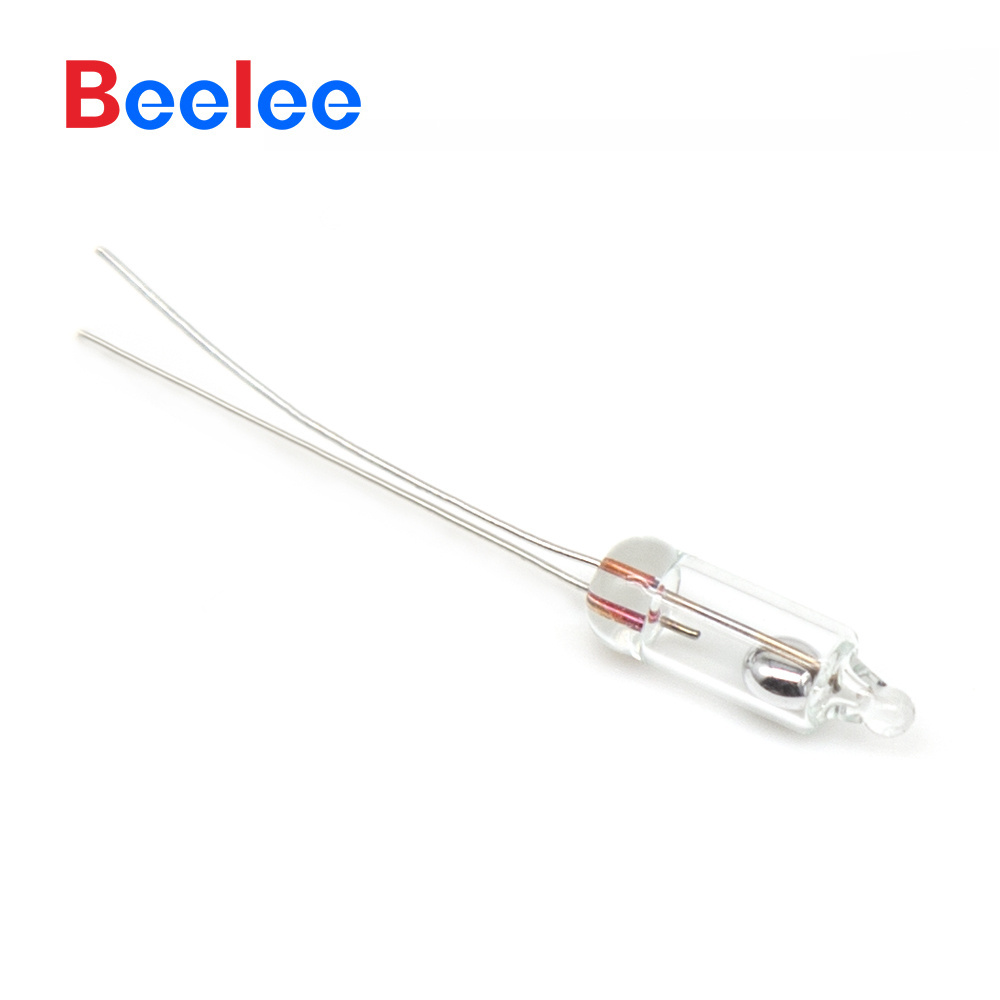

01.SW -1002 is mercury single direction type tilt sensitive trigger switch.
02.When the products tilt to the no feet terminal and the tilt angle more than 15 degree ,
it will be a opened circuit “ OFF - state ”. When the products of horizontal placed tilt change ,
the trigger terminal is below the horizontal , and the tilt angle is more than 15 degree ,
it will be a closed circuit “ ON - stated ”.
03.In a horizontal position , be easy to trigger with a shaking . Or not when the guide pin is upward
04.Product completely airtight , waterproof , dustproof.
| 1 | Voltage | <20V |
| 2 | Current | <0.8A |
| 3 | Conduction mode | Conduction mode |
| 4 | Closed resistance | <30 Ω |
| 5 | Insulation resistance | >10 MΩ |
| 6 | Temperature range | Operating: -40℃ to 80℃ |
| 7 | Pull force of terminal | 500gf for 1 minute |
| 8 | Salt mist test | 95% RH, 40℃ for 24 hours |
| 9 | Operating lifespan | 200,000 cycles |
Q1:Do you accept OEM or ODM?
A1:Yes,OEM&ODM both acceptable,please contact our salesman for more information.
Q2:Can you send the sample for test?
A2:Yes,we can provide samples for you to test,If you don't know how to get the sample, please contact our sales staff.
Q3:Can you provide help for technical issues?
A3:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
