Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Johnson Tools
-
Model Number:
-
V2068T
-
Working Length (mm):
-
other
-
Product Name:
-

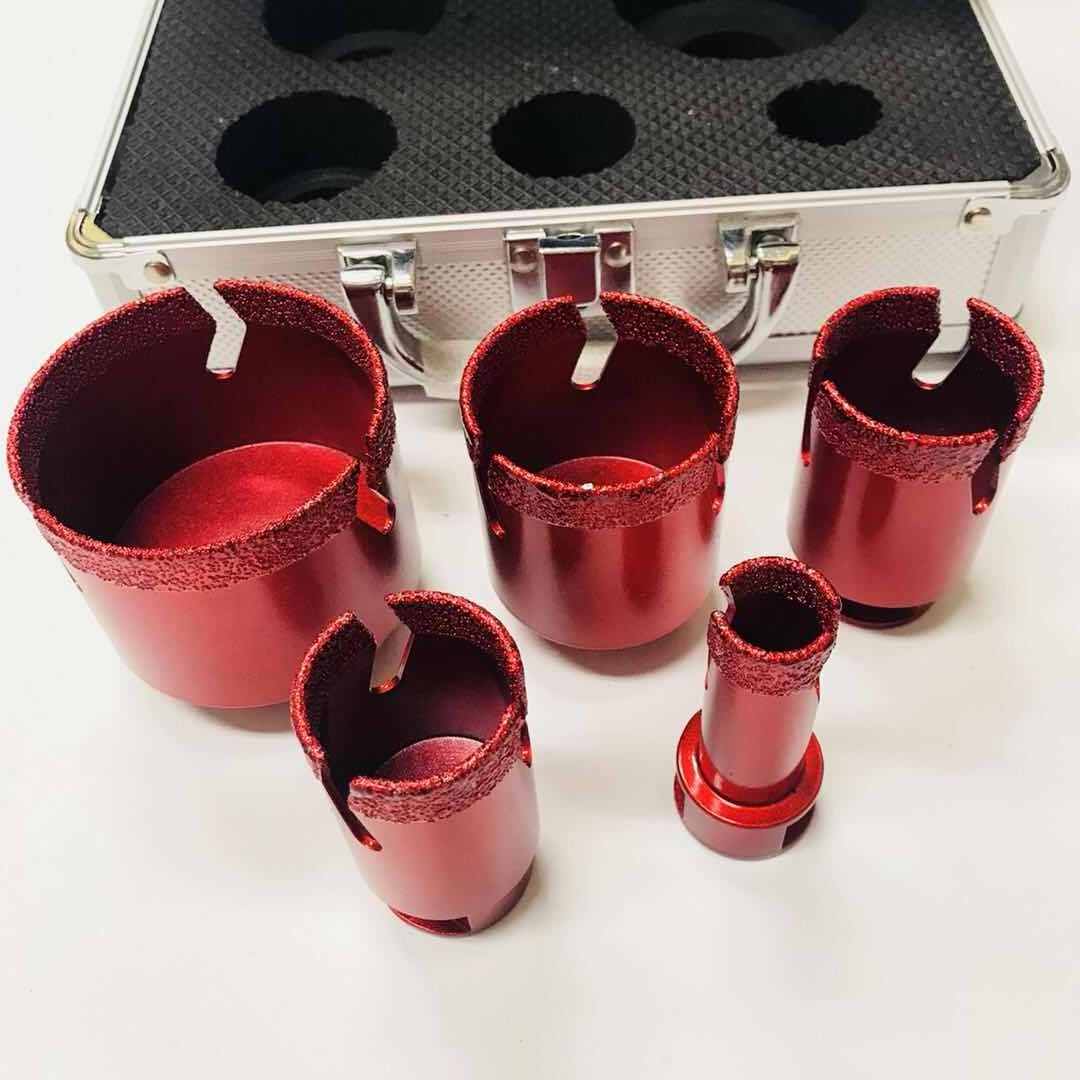

Vacuum brazed drill bit Set
-
Material:
-
diamond
-
Diameter:
-
20-68mm
-
Thread:
-
M14
-
Color:
-
Customized Color
-
Certification:
-
SGS
-
Shank:
-
62mm
-
Body Material:
-
HCS
Quick Details
-
Type:
-
Core Drill Bit
-
Use:
-
Ceramic Drilling, for drilling ceramic, procelain and tile
-
Finish:
-
Black Oxide, ZINC, Plain
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Johnson Tools
-
Model Number:
-
V2068T
-
Working Length (mm):
-
other
-
Product Name:
-
Vacuum brazed drill bit Set
-
Material:
-
diamond
-
Diameter:
-
20-68mm
-
Thread:
-
M14
-
Color:
-
Customized Color
-
Certification:
-
SGS
-
Shank:
-
62mm
-
Body Material:
-
HCS
Brazing refers to a welding method in which the brazing material and the welding piece which are lower than the melting point of the welding piece are heated to the melting temperature of the brazing material at the same time, and the gap of the solid workpiece is filled with the liquid brazing material to make the metal connection. Brazing drills use this process to attach diamond particles to the substrate to improve the performance of the drill.
|
Diameter
|
20-68mm
|
|
Length
|
62MM
|
|
Thread
|
M14
|
|
Segment Height
|
10MM
|
|
Technology
|
Vacuum Brazed
|
|
Features
|
1. Vacuum Brazed Diamond Core Bits are very aggressive ideal for drilling ceramic and porcelain tiles along with granite, marble,
and stone with super high precision while leaving smooth edges with minimal chipping. 2. Vacuum brazed technology is superior to electroplating in that the bits last much longer than electro-plated diamond bits. 3. They can typically drill more than 30 holes although life is dependent on type of material. 4. You can expect each bit to last dozens of holes drilling marble and similar stones. |
