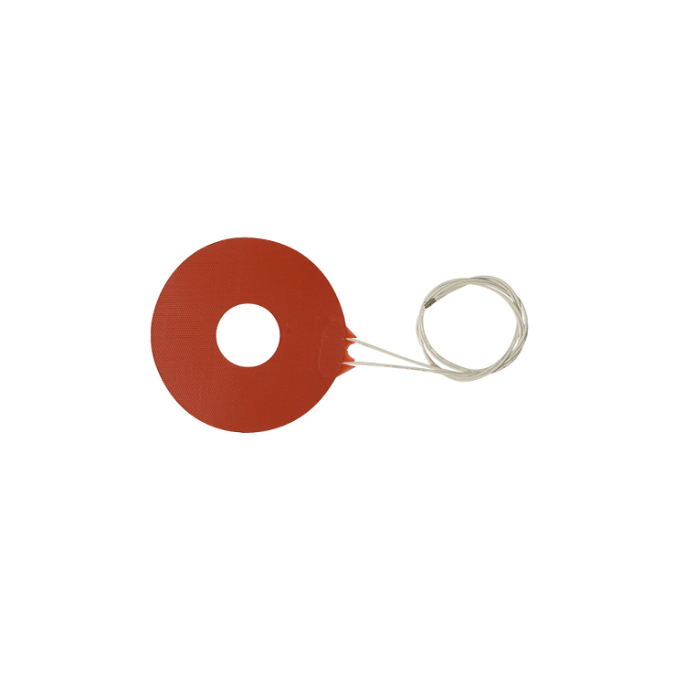

Waterproof Heat Silicone Rubber Heating Pad Mug with Heating Pad

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Heatact

Dimension(L*W*H):: YT-0033

Weight:: 0.1 KG

Material:: -

Voltage:: AC/DC 1 ~1000v

Wattage:: More than 0.1

Color:: Transparent, amber-color.

Temperature Range:: -200 to 260℃ (-328 to 500℉)

Dielectric Strength:: 1000 VRMS

Heater Flexibilty:: Good: 0.125" (3.2mm) min. bend radius

Max. watts per square inch:: 7w/ per square inch

Max. thickness over element:: 0.020 inch (0.5mm)

Insulation Methods:: Shrink bands, cement, PSA, Epoxy film, Vulcanization

Application Description:: Used in industrial and commercial applications.

Quick Details

Type:: Heating Film

Power Source:: Other

Place of Origin:: Taiwan, China

Brand Name:: Heatact

Dimension(L*W*H):: YT-0033

Weight:: 0.1 KG

Material:: -

Voltage:: AC/DC 1 ~1000v

Wattage:: More than 0.1

Color:: Transparent, amber-color.

Temperature Range:: -200 to 260℃ (-328 to 500℉)

Dielectric Strength:: 1000 VRMS

Heater Flexibilty:: Good: 0.125" (3.2mm) min. bend radius

Max. watts per square inch:: 7w/ per square inch

Max. thickness over element:: 0.020 inch (0.5mm)

Insulation Methods:: Shrink bands, cement, PSA, Epoxy film, Vulcanization

Application Description:: Used in industrial and commercial applications.

Taiwan new custom designed electric silicone coil heater

HEATER properties:	Transprent Heating Element 0.016" (0.25mm) thickness
Temperature range:	Insulation materials: -65 to 130 ℃ (-85 to 266 ℉ )
Heater flexibility:	Insulation materials: Better 0.039 inches (1mm) minimum bend radius
Maximum watts per square inch in still air at 25 ℃(77 ℉):	Insulation materials: 1inch²/3.5w
Maximum thickness over element:	Insulation materials: 0.008 inches (0.2mm)
Installation methods:	Insulation materials: Shrink bands, PSA, Epoxy film
Application description:	Polyester heater has many properties of kapton It's the cheapest one

Comparison

Insulation Materials
Heater Properties	Kapton (Polyimide)	Silicon Rubber	Mica	Polyester	Transparent
Features	0.002 "Kapton requires a 0.001" FEP adhesive	0.002 "Kapton requires a 0.001" FEP adhesive	Thickness of 0.1 mm to 1 mm	0.005 "Polyester with 0.001 " adhesive	0.005 "Polyester with 0.001 " adhesive
Description	A transparent, amber color Polyi-miele film	The red elastomer on glass fiber base	The color is White or green	Transparent flake	Transparent flake
Temperature Range	-240 to 310℃ (-400 to 590℉)	-200 to 300℃ (-328 to 572℉)	-200 to 1000℃ (-328 to 1832℉)	-25 to 120℃ (-13 to 248℉)	-25 to 120℃ (-13 to 248℉)
Dielectric Strength	1000 VRMS	1000 VRMS	1000 VRMS	1000 VRMS	1000 VRMS
Max. watts per square inch	25℃ 60w / inch²	25℃ 60w / inch²	25℃ 100w / inch²	25℃ 35w / inch²	25℃ 15w / inch²
Application Description	KAPTON is special for its stability in vacuum & solvent resistance, often used in medical & aerospace applications.	Silicon rubber, often vulcanized to a metal part and be used in industrial and commercial applications	Mica has many properties of KAPTON. It usually used on cup warmer , iron and any other high temperature product.	POLYESTER has many properties of KAPTON and it’s the cheapest one.	Transparent films that cand be used for a variety of application, including LCD, touch panel, switch glazing and goggles

Our Categories

Our Advantages

We are a professional manufacturer, develop and manufacture specifically heating elements and, as the first supplier producing heating pads in Taiwan, have many valuable years of experiences in product development. On the Specializing in the manufacture of heaters to be wound in 1979, Yung Tien is the only company producing the heating elements to be wound suitable for the use of car rear-view mirror mist-cleaning, bathroom mirror defogging, quilt warming, refrigerator de-frosting, electronic thermo flask, seat cushion warming, etc. for warming and de-fogging products.
