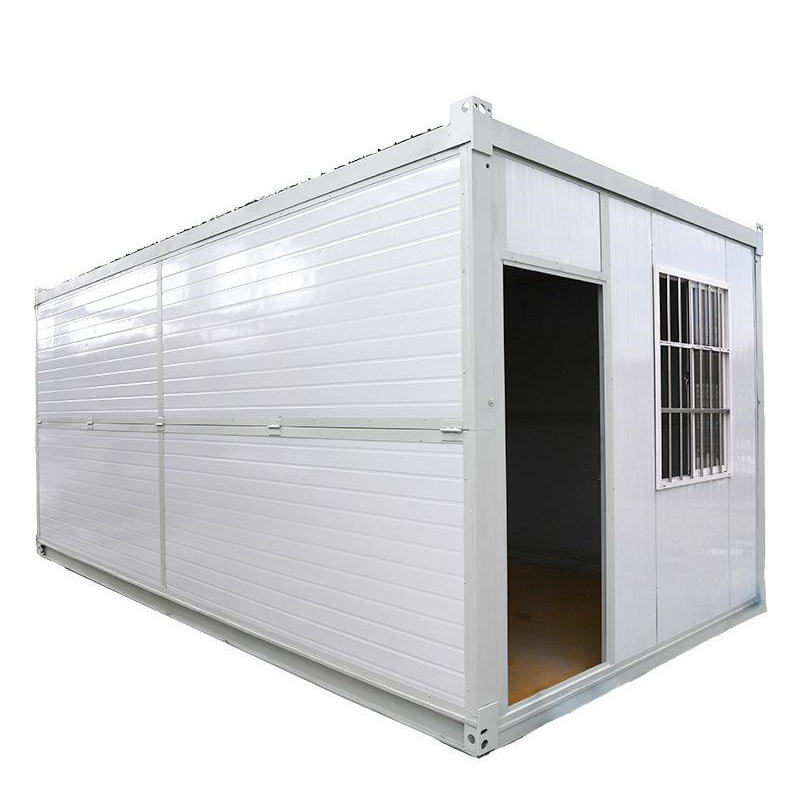

Factory Direct Supply 20ft Prefabricated Portable Modern Mobile Tiny   Fold Office Easy  Shipping Container House
Factory Direct Supply 20ft Prefabricated Portable Modern Mobile Tiny   Fold Office Easy  Shipping Container House
Factory Direct Supply 20ft Prefabricated Portable Modern Mobile Tiny   Fold Office Easy  Shipping Container House
Factory Direct Supply 20ft Prefabricated Portable Modern Mobile Tiny   Fold Office Easy  Shipping Container House
Factory Direct Supply 20ft Prefabricated Portable Modern Mobile Tiny   Fold Office Easy  Shipping Container House
Factory Direct Supply 20ft Prefabricated Portable Modern Mobile Tiny   Fold Office Easy  Shipping Container House
Factory Direct Supply 20ft Prefabricated Portable Modern Mobile Tiny   Fold Office Easy  Shipping Container House
Factory Direct Supply 20ft Prefabricated Portable Modern Mobile Tiny   Fold Office Easy  Shipping Container House

Factory Direct Supply 20ft Prefabricated Portable Modern Mobile Tiny Fold Office Easy Shipping Container House

FOB Reference Price: Get Latest Price
≥1 Pieces
US $1350
≥10 Pieces
US $1250
≥100 Pieces
US $890
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Certification:
ISO9001
Advantage:
Easy Installation
Wall:
Sandwich Wall Panel
Life Span:
20-30 Years
Window:
Aluminum Window
Style:
Modern Attrative
Installation:
Professional Guide
Layout:
Custermized

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
Uni-house
Type:
Foldable Modular House
Certification:
ISO9001
Advantage:
Easy Installation
Wall:
Sandwich Wall Panel
Life Span:
20-30 Years
Window:
Aluminum Window
Style:
Modern Attrative
Installation:
Professional Guide
Layout:
Custermized
Product Description

Product Name
Folding Flat Pack Container
Product specifications
Folded Height
H=440mm
Loading capacity
1*40HQ=10 units
Length*Width*Height(mm)
5830mm*2500mm*2470mm
Roof Form
Flat Roof
Number Of Layers
≤2 layers
Structure
Column
Specifications=50mm*160mm,Roller beam,Material Thickness=2.3mm,Material=Q235B
Roof Main Beam
Specifications=50*160mm,Roller beam,Material Thickness=2.3mm,Material=Q235B
Roof Secondary Beam
Galvanized Cold Rolled Section Steel C Type,Material Thickness=1.0mm,6 Pices,Material=Q235B
Ground Main Beam
Height=50*140mm,Roller beam,Material Thickness=2.3mm,Material=Q235B
Ground Secondary Beam
Galvanized Cold Rolled Section Steel C Type,Material Thickness=1.5mm,9 Pices,Material=Q235B
Bolt
8.8 Class High-Strength Bolts, 6
Paint
Electrostatic spraying plastic powder baking varnish ≥80μm
Roof
Roof Panel
EPS Color Steel Sandwich Panel,Thickness=50mm,Color=White-Gray, Falls freely into the water
Floor
Substrate
18mm Fireproof Glass Magnesium Board
Panel
Insulation Cotton
50mm Thickness Color Steel EPS Sandwich Panel,Class B Fire Protection
Color steel Plate
Panel Coler Streel Plate Thickness=0.4mm
Door
Specification
Width*Height=840mm*1900mm
Material
Steel Door, Concealed Buckle Lock
Window
Specification
950mm*1100mm
Fram Material
Plastic Steel
Glass
Single Glass
Other
Folding hardware
Special Parts, No Hinges

Folding box features:

n 1. Safe and efficient -- convenient installation, fast, before and after the end plate to push in, waist to the middle folding design, installation personnel into the box can be pushed out, a pull molding, fast check-in.

n 2. Strong sealing performance -- the folding place can be seamless splicing of the buckle groove design, which can be rainproof and waterproof. The box frame is made of aluminum, with a simple appearance of the atmosphere and high grade.

n 3. Price advantage -- professional assembly line equipment production and processing, raw materials to cooperate with large steel enterprises, cost compression, profile structure to save production sequence greatly reduce the cost.

n 4. Save freight -- tailor-made folding room export loading size, 40 feet container can hold 10 sets of folding room.

Office: Removable, Expandable, Reusable, 20 Years Life

Type: Flat Pack Prefab Container Office

Application: Temporary offices in construction sites, office built in workshops, low-cost outdoor offices.

Advantages: Short installation time, 1-15 days, depending on the project, a single container office only needs one day to complete the installation.

Optional: Air Conditioner, Bed, Table, Chair

For other electrical appliances and furniture, we can also provide options, or we provide the size, and the customer can purchase themself.

Free Design Service: CAD + Effect Drawing More than 15 designers and engineers, while providing professional advice,

can also ensure compliance with customer requirements.

Supporting Facilities

Customized Service:Size, Appearance, Color, Material, etc., Can be customized
