Quick Details
-
Brand Name:
-
Otywell
-
Model Number:
-
OT131
-
Product name:
-
Monitor
-
Detecting Gas:
-
H2
-
Usage:
-
Personal
-
Measure Range:
-
0-100ppm
-
Color:
-
Black
-
Power supply:
-
Rechargeable Lithium Battery
-
Alarm Type:
-
Sound
-
Weight:
-
500g
-
Display:
-
LCD Display
Quick Details
-
Type:
-
pumped model
-
Warranty:
-
12 month, 12 Months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Otywell
-
Model Number:
-
OT131
-
Product name:
-
Monitor
-
Detecting Gas:
-
H2
-
Usage:
-
Personal
-
Measure Range:
-
0-100ppm
-
Color:
-
Black
-
Power supply:
-
Rechargeable Lithium Battery
-
Alarm Type:
-
Sound
-
Weight:
-
500g
-
Display:
-
LCD Display

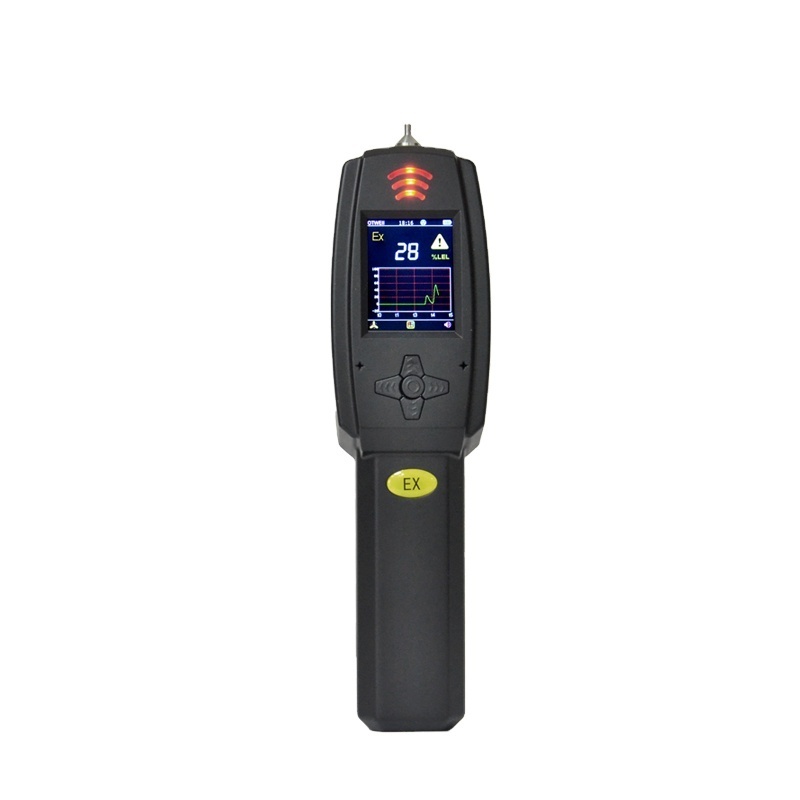

OT131 pumped gas detection
OT131 gas detector is a pump-suction ultra-high sensitivity gas leakage detector. Electrochemistry sensor is more suitable for locating and detecting leakage gas. It is compact, easy to operate, easy to carry, and can also be attached with a flexible probe, comfortable handle. It also can show a unique concentration curve.
Product features
Original imported sensor
Rapid detection of gas leakage points
Optional extended flexible probe with adjustable sensitivity
Low voltage alarm and automatic shutdown
Sensor failure detection alarm
Quick warm-up and quick response time
English color LCD display
Curve display alarm value
Alarm record query, alarm point setting
Online translation, password management and other functions
Technical Parameters
Detection gas: choose one gas from the gas list below;
Detection method: pump suction
Detection principle: electrochemistry, catalysis, heat conduction, infrared
Detection range: different sensors have different ranges (see attached table)
Display: color LCD display
Accuracy: 3% FS
Interface definition: U3 port (USB)
Power source: 3.7V 2000mAh
Power supply method: Lithium ion rechargeable battery
Alarm: Three-level alarm of sound and light vibration
Operating environment: temperature -10 ℃ ~ 50 ℃; humidity: ≤95% RH (no condensation)
Storage environment: temperature -40 ℃ ~ 70 ℃; humidity: ≤95% RH (no condensation)
Response time: <10s
Sensitivity: 1PPM / 1% LEL
Explosion-proof grade: intrinsically safe
Security level: Ex ib IIB T3 Gb
Alarm point: adjustable
Standby time: combustible gas> 8h toxic gas about 300 hours
Weight: 500g
Size : (254 × 68 × 48) mm (excluding probe rod)
Detection instrument: built-in pump suction detection method, double buzzer prompt and its growing light indication
