- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
500
-
Voltage:
-
200V
-
Place of Origin:
-
China
-
Brand Name:
-
Huasheng
-
Dimension(L*W*H):
-
(L)430*(W)510*(H)1400mm
-
Product name:
-

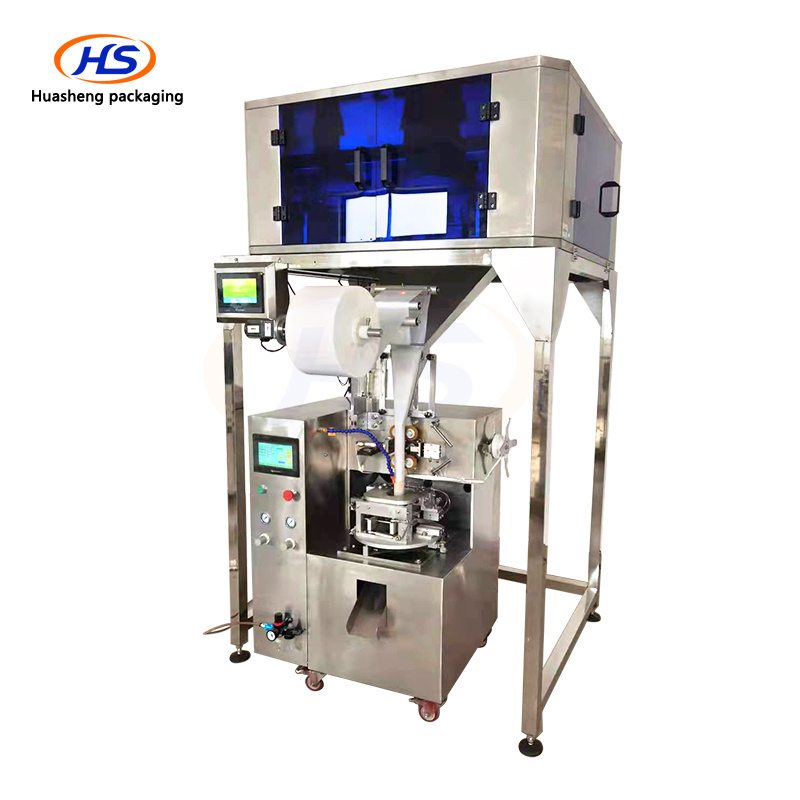

Automatic Vertical Packing Machine
-
Bag type:
-
Pyramid triangle bag
-
Sealing type:
-
Ultrasonic Sealing Cut
-
Packing speed:
-
35-500bags/min
-
Film material:
-
mesh nylon fabric
-
Machine material:
-
Stanless Steel
-
Bag length:
-
0-160mm
-
Bag width:
-
80mm
-
Measuring range:
-
1.5-5g
-
Machine weight:
-
500kg
-
Marketing Type:
-
New Product 2021
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Laminating, Capping, COATING, Sealing, BOXING, Embossing
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Pouch, case
-
Packaging Material:
-
Plastic, Paper, Wood
-
Weight (KG):
-
500
-
Voltage:
-
200V
-
Place of Origin:
-
China
-
Brand Name:
-
Huasheng
-
Dimension(L*W*H):
-
(L)430*(W)510*(H)1400mm
-
Product name:
-
Automatic Vertical Packing Machine
-
Bag type:
-
Pyramid triangle bag
-
Sealing type:
-
Ultrasonic Sealing Cut
-
Packing speed:
-
35-500bags/min
-
Film material:
-
mesh nylon fabric
-
Machine material:
-
Stanless Steel
-
Bag length:
-
0-160mm
-
Bag width:
-
80mm
-
Measuring range:
-
1.5-5g
-
Machine weight:
-
500kg
-
Marketing Type:
-
New Product 2021
Products Description
Feature
1.
Automatic does bag-making,measuring volume & filling, bag sealing, cutting and counting capacity, etc.
2. Automatic PLC system, Touch screen, Easy to operate
3.
Inner bag is made by filter paper, which can be automatically packed with thread and tag.
3.
It can adjust the size of inner bag as request of customers, and eventually achieve the ideal package quality so as to upgrade the sales value for your goods and then bring more benefits.
Details
|
Bag style
|
Pyramids tea bag with tag & string
|
|
Measure method
|
Volumetric cups
|
|
Measure range
|
1.5g-2g/bag or 2-3g/bag
|
|
Packing speed
|
35-45bags/min
|
|
Sealing style
|
Ultrasonic sealing
|
|
Bag size
|
L 40-80 mm ; W 60-90 mm
|
|
String
|
150mm
|
|
Tag size
|
L 25 mm ; W 25 mm
|
|
Film material
|
Nylon, polyester mesh, non-woven fabrics(bag); Paper/PE(tag),Cotton wire roll(string)
|
|
Voltage power
|
AC 220V 50Hz 1-phase
|
|
Compressed air
|
0.3 cbm/min 0.8Mpa
|
|
Control method
|
PLC+ Touch screen
|
|
Machine structure
|
SUS 304
|
|
Machine dimension
|
900*800*1800 mm
|
|
Weight
|
N.W: 500kg G.W: 550kg
|
|
Package
|
Pallet with plywood case
|
Product Applications
Application:
Suitable for packing products such a
s
green tea, black tea, rose tea, chrysanthemun tea, scented tea, healthy, skin care tea, herbal tea, kenya tea
.
Bag Type
Recommend Products
About us
Company introduction:
Guangzhou Huasheng Packaging Machinery Manufacturing Co.,ltd
is professional factory for manufacturing automatic
packing machine
and
filling machine
. With
more than 10 years
of experience in packing machinery industry, we had developed several product series, such as
granule VFFS machine
,
Powder VFFS machine
,
Liquid VFFS machine
and
irregular product VFFS machine
.
We also had implemented a strict and complete quality control system , which ensures that each product can meet customer’s quality requirements. Besides, all of our products have been strictly inspected before shipment. And under this quality system, we are and we will always keep developing and producing new products for customers all around the world.
We also had implemented a strict and complete quality control system , which ensures that each product can meet customer’s quality requirements. Besides, all of our products have been strictly inspected before shipment. And under this quality system, we are and we will always keep developing and producing new products for customers all around the world.
Your Success, Our Glory:
Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
Our Service
Why choose us
New customer feedback:
Your service is very good!
Feedback from old customers:
Your machine is of very good quality
. After several years of use, the machine still runs normally, with very few failures.
Most of them will
choose us again
if they need to buy more machines!
Pre-sale service
1. Inquiry and consulting support.
2. Our Sample machine for client's product test.
3. View our Factory.
Other terms & condition:
1. Production time: 10-35 days after deposit and confirming details;
2. Payment term: 30% prepayment and 70% before delivery;
3. Payment method: T/T bank or Ali online order
After-sale service
1. Warranty period : 12month since on board date but no more than 13monthes .
2. Warranty range don't include damageable parts like heating tube, thermo-couple, temperature controller, photocell and blade;
3. Factory would provide all parts on the machine during the whole machine running time .
4. When needs go abroad to do on door service , buyer would be in charge of Visa, round tickets, living &commodity & traffic cost, salary USD120/day.
5. Manufacturer will provide machine testing video/ sample tear video /sample close view pictures , if need inspection report, inspection fee would be charged by buyer.
6. Online tech support: Wechat/ Whatsapp /Email/QQ
1. Inquiry and consulting support.
2. Our Sample machine for client's product test.
3. View our Factory.
Other terms & condition:
1. Production time: 10-35 days after deposit and confirming details;
2. Payment term: 30% prepayment and 70% before delivery;
3. Payment method: T/T bank or Ali online order
After-sale service
1. Warranty period : 12month since on board date but no more than 13monthes .
2. Warranty range don't include damageable parts like heating tube, thermo-couple, temperature controller, photocell and blade;
3. Factory would provide all parts on the machine during the whole machine running time .
4. When needs go abroad to do on door service , buyer would be in charge of Visa, round tickets, living &commodity & traffic cost, salary USD120/day.
5. Manufacturer will provide machine testing video/ sample tear video /sample close view pictures , if need inspection report, inspection fee would be charged by buyer.
6. Online tech support: Wechat/ Whatsapp /Email/QQ
Packing & Delivery
Shippment:
1. Upon receipt of payment , delivery date will be in
10-30 working days
2. First, the machine will be wrapped by the pretective film ;
3. Then, put the machine into wooden box
4. Loading the box into the truck by forklift, delivery By Air, by Sea or by Express
5. Shipment cost will depend on the destination, ship way and the weight of the goods
2. First, the machine will be wrapped by the pretective film ;
3. Then, put the machine into wooden box
4. Loading the box into the truck by forklift, delivery By Air, by Sea or by Express
5. Shipment cost will depend on the destination, ship way and the weight of the goods
Contact me
FAQ
Q:What is your Installation Services?
Installation Services are available with all new machine purchases.
We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Q:What about your Guarantee of quality?
The machine is 1 year warranty, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service
Q:How about the after-sale service?
(1)More than 12 hours after-sale online service one day.
(2) we have engineers available to service machinery overseas.The service charge, include: service fee USD120/day, VISA fee, board round-trip ticket, room and eat in are buyer's side.
Q: How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
Q:Do you also offer the material film?
Yes, we can offer you the plastic/paper roll film, we have a long term cooperated supplier for roll film and the price is favorable.
Q:If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-design provided.
Q: If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical department can help to analysis, design and test the new products you offered.
Q:Can I visit your factory?
Sure, Our factory address : NO.2 Pingbu Avenue West, Huadu District, Guangzhou, China 510800
Installation Services are available with all new machine purchases.
We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Q:What about your Guarantee of quality?
The machine is 1 year warranty, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service
Q:How about the after-sale service?
(1)More than 12 hours after-sale online service one day.
(2) we have engineers available to service machinery overseas.The service charge, include: service fee USD120/day, VISA fee, board round-trip ticket, room and eat in are buyer's side.
Q: How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
Q:Do you also offer the material film?
Yes, we can offer you the plastic/paper roll film, we have a long term cooperated supplier for roll film and the price is favorable.
Q:If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-design provided.
Q: If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical department can help to analysis, design and test the new products you offered.
Q:Can I visit your factory?
Sure, Our factory address : NO.2 Pingbu Avenue West, Huadu District, Guangzhou, China 510800
