Quick Details
-
Screw Speed (rpm):
-
60 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XST
-
Weight:
-
1800 KG
-
Product Name:
-

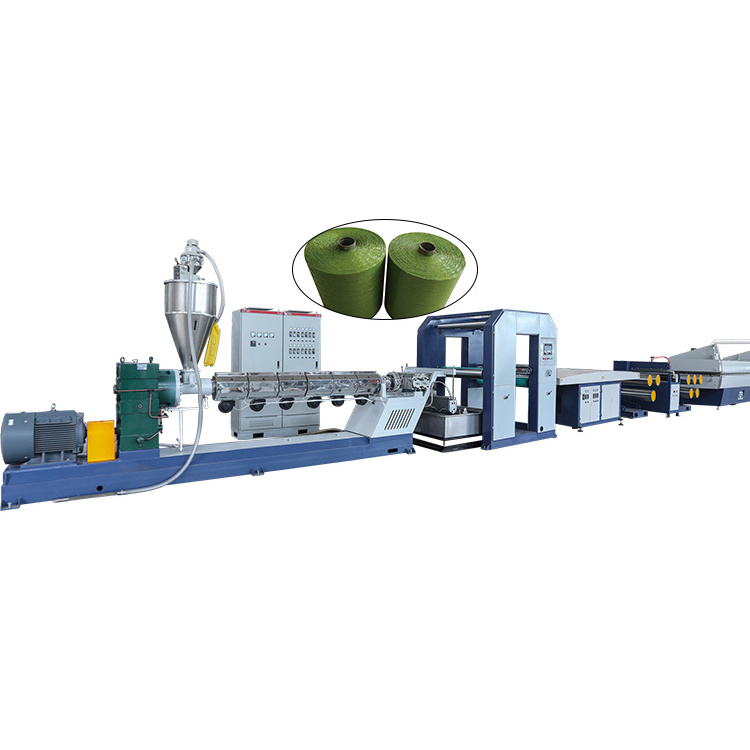

Artificial Grass Yarn Extruder Machine
-
For Material:
-
PE
-
Customize:
-
support
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
33:1
-
Screw diameter (mm):
-
110/120
-
Screw Speed (rpm):
-
60 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XST
-
Weight:
-
1800 KG
-
Product Name:
-
Artificial Grass Yarn Extruder Machine
-
For Material:
-
PE
-
Customize:
-
support
1) The extrusion line is self developed on the basis of advanced technology at home and abroad.
2) The equipment is easy to operate, the control system is advanced, and the main motors are all
controlled by inverter, which assure the stability of product quality.
3) The equipment is suitable for the production of polyethylene ( PE ) materials.
4) The device can be used for the production of yarn for grass carpet, PE tarpaulin and so on.
PERFORMANCE & CHARACTERISTICS
1) The screw is made of 38CrMoAIA high-quality alloy steel material after nitriding treatment and special processing.
2) High precision die to ensure the film thickness uniformity.
3) The die adopts metering pump automatic tracking control system to ensure the thickness of the film is same. ( optional )
4) Stretching oven plate Install insulation cover, reduce heat loss.
5) Take-off roller surface are plated with hard chrome to increase surface hardness,it is not easy to rust and has longer service life.
6) Use double-layer hot air oven , improved yarn setting effect.
7) PLC touch screen control is optional, it adopts advanced intelligent control system, centralized control of each function and has the function of data storage, fault alarm, easy operation.
|
Main technical parameters
|
|
|
||
|
MODEL
|
110*33-1300
|
120*33-1600
|
||
|
Main material
|
PE
|
PE
|
||
|
Capacity (kg/h)
|
125-220
|
180-250
|
||
|
Main motor (kw)
|
75
|
110
|
||
|
Screw diameter ( mm )
|
Φ110
|
Φ120
|
||
|
L/D ratio
|
33:1
|
33:1
|
||
|
Screw and barrel material
|
38CrMoAIA
|
38CrMoAIA
|
||
|
Screw speed ( rpm )
|
10-90
|
10-90
|
||
|
Double-layer hot air oven power (kw)
|
90
|
120
|
||
|
Linear speed (m/min)
|
100-160
|
100-160
|
||
|
Die lip length (mm)
|
1300
|
1600
|
||
|
Fiber weight range (Dtex)
|
5000-12000
|
5000-12000
|
||
|
Drawing ratio
|
4-8
|
4-8
|
||
|
Washer thickness (mm)
|
20
|
20
|
||
|
Single spindle magnetic winder (spindles)
|
64
|
96
|
||
|
Installed power (kw)
|
325
|
375
|
||
|
Actual power (kw)
|
195
|
225
|
||
|
Machine size (L×W×H) About m
|
35*3*3
|
37.5*3*3
|
||
|
Weight (About t)
|
18
|
20
|
||
Q: Can we go to your factory discussing more detail and checking the quality of the machine?
A: Yes, welcome to our factory and we will do our best to help you.
Q: Can we inspect the machine before delivery?
A: Yes, you can come and inspect the delivery. If you can not come, we have specialized engineer team to test the machine and inspect the delivery. We guarantee that you can receive a totally good machine.
Q: If we have problem on machine or production, can you help us?
A: Yes, we offer the Preventative Maintenance and After Sales Service. We test the machine before delivery. We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period. If there is problem in using, you can tell us. Our engineer team will do best to help you solve the problem. Our engineers can go to your factory and help you solve the problem. We provide longlife service for the machine.
Q: Are you a factory or trade company?
A: We are a factory of manufacture extruder machine, yarn twister machine, rope machine, winding and packing machine.
A: Yes, welcome to our factory and we will do our best to help you.
Q: Can we inspect the machine before delivery?
A: Yes, you can come and inspect the delivery. If you can not come, we have specialized engineer team to test the machine and inspect the delivery. We guarantee that you can receive a totally good machine.
Q: If we have problem on machine or production, can you help us?
A: Yes, we offer the Preventative Maintenance and After Sales Service. We test the machine before delivery. We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period. If there is problem in using, you can tell us. Our engineer team will do best to help you solve the problem. Our engineers can go to your factory and help you solve the problem. We provide longlife service for the machine.
Q: Are you a factory or trade company?
A: We are a factory of manufacture extruder machine, yarn twister machine, rope machine, winding and packing machine.
