Quick Details
-
Brand Name:
-
phocos controller
-
Model Number:
-
CIS10 CIS20
-
Work Time (h):
-
24hour
-
Max PV Power:
-
500
-
Max PV Voltage:
-
24v
-
Certificate:
-
ce rosh
-
Warranty:
-
1 year
-
Battery Type:
-
Lead Acid ,Gel Battery
-
Type of Protection:
-
IP68 (1.5 M, 72 H)
-
Cut-off Voltage:
-
11-12V 22-24V
-
Undervoltage Protection:
-
10.5/21V
-
Load Output Control Mode:
-
Single Timer, Lighting
-
working tempreture:
-
-40°C--60°C
-
Self- Consumption:
-
Max.6mA
-
Feature:
-
High Efficiency Charging Method
-
Control Mode:
-
Intelligent Control Pwm Solar Controller
Quick Details
-
Type:
-
PWM
-
Application:
-
Charger Controller, Solar System Controller
-
Place of Origin:
-
Germany
-
Brand Name:
-
phocos controller
-
Model Number:
-
CIS10 CIS20
-
Work Time (h):
-
24hour
-
Max PV Power:
-
500
-
Max PV Voltage:
-
24v
-
Certificate:
-
ce rosh
-
Warranty:
-
1 year
-
Battery Type:
-
Lead Acid ,Gel Battery
-
Type of Protection:
-
IP68 (1.5 M, 72 H)
-
Cut-off Voltage:
-
11-12V 22-24V
-
Undervoltage Protection:
-
10.5/21V
-
Load Output Control Mode:
-
Single Timer, Lighting
-
working tempreture:
-
-40°C--60°C
-
Self- Consumption:
-
Max.6mA
-
Feature:
-
High Efficiency Charging Method
-
Control Mode:
-
Intelligent Control Pwm Solar Controller
AC DC Hybrid Solar Street Light 12v 24v Solar Charge Controller with CE ROHS
Phocos controller
1.ac dc hybrid solar charge controller;
2.12V/24V Voltage
3.IP68 complete water-proof
4. working tempreture: -40°C--60°C
5.with micro-computer control system
6.light-control mode or time- control mode
7.supporting half-power working mode
We are sales agent for phocos controller since 2007 year.
PRODUCT FUNCTION
1. Over protection: could chose LVD mode or SOC mode
2. Overvoltage protection: 12V system 15.5V, 24V system 31V cut off the load
3. Low-voltage protection: 12V system 10.5V, 24V system 21V cut off the load
4. Over-current protection: When the actual current is 110% greater than the rated current, Delay of 120 s to cut off the load
When the actual current is 150% greater than the rated current, Delay of 10 s to cut off the load
When the actual current is 200% greater than the rated current, Delay of 3 s to cut off the load
5. Short-circuit protection: When the actual current is three times greater than the rated current, immediately cut off the load
6. Reverse polarity protection
7. Overheating protection
CIS Series controller descripton:
- PV-Systems exposed to extreme weather/environmental conditions (street lights, navigation buoys, etc.) have increased risk for damage in the power electronics. In order to assure reliable battery charge control under such conditions, Phocos developed an encapsulated charge controller (IP68) to prevent corrosion: CIS.
-
CIS is an industrial-grade charge controller that is suitable for all practical PV applications. High-quality, 4-stage PWM-charging is combined with amazing features such as: low-voltage disconnect, flexible load timer functions, and a multi-LED system status display. CIS is available in two versions:
• Dual load to independently control two loads.
• Output Dimming to save energy in lighting applications. - The CIS has no moving parts, switches or buttons. Settings such as battery type, deep discharge thresholds, timers, etc. are made quickly and easily via infrared remote control accessory.
- All devices are connected to the controller by supplied lead wires rather than wire terminals. This feature eliminates the risk of damage from external influences (corrosion, dust, water, bugs, chemicals, physical shock) where components make electrical contact to the controller.
- The extremely compact aluminum housing even allows for mounting CIS inside street light poles. CIS was developed in accordance with well-established Phocos standards incorporating the latest technology, highest-quality and best possible cost/performance ratio.
- The CIS family is making room for some new members: the CIS-N and CIS-LED. The CIS-N and CIS-LED series have all the great features of the original CIS series, with the added benefit of negative grounding.
- The CIS-N is designed especially for applications in the gas and oil industry, such as remote monitoring, weather stations, valve controlling, SCADA, and many more.
- The CIS-LED combines three functions in one: Charge controller + flexible timer + LED drivers, making it perfect for users of solar LED lamps and solar LED street lights.
- Robust Aluminum Housing
- Epoxy Encapsulated PCB to Prevent Corrosion (IP68)
- Compact Size
- Infrared Remote Control Programming Accessory (CU)
- Intelligent Timer Functions
- Widely Programmable
- External Temperature Sensor (Optional)
- 4 Stage Battery Charging (Main, Float, Boost, Equalization)
- Dual load or Dimmable Load Output
- Automatic System Voltage Recognition (12/24 V)
CIS product parameter
|
model |
CIS 5/10/20 |
CIS-2L5/10/20 |
|
rate voltage |
12/24V automatic identification |
|
|
maximum charging current |
5/10/20A |
|
|
maximum discharging current |
5/10/20A(maximum) |
|
|
floating charge voltage |
13.8/27.6V(25degree) |
|
|
the main charge voltage |
14.4/28.8V(25degree);30 minutes per day |
|
|
Powerful charge voltage |
14.8/29.6V(25degree) (Storage battery voltage<12.3/24.6V activation) (Two hours per time) |
|
|
equalizing charge voltage |
14.8/29.6V(25degree) (Storage battery voltage<12.1/24.2V activation) (at least one time every 30 days, two hours per time) |
|
|
Maximum solar panel voltage |
30V(12V system);55V(24V system) |
|
|
naturally current consumption |
5-8mA(12V system) 6-10mA(24V system) |
|
|
low cut off voltage |
LVD:11-19V(12V system); 22-23.8V(24V system) SOC:11-12.02V(12V system) 22-24V(24V system) |
|
|
load reconnection voltage |
12.8V(12V system); 25.6V(24V system) |
|
|
The output power adjustment range |
0-100% load rated power |
|
|
Ground connection |
Positive pole connect the ground |
|
|
ambient temperature range |
-40degree-+60degree |
|
|
Recommended wire diameter |
5A:1.5mm 2 ,10A:2.5mm 2 ,20A:4mm 2 |
|
|
Level of protection |
IP68( 1.5m water depth 72 hours) |
|
|
size(WxHxD) |
82x58x20mm |
|
|
weight |
150g |
|
CIS product overview
CIS controller is special designed for solar street light, provide perfect, multiple protection for solar street lamps’ electrical systems, and through good control strategy, effective extend the system’s power supply time
1. protection grade: IP68, effective dust-proof and water-proof
2. sturdy and durable aluminium alloy case, anti-corrosion
3. four stages charge control(main charge,powerful charge,equalizing charge,float charge)
4 Single and double street light output contro l flexible
5. infrared remote controller (CU) set, simplicity and convenience operator
6. LED status indicate
7. at night all the time,morning and twilight double time light-operated/time control timing function
8. external temperature sensor, automatic temperature compensation
9. output power regulatory function, saving energy and protecting environment.
10. compact structure, small volume, easy to install

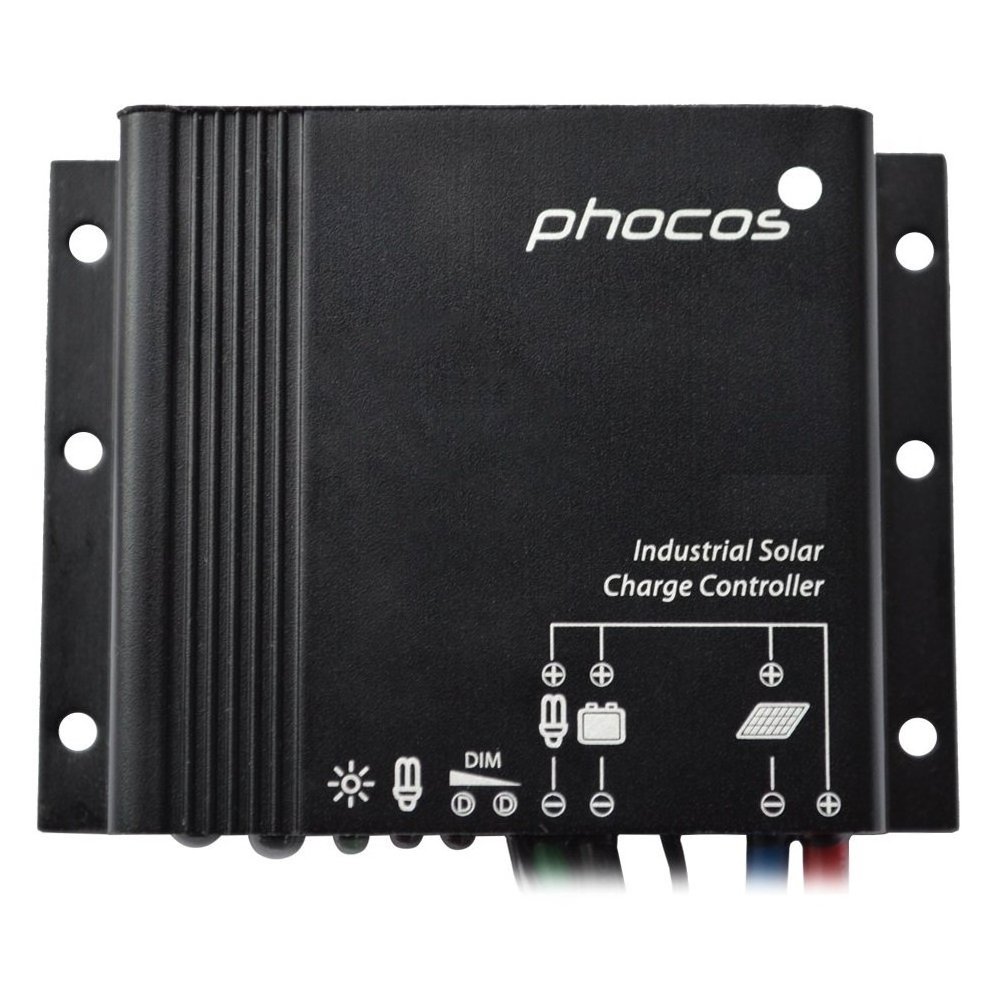

Picture for IP68 water proof grade mppt and pwm phocos solar charge controller
Usage for solar street light
