Quick Details
-
Voltage:
-
380V 50Hz 3Phases
-
Power:
-
32KW
-
Dimension(L*W*H):
-
12000*800*1200mm
-
Weight:
-
9000 kg
-
Product name:
-
Fire Damper Frame Roll Forming Machine
-
Keywords:
-
Duct Production Line
-
Selling point:
-
High-accuracy
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Operation:
-
Automatic
-
Electric Control system:
-
Fully Automatic PLC(imported Brand),transducer, touch panel
-
Material:
-
GI /GL
-
Profile design:
-
custom
Quick Details
-
Production Capacity:
-
15m/min
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
Liding
-
Voltage:
-
380V 50Hz 3Phases
-
Power:
-
32KW
-
Dimension(L*W*H):
-
12000*800*1200mm
-
Weight:
-
9000 kg
-
Product name:
-
Fire Damper Frame Roll Forming Machine
-
Keywords:
-
Duct Production Line
-
Selling point:
-
High-accuracy
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Operation:
-
Automatic
-
Electric Control system:
-
Fully Automatic PLC(imported Brand),transducer, touch panel
-
Material:
-
GI /GL
-
Profile design:
-
custom
Products Description
Hvac Square Fire Volume Control Damper Vcd Frame Roll Forming Making Production Line
High precision product,PLC control
Full auto operation
Product Specifications
AUTOMATIC Fire Damper Frame ROLL FORMING MACHINE
TECHNICAL SPECIFICATION
Raw material width： around 196 mm
Material thickness：0.8mm to 1.2mm
Material： Galvanized and stainless sheet
Production speed: around 6M/min
Production length： ≥3000mm
Equipment total installed capacity: Around 20KW
|
Machine Name
|
|
Explain
|
Quantity
|
Motor(KW)
|
|
|
De-coiler
|
|
Manual Expanding
|
1 Set
|
Manual
|
|
|
Leveling System
|
|
9 Rollers
|
1 Set
|
2.2
|
|
|
Punching Sytem
|
Servo Feeding
|
|
1 Set
|
1.3
|
|
|
|
Punching-1
|
The Middle of punching flanging part
|
1 Set
|
5.5
|
|
|
|
Punching-2
|
Punching head of the flanging part
|
1 Set
|
|
|
|
Main Roll Forming Machine
|
|
|
1 Set
|
5.5
|
|
|
Hydraulic Cutting System
|
|
|
1 Set
|
4
|
|

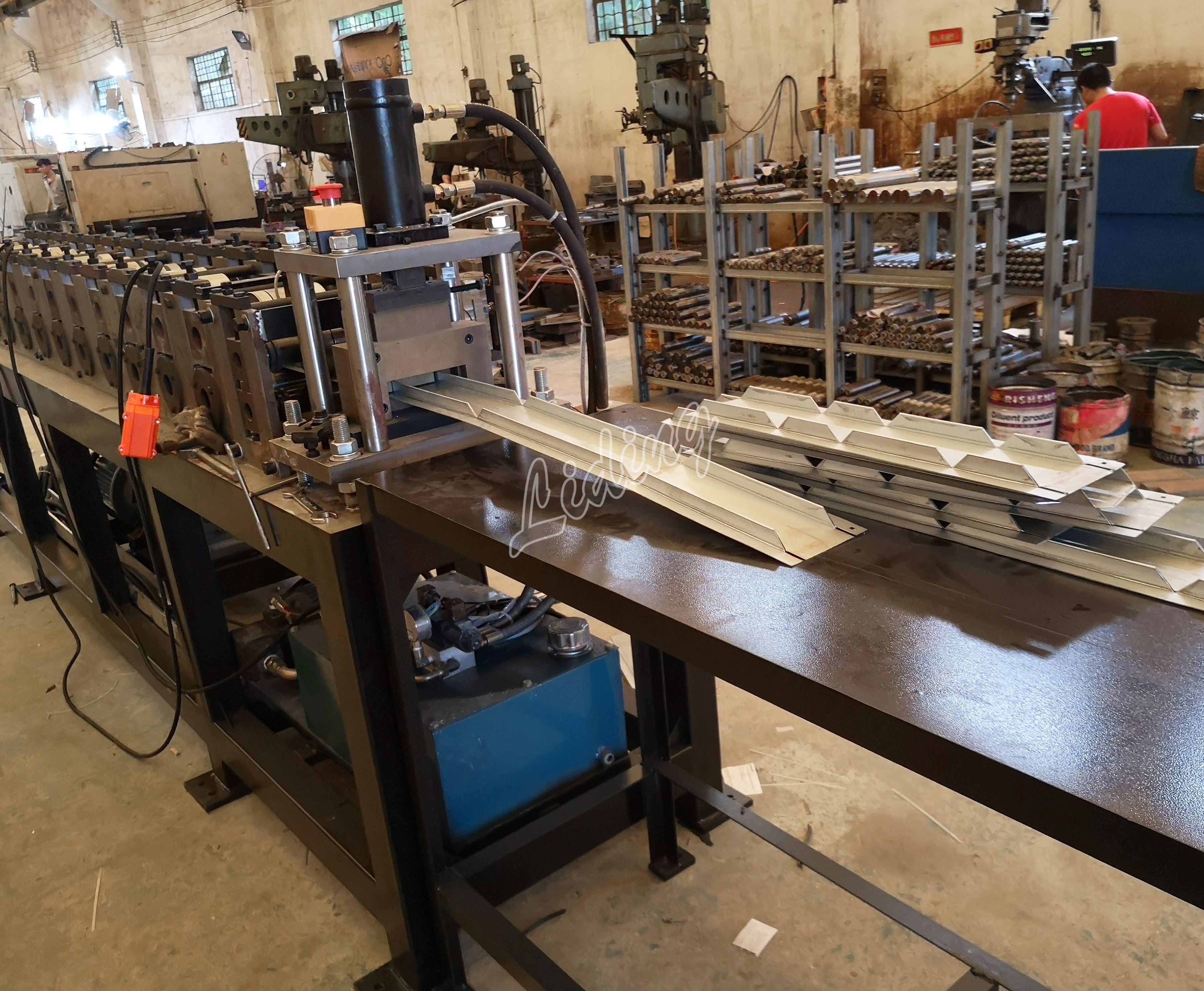

Details Images
30 years of production experience to provide customers with solutions
Hvac Square Fire Volume Control Damper Vcd Frame Roll Forming Making Production Line
