Quick Details
-
Product name:
-
Fire Hose Reel nozzle
-
Material:
-
Brass plastic
-
Size:
-
19mm 25mm 33mm
-
Working Pressure:
-
10bar
-
Certificate:
-
Manufacturer and certified to EN671
-
Keyword:
-
fire hose reel nozzle
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ANSU
-
Model Number:
-
Fire Hose Reel Nozzle
-
Product name:
-
Fire Hose Reel nozzle
-
Material:
-
Brass plastic
-
Size:
-
19mm 25mm 33mm
-
Working Pressure:
-
10bar
-
Certificate:
-
Manufacturer and certified to EN671
-
Keyword:
-
fire hose reel nozzle
Description:

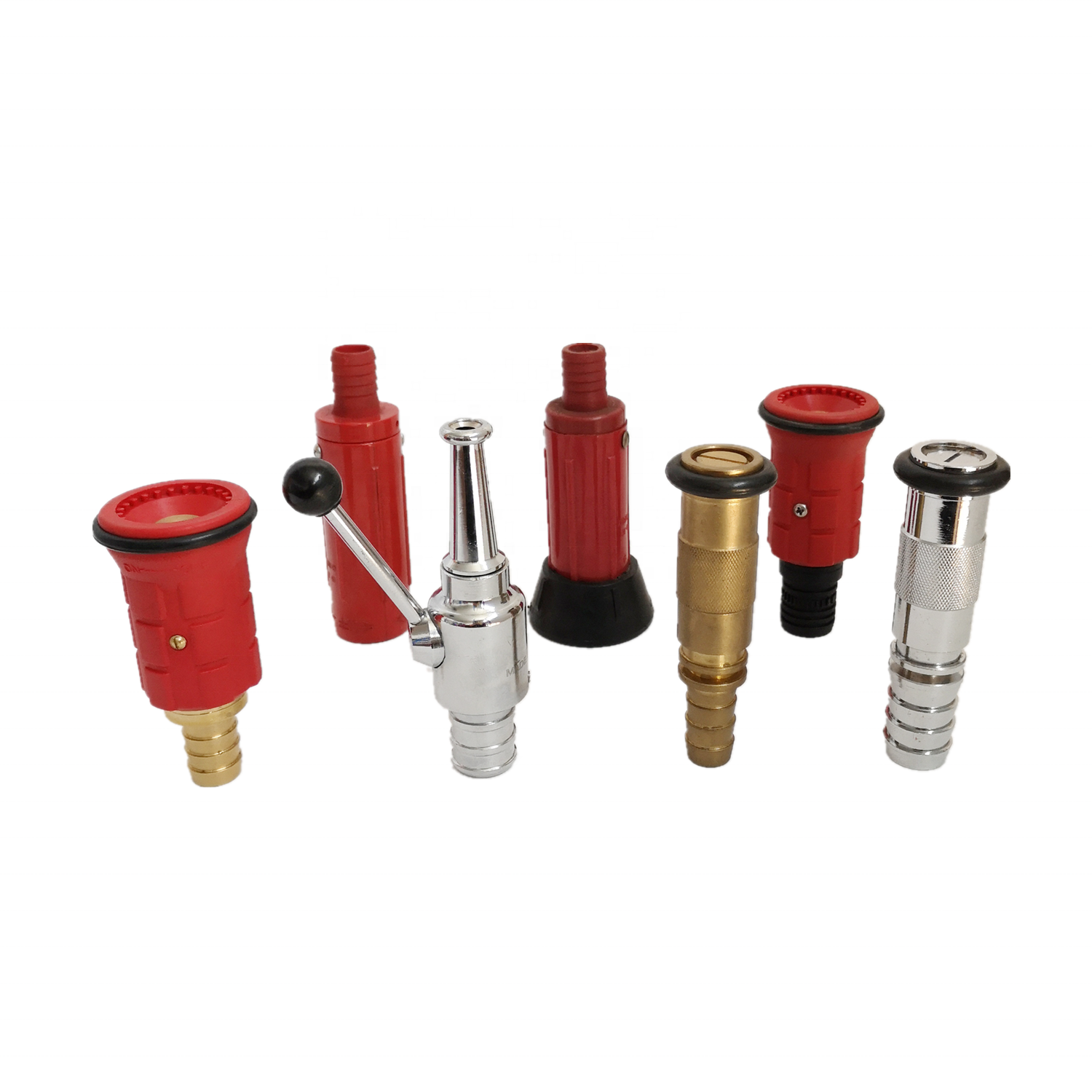

Fire hose reel nozzles are for
use in hose reel of water-supply service outdoor areas where the climate is mild and
freezing temperatures do not occur. Fire hose reel nozzles have many kinds of type,like brass one,plastic one and nylon one
, fitting with rubber hose to assemble to the fire hose reel
Key Specificatoins:
Material:Brass
Inlet: 4/3" / 1"
Outlet:19mm,25mm
Working pressure:10bar
Test pressure: Body test at 16bar
Manufacturer and certified to EN671
Processing Steps:
Drawing-Mold-Casting-CNC Maching-Assembly-testing-Quality Inspection-Packing
Fire Spray Jet Nozzle,Fire Fighting Spray Nozzle
Fire fighting hose reel spray nozzle
|
P roduct Name |
Size |
H(mm) |
W(mm) |
Inlet |
Outlet |
|
Fire Fighting Hose Reel Spray Nozzle |
DN19 |
100 |
50 |
19mm |
D6 |
|
DN25 |
100 |
50 |
25mm |
D8 |
|
|
DN25 |
80 |
50 |
1'' BSP |
D9 |
|
|
DN25 |
105 |
55 |
Storz-D |
D10 |
Fire Jet Spray Nozzle /Spray jet fire hose nozzle
1) size: DN19, DN25
2) material: aluminum, plastic
3) type: storz
4) qualified member of NFPA
Fire Jet Spray Nozzle is a device attached to the end of a fire hose that directs, shapes and regulates the flow of the water or fire fighting agent pumped into the hose.
A) type: Storz type
B) size: 3/4'' ,1", 2"
C) We ensure you high quality, competitive price and quick delivery.
D) Material: aluminum
E) to meet customers high request, our experienced S&D group in charge of the design of all products and new mould, and all the items need past working pressure, surface finishing and thread test.
F) we are qualited member of NFPA, TUV.
