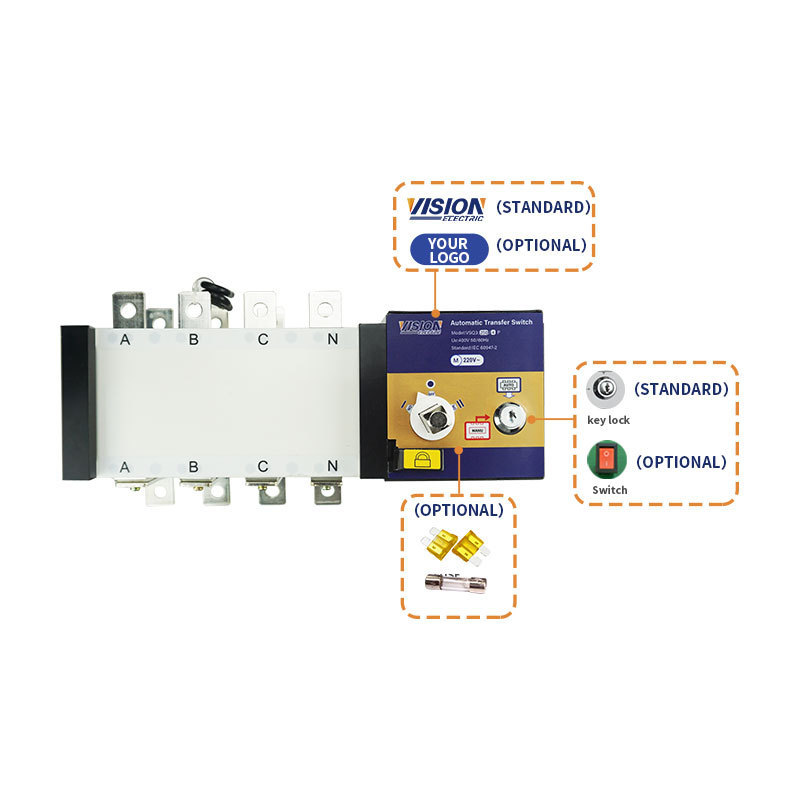

VISION ATS 1000A Dual Power 3 Phase Auto Changeover Switch 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A 3P 4P For Generator
VISION ATS 1000A Dual Power 3 Phase Auto Changeover Switch 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A 3P 4P For Generator
VISION ATS 1000A Dual Power 3 Phase Auto Changeover Switch 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A 3P 4P For Generator
VISION ATS 1000A Dual Power 3 Phase Auto Changeover Switch 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A 3P 4P For Generator
VISION ATS 1000A Dual Power 3 Phase Auto Changeover Switch 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A 3P 4P For Generator
VISION ATS 1000A Dual Power 3 Phase Auto Changeover Switch 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A 3P 4P For Generator
VISION ATS 1000A Dual Power 3 Phase Auto Changeover Switch 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A 3P 4P For Generator
VISION ATS 1000A Dual Power 3 Phase Auto Changeover Switch 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A 3P 4P For Generator

VISION ATS 1000A Dual Power 3 Phase Auto Changeover Switch 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A 3P 4P For Generator

FOB Reference Price: Get Latest Price
≥1 Pieces
US $499
≥20 Pieces
US $489
≥100 Pieces
US $469
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Type:
Dual power ATS
Material:
DMC \ Copper \ Silver
Rated current:
1000A
Pole:
4 Pole
Function:
Automatic Transfer Switch Generator ATS
Certificate:
PC Grade \ CCC certification \ CE certification \ SGS
Rated Ampere:
1000a
Warranty:
1 year
Feature:
Stable and reliable quality
Quality:
High Quality
Certification:
1 year
Max. Current:
1000A
Max. Voltage:
AC440V

Quick Details

Place of Origin:
China
Brand Name:
VISION
Model Number:
VSQ3-1000A
Type:
Dual power ATS
Material:
DMC \ Copper \ Silver
Rated current:
1000A
Pole:
4 Pole
Function:
Automatic Transfer Switch Generator ATS
Certificate:
PC Grade \ CCC certification \ CE certification \ SGS
Rated Ampere:
1000a
Warranty:
1 year
Feature:
Stable and reliable quality
Quality:
High Quality
Certification:
1 year
Max. Current:
1000A
Max. Voltage:
AC440V
VISION hot items






NEW COMING

COME TO GET NEW GOODS BE THE FIRST IN YOUR MARKET
Product Description


VISION ATS 20A 63A 80A 100A 125A 160A 250A 400A 630A 800A
1000A 1250A 1600A 2000A 2500A 3200A

VSQ Automatic Transfer Switch (ATS) is used under conditions of AC660V 50/60Hz or DC250V. It is two-stage PC class type with electromagnetism drive structure, which can make fast load transfer (transfer time ≤80ms) of two power circuits. It can be widely used for national one-class load, for example: high buildings, post, telecommunications, coal mines, ships, industrial assembly lines, health care, military facilities etc. The two power circuits can be grid, auto start genset, storage battery etc.

When the mains power fails or is in an abnormal state such as phase loss, overvoltage, or undervoltage, the ATS system
automatically starts the standby diesel generator set according to the preset mains loss confirmation delay. After confirming that the output voltage of the generator set is normal, it automatically switches to For the generator set, the load is powered by the generator set; when the mains power returns to normal, it will automatically switch to restore the mains power supply to the load after confirmation by a preset delay. After the generator set is unloaded, it will automatically stop after a preset cooling operation.
* Good installation performance
* The adoption of zero-crossing detect technique, emergency can be forced to set zero (simultaneously cut off two power supply)
* with obvious on-off indication, padlock and other functions, to achieve the isolation between the power supply and load
* High reliability, over 6000 times service life
* High degree of automation
* Good electromagnetic compatibility, strong anti-interference ability, no external interference * The switch has multiple input / output interfaces, which is convenient for remote PLC control and system automation.
Main Technology Parameters
Recommended Cabinet Installation Dimension
Model
Recommended Cabinet Dimension (L*W*H cm)
Recommended Cabinet Dimension (L*W*H cm)
VSQ3-100A-VSQ3-250A
50*40*80
50*25*60
VSQ3-300A-VSQ3-630A
60*50*180
55*45*160
VSQ3-800A -VSQ31250A
80*60*220
75*60*180
VSQ3-1600A
80*60*220
75*60*200
VSQ3-2500A-VSQ3-3200A
80*80*220
75*80*200
Reference only ,please according to the actual conditions.
Product name
Net weight(KG)
DIMENSION/SET (cm)
DIMENSION/CTN(CM)
VSQ3-100A
4
28*12*17
38.5*30*37
VSQ3-160A
7
34.5*21.5*23
45.5*37.5*25.5
VSQ3-250A
9.5
42*21.5*26
46.5*45*29
VSQ3-400A
17.5
53*30*33.5
53*30*33.5
VSQ3-630A
18.5
53*30*33.5
53*30*33.5
VSQ3-1000A
47.5
72*40*39
72*40*39
VSQ3-1250A
50
72*40*39
72*40*39
VSQ3-1600A
52.5
72*40*39
72*40*39
