Product Description
|
|
|
||
|

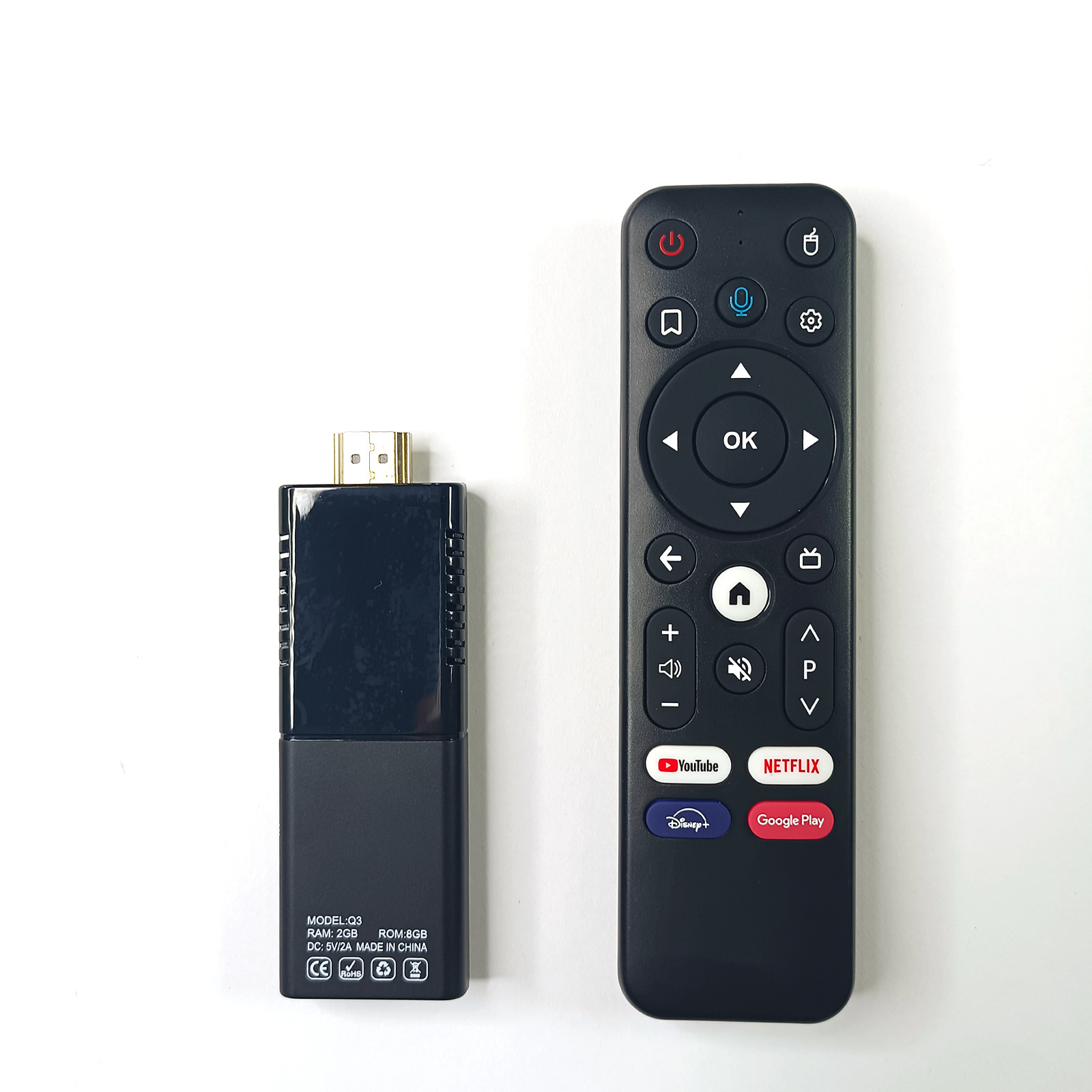

Quad core 64 bit 4K HDR Android TV Dongle
Android Q TV system H.264 1080p 60fps Video encoding H.264/H.265 10bit HDR decoding up to 4K@60fps HD 2.0 max to 4K60 output |
|
|
||
|
Basic parameters
|
|
|
||
|
System
|
SoC: Allwinner H313
|
|
||
|
|
CPU: Quad-core ARM Cortex™-A53
|
|
||
|
|
GPU: Mali-G31
|
|
||
|
|
DRAM: DDR3 2GB
|
|
||
|
|
FLASH: EMMC 8GB
|
|
||
|
|
OS: Android Q(10.0)
|
|
||
|
Network
|
Build in Wi-Fi 2.4GHz 802.11a/b/g/n/(5GHz 802.11a/b/g/n/ac + BT 5.0 Optional)
|
|
||
|
I/O
|
|
|
||
|
Video Output
|
HD2.0(4K60)
|
|
||
|
Network
|
Buildin Wi-Fi antenna, Support USB RJ45 adaptive
|
|
||
|
Peripheral Interface
|
1*USB2.0, 1*Micro+OTG
|
|
||
|
Power Interface
|
DC 5V 2A
|
|
||
|
Media
|
|
|
||
|
Video
|
Decoder:
• H.265 Main10@L5.1 decoder up to 4K@60fps • VP9 Profile 2 decoder up to 4K@30fps • AVS2 JiZhun 10bit decoder up to 4K@30fps • H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps • Multi-format 1080p@60fps video playback formats, including H.264 BP/MP/HP, H.263 BP, VP8, MPEG-1 MP/HL, MPEG-2 MP/HL, MPEG-4 SP/ASP@L5, AVS+/AVS JiZhun, WMV9/VC1, etc |
|
||
|
|
Format:
MKV, TS, M2TS, MOV, MP4, RM, RMVB, AVI, MPG, MPEG, DAT, VOB, FLV etc. |
|
||
|
Audio
|
Decoder:
MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, Real Audio, AC-3/DD+/AC-4, MPEG-H |
|
||
|
|
|
|
||
|
|
Format:
MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc. |
|
||
|
Subtitle Format
|
SMI, SRT, SSA, ASS,SUB, SUB+IDX, ISO Navigation
|
|
||
|
Photo Format
|
HD JPEG/BMP/GIF/PNG/TIFF
|
|
||
|
Features
|
|
|
||
|
Network Streaming
|
HTML5, RTSP, HLS, Smooth streaming
|
|
||
|
Multi-screen interactive
|
Miracast, DLNA and Airplay
|
|
||
|
Local Media Playback
|
Video/Audio/Picture
|
|
||
|
TV APP
|
Stalk/Ministra/Xtrea code(4K HDR10), Google Play(TV version), Google Voice Assistant, YouTube(4K), Netflix(TV Version), Android
TV APP |
|
||
|
External Storage
|
USB storage max to 2TB (FAT32/NTFS)
|
|
||
|
Other parameters
|
|
|
||
|
Input Voltage
|
DC IN 5V/2A
|
|
||
|
Power Consumption
|
10W Max
|
|
||
|
Operation Temperature
|
0~40℃, Humidity<95%
|
|
||
|
Physical characteristics
|
Size:
|
|
||
|
|
Weight:
|
|
||
|
|
Material
|
|
||
|
Proposed Accessory
|
Micro USB cable, User manual, HD cable, BT Voice remote
|
|
||
Founded in 2007 and located in Shenzhen China, Intek Technology Company is a comprehensive enterprise integrating R&D, production and sales of Android TV Box, Android DVB S2,Android DVB T2, Android ATSC and Android ISDB.Our Main brand Magicsee Android TV box enjoying a high reputation both at home and abroad
The Factory team composed of fully trained workers, professional sales, skilled engineers and technicians.
4 modern production lines with SMT Machines and Wave Soldering, covers all process of production from the material, PCBA production, and finished product testing, which fully guarantee any OEM&ODM orders
With 11 years experience in the field of TV Box,we get the SGS assessment certificate and become the member of alibaba assessed supplier.
