Quick Details
-
Brand Name:
-
HENZE Or OEM
-
Nominal Diameter:
-
1/2"~8"(DN15~DN200)
-
Operating Temperature:
-
-20 Deg. C~120 Deg. C
-
Operating Pressure:
-
Class150, PN10, PN16, 200WOG, 400WOG, 600WOG
-
Main Materials:
-
Bronze, B62, C95400, C95500, C95800
-
Seat Structure:
-
Metal Seated, Soft Seated(NBR, EPDM, FPM Or PTFE)
-
Gasket:
-
PTFE
-
Design standard:
-
ASME B16.34, ISO STD
-
Structural length:
-
ANSI and Manufacture Standard
-
Connect Ends:
-
RF, FF
-
Ends Standard:
-
ASME B16.5, EN 1092, BS 4504, BS 10
Quick Details
-
Port Size:
-
1/2"~8"(DN15~DN200)
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
NRV41F
-
Brand Name:
-
HENZE Or OEM
-
Nominal Diameter:
-
1/2"~8"(DN15~DN200)
-
Operating Temperature:
-
-20 Deg. C~120 Deg. C
-
Operating Pressure:
-
Class150, PN10, PN16, 200WOG, 400WOG, 600WOG
-
Main Materials:
-
Bronze, B62, C95400, C95500, C95800
-
Seat Structure:
-
Metal Seated, Soft Seated(NBR, EPDM, FPM Or PTFE)
-
Gasket:
-
PTFE
-
Design standard:
-
ASME B16.34, ISO STD
-
Structural length:
-
ANSI and Manufacture Standard
-
Connect Ends:
-
RF, FF
-
Ends Standard:
-
ASME B16.5, EN 1092, BS 4504, BS 10
Technical Parameters & Characteristics

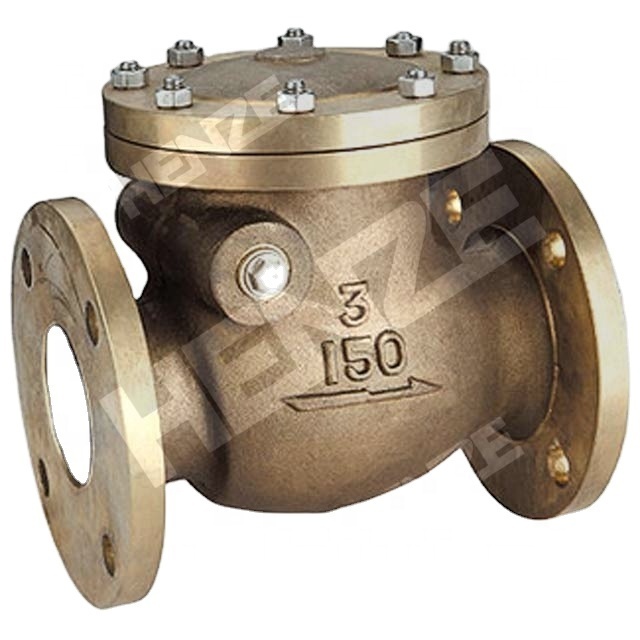

| Product Description | Bronze Flanged Swing Check Valve |
| Nominal Diameter | 1/2"~8"(DN15~DN200) |
| Operating Temperature | -20 Deg. C~120 Deg. C(the range of service temperature may vary for different materials) |
| Operating Pressure | Class150, PN10, PN16, 200WOG, 400WOG, 600WOG |
| Main Materials | Bronze, B62, C95400, C95500, C95800 |
| Seat Structure | Metal Seated |
| Gasket | PTFE |
| Design standard | ASME B16.34, ISO STD |
| Structural length | ANSI and Manufacture Standard |
| Connect Ends | RF, FF |
| Ends Standard | ASME B16.5, EN 1092, BS 4504, BS 10 |
| Test standard | ISO5208 |
| Application | Cold/hot Water, Oil, Gas |
| Other Features 1 | Easy of Maintenances |
| Other Features 2 | Renewable Disc |
| Other Features 3 | Stock is available |
| Other Features 4 | Union Bonnet, Bolted Bonnet |
