Quick Details
-
Mounting Type:
-
screw fixing
-
Description:
-
light switch, light switch
-
Model Number:
-
ST46F
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
STARLUX
-
Theory:
-
Infrared sensor
-
Output:
-
110-220V
-
Product name:
-
Infrared motion sensor
-
Material:
-
PC (UV proof)
-
Colour:
-
White
-
Certificates:
-
CE ROHS REACH
-
Warranty:
-
3 Years
-
Detection distance:
-
3-12m(<24 ℃ )
-
Time delay:
-
10s-7min
-
Installation height:
-
2.2-4m
-
ambient light:
-
<3-2000lux
Quick Details
-
Usage:
-
Infrared motion detector
-
Series:
-
infrared sensor
-
Features:
-
high sensitivity
-
Mounting Type:
-
screw fixing
-
Description:
-
light switch, light switch
-
Model Number:
-
ST46F
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
STARLUX
-
Theory:
-
Infrared sensor
-
Output:
-
110-220V
-
Product name:
-
Infrared motion sensor
-
Material:
-
PC (UV proof)
-
Colour:
-
White
-
Certificates:
-
CE ROHS REACH
-
Warranty:
-
3 Years
-
Detection distance:
-
3-12m(<24 ℃ )
-
Time delay:
-
10s-7min
-
Installation height:
-
2.2-4m
-
ambient light:
-
<3-2000lux

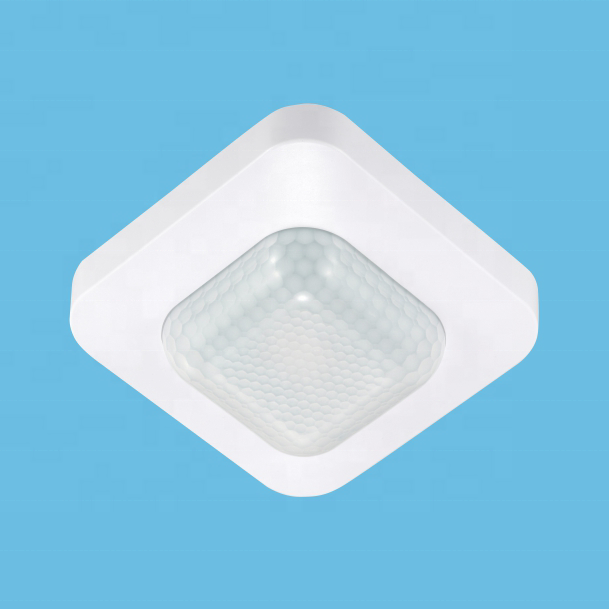

Welcome to use ST46F Infrared presence sensor!
360 Degree Detection Ceiling 3 detector
Congratulation on purchasing your new sensor and thank you for the confidence you have shown in us. You have chosen a high-quality product that has been manufactured, tested and packed with the greatest care. Please familiarize yourself with these instruction s before attempting to install the product because prolonged, reliable and trouble-free operation will only be ensured if it is fitted and used properly. We hope your new sensor will bring you lasting pleasure.
SPECIFICATION:
Power Sourcing: 110 -130V/AC 220 -240V/AC Detection Range: 360°
Power Frequency: 50/60Hz Detection Distance: 20m max(<24℃) adjustable
Ambient Light: <3-2000LUX (adjustable) Working Temperature: -20~+40℃
Time Delay: Min.10sec±3sec Working Humidity: <93%RH
Max.30min±2min Power Consumption: approx 0.5W
Installation Height: 2.2-6m Detection Moving Speed: 0.6-1.5m/s
Rated Load: 110 -130V/AC : 220 -240V/AC :
1000W(incandescent lamp) 2000W(incandescent lamp)
500W(energy-saving lamp) 1000W(energy-saving lamp)
Lifetime and Warranty:
| Lifetime(hr) | 26000-45000 at least |
| Warranty | 5 years |
FUNCTION:
Ø Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.
Ø SENS adjustable: It can be adjusted according to using location. The detection distance of low sensitivity could be only 3m and high sensitivity could be 12m which fits for large room.
Ø Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.
INSTALLATION ADVICE:
As the detector responds to changes in temperature, avoid the following situations:
Ø Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors etc.
Ø Avoid mounting the detector near heat sources, such as heating vents, air conditioning units, light etc.
Ø Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall plants etc.
CONNECTION:
Ø Unload the cover directly.
Ø Connect the power and the load into the connection-wire column of the sensor according to connection-wire diagram.
Ø Fix the sensor on the selected position with the inflated screw as the figure on the right.
Ø Install back the cover and then you can test it.
CONNECTION-WIRE SKETCH DIAGRAM: (See the below figure)
SENSOR INFORMATION:
TEST:
- Turn the LUX knob clockwise on the maximum (sun), turn the TIME knob anti-clockwise on the minimum, and turn the SENS knob clockwise on the maximum.
- When you switch on the power, the controlled load and indication lamp are both not working. Preheat 30 seconds later, the load and the indicator lamp are turned on synchronization, in the absence of no inductor signals, the load should be stopped working within 5-30sec, the indicator lamp is turned off.
- After the first is out, make it sense again after 5~10sec. The load should work. When there is no inductor signals in the indicator lamp, the load should be stopped working within 5-15sec.
- Turn ambient light knob anti-clockwise on the minimum. If it is adjusted in the less than 3LUX, the inductor load should not work after load stop working. If you cover the detection window with the opaque objects (towel etc), the load work .under no induction signal condition, the load should stop working within 5-15sec.
