Quick Details
-
Brand Name:
-
OUMUKA
-
Connection Mode:
-
512 Signal
-
Products Name:
-
Sunny 512 DMX Console/Moving Head Par Stage Light DMX Controller
-
Application:
-
LED Strip Light
-
standard::
-
DMX512/1990
-
384B DMX Console Power::
-
:DC 9-12V 1000ma min
-
Dimensions(mm)::
-
520mmX183mmX73mm
-
Net Weight::
-
3.0kg
-
240DMX::
-
Dimming channels: Channel 24
-
Computer controlled lights::
-
12
-
output interfaces::
-
3-pin XLR Core Block and Block Hole
-
Input Voltage:
-
AC100V-240V
Quick Details
-
Warranty(Year):
-
2-Year
-
Type:
-
MANUAL SWITCH
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OUMUKA
-
Connection Mode:
-
512 Signal
-
Products Name:
-
Sunny 512 DMX Console/Moving Head Par Stage Light DMX Controller
-
Application:
-
LED Strip Light
-
standard::
-
DMX512/1990
-
384B DMX Console Power::
-
:DC 9-12V 1000ma min
-
Dimensions(mm)::
-
520mmX183mmX73mm
-
Net Weight::
-
3.0kg
-
240DMX::
-
Dimming channels: Channel 24
-
Computer controlled lights::
-
12
-
output interfaces::
-
3-pin XLR Core Block and Block Hole
-
Input Voltage:
-
AC100V-240V
Product Description

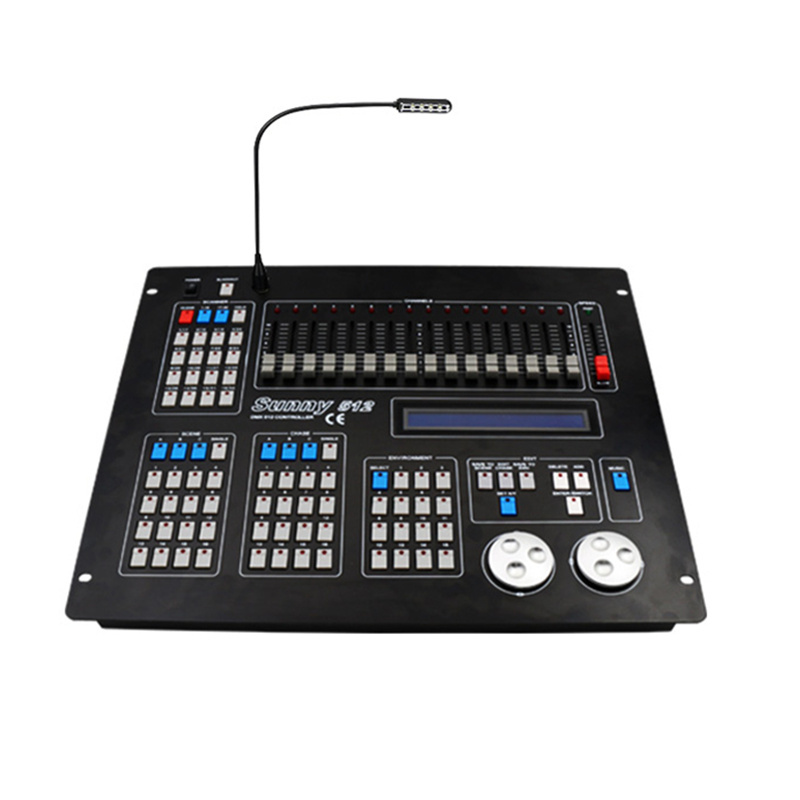

Sunny512 Product Introduction：
New Sunny 512 scanner DMX console is specially designed to control the various scanners. To adopt double CPU work in coordination,
high speed MCU proceed the precise control to achieve 16Bit X/Y movement. Up to 32 scanners may be connected with a maximum of 16
channels each. Multi scenes and multi chase programs can be operated at the same time, and 32 scanners can be selected
simultaneously. It is equipped with two groups of DMX 512 signals and is adapted for wide range of power voltage. The edit mode
and running mode of the console are convenient and flexible. So it is easy to edit and to handle. New Sunny 512 is the best suit
for art show, theater, dancing and acting.
✔DMX512/1990 standard, 512 DMX control channels.
✔2 output with optical isolated, withstand 2000Vrms. Independent slot structure, Which is easy to change.
✔Up to 32 scanners may be connected with a maximum of 16 channels each.
✔A large backlight LCD to display operation parameters.
✔16 sliders for channel, 1 slider for speed control.
✔1600 chase steps, 48 chases, up to 100 steps each. Each step contains its speed and cross time, can be set respectively. Trigger
mode selectable: Music synchronously and manual speed.
✔Cooperating with the chase speed slider, the time of the program step can be changed from 0.03s to 180s.
✔48 scanner scenes can be used directly.
✔4 chases, 48 scenes operated at the same time. At most 32 scanners can be selected simultaneously.
✔The X/Y channels of different scanners can be controlled by modulation wheel.
✔16Bit control for absolutely precise movement.
✔15 environment programs to output the combination, which are composed of different scenes, chases and manual output quickly.
✔The music trigger source can be selected between audio line input or inside microphone.
✔Easy to edit and handle.
✔The Data auto-saves.
✔High performance switching power supply, with extremely low power harmonious distortion and wide range of voltage, suit for the
requirement of different country.
high speed MCU proceed the precise control to achieve 16Bit X/Y movement. Up to 32 scanners may be connected with a maximum of 16
channels each. Multi scenes and multi chase programs can be operated at the same time, and 32 scanners can be selected
simultaneously. It is equipped with two groups of DMX 512 signals and is adapted for wide range of power voltage. The edit mode
and running mode of the console are convenient and flexible. So it is easy to edit and to handle. New Sunny 512 is the best suit
for art show, theater, dancing and acting.
✔DMX512/1990 standard, 512 DMX control channels.
✔2 output with optical isolated, withstand 2000Vrms. Independent slot structure, Which is easy to change.
✔Up to 32 scanners may be connected with a maximum of 16 channels each.
✔A large backlight LCD to display operation parameters.
✔16 sliders for channel, 1 slider for speed control.
✔1600 chase steps, 48 chases, up to 100 steps each. Each step contains its speed and cross time, can be set respectively. Trigger
mode selectable: Music synchronously and manual speed.
✔Cooperating with the chase speed slider, the time of the program step can be changed from 0.03s to 180s.
✔48 scanner scenes can be used directly.
✔4 chases, 48 scenes operated at the same time. At most 32 scanners can be selected simultaneously.
✔The X/Y channels of different scanners can be controlled by modulation wheel.
✔16Bit control for absolutely precise movement.
✔15 environment programs to output the combination, which are composed of different scenes, chases and manual output quickly.
✔The music trigger source can be selected between audio line input or inside microphone.
✔Easy to edit and handle.
✔The Data auto-saves.
✔High performance switching power supply, with extremely low power harmonious distortion and wide range of voltage, suit for the
requirement of different country.
384B DMX Console TECHNICAL FEATURES:
DMX512/1990 Standard
Total of 384 output channels
Control 12pcs DMX lighting fixtures with 32 DMX channel each
30 banks of 8 programmable scenes
16 slider for manual control of channels
Run last CHASE or BANK continouse when power on again
Midi control over banks, chases and blackout
Record up to 6 programmable chases with fade time and speeds
LED function and program display
Built in microphone for music trigerring
Total of 384 output channels
Control 12pcs DMX lighting fixtures with 32 DMX channel each
30 banks of 8 programmable scenes
16 slider for manual control of channels
Run last CHASE or BANK continouse when power on again
Midi control over banks, chases and blackout
Record up to 6 programmable chases with fade time and speeds
LED function and program display
Built in microphone for music trigerring
Auto mode program controlled by fade time sliders
SPECIFICATIONS
DMX in/out: 3 pin male/female XRL
LED lamp connector
Power input: DC 9-12V 1000ma min
Dimensions(mm):520mmX183mmX73mm
Net Weight: 3.0kg
Applicable fields: Disco hall, Dance Hall, Theme parties, large celebrations and performance,boutique,home party,wedding and other festival celebrating occasions
SPECIFICATIONS
DMX in/out: 3 pin male/female XRL
LED lamp connector
Power input: DC 9-12V 1000ma min
Dimensions(mm):520mmX183mmX73mm
Net Weight: 3.0kg
Applicable fields: Disco hall, Dance Hall, Theme parties, large celebrations and performance,boutique,home party,wedding and other festival celebrating occasions
240 DMX Console Specifications:
Total number of channels: 240 Road
Computer controlled lights: 12
Computer controlled lights the largest number of channels: Channel 16
Step-by-step procedures for the largest number of (scene): 40-step
The total number of step-by-step procedure (the scene): Step 480
Scene time to stop: 0.1-25 .5 s / step
Gradual scene: 0.1-speed 25.5 seconds
Dimming channels: Channel 24
Display: LCD liquid crystal display screen, 16 * 2 characters
DMX512 output interfaces: 3-pin XLR Core Block and Block Hole
Storage capacity: 128K high-capacity memory card
Input voltage: AC100V-240V, 50/60HZ
Product Size: 48.3x17.8x8cm
Weight: 4.25kg
Total number of channels: 240 Road
Computer controlled lights: 12
Computer controlled lights the largest number of channels: Channel 16
Step-by-step procedures for the largest number of (scene): 40-step
The total number of step-by-step procedure (the scene): Step 480
Scene time to stop: 0.1-25 .5 s / step
Gradual scene: 0.1-speed 25.5 seconds
Dimming channels: Channel 24
Display: LCD liquid crystal display screen, 16 * 2 characters
DMX512 output interfaces: 3-pin XLR Core Block and Block Hole
Storage capacity: 128K high-capacity memory card
Input voltage: AC100V-240V, 50/60HZ
Product Size: 48.3x17.8x8cm
Weight: 4.25kg
192 DMX Console TECHNICAL FEATURES
* built-in MIC head, and voice features
* Automatically trigger state, the TAP SYNC button or the SPEED potentiometer to determine automatically trigger time
* The four LED digital display
* show the first show CHANSES second place display SCENES
* Third, the four display BANKS
* three, four steps 0-255 or TIME
* BLACK OUT function can be used manually or MIDI remote control.
* CHASES programming and CHASES run function can be used manually or MIDI remote control
* output delay function, the FADE TIME potentiometer to adjust the delay time.
* DMX output polarity selection
* Use of premises: Stages, night clubs, Disco, Hotels, shops, family birthday party, Good for DJ
* Voltage: AC90--240V,50--60HZ
* Certificate:CE & ROHS & UL & SAA
* 192DMX CHANNEL
* Programmable SCENES.
* 8 adjustable potentiometer to adjust the output size
* Product Size: 48.3X13.4X7CM
* Weight: 1.55KG
* built-in MIC head, and voice features
* Automatically trigger state, the TAP SYNC button or the SPEED potentiometer to determine automatically trigger time
* The four LED digital display
* show the first show CHANSES second place display SCENES
* Third, the four display BANKS
* three, four steps 0-255 or TIME
* BLACK OUT function can be used manually or MIDI remote control.
* CHASES programming and CHASES run function can be used manually or MIDI remote control
* output delay function, the FADE TIME potentiometer to adjust the delay time.
* DMX output polarity selection
* Use of premises: Stages, night clubs, Disco, Hotels, shops, family birthday party, Good for DJ
* Voltage: AC90--240V,50--60HZ
* Certificate:CE & ROHS & UL & SAA
* 192DMX CHANNEL
* Programmable SCENES.
* 8 adjustable potentiometer to adjust the output size
* Product Size: 48.3X13.4X7CM
* Weight: 1.55KG
