Quick Details
-
Place of Origin:
-
Maylaysia
-
Brand Name:
-
Wouxun KG-UV6D
-
Model Number:
-
Wouxun KG-UV6D
-
Dimensions:
-
117*79*42mm
-
Frequency Range:
-
136-174Mhz 400-470mhZ
-
Portable Two Way Radio:
-
Handheld uhf walkie talkie
-
Mobile radio:
-
CP200 walkie talkie
-
two way transceiver CP200:
-
CB radio
-
two way radio CP200:
-
Wouxun KG-UV6D
-
cp200 army use radio:
-
ham radio
-
amateur radio:
-
cb ssb transceiver
-
walkie-talkie:
-
walkie& talkie
Quick Details
-
Talk Range:
-
50km
-
Terminal style:
-
Vehicle
-
Storage Channel:
-
16
-
Place of Origin:
-
Maylaysia
-
Brand Name:
-
Wouxun KG-UV6D
-
Model Number:
-
Wouxun KG-UV6D
-
Dimensions:
-
117*79*42mm
-
Frequency Range:
-
136-174Mhz 400-470mhZ
-
Portable Two Way Radio:
-
Handheld uhf walkie talkie
-
Mobile radio:
-
CP200 walkie talkie
-
two way transceiver CP200:
-
CB radio
-
two way radio CP200:
-
Wouxun KG-UV6D
-
cp200 army use radio:
-
ham radio
-
amateur radio:
-
cb ssb transceiver
-
walkie-talkie:
-
walkie& talkie
Product Description
Product Description

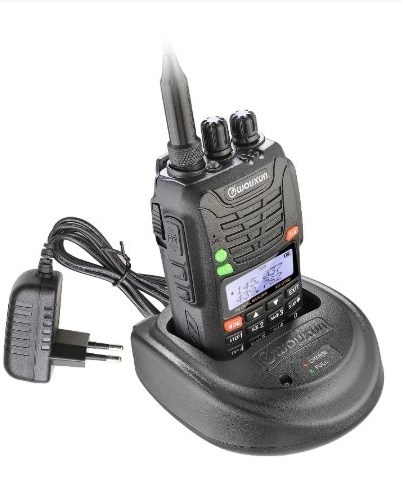

New Wouxun KG-UV6D Handheld 136-174/400-480MHz Dual Band Ham Two Way Transceiver
Main Features:
*Frequency range can be suitable for different countries or areas.
*Channle 199
*Dual band,Dual frequency,Dual display and Dual standby
*Wider RX/TX frequency band RX /TX:400-480MHz
*SMA-K Antenna connector
*Repeater multifunctional key
*High capacity Li-ion batterypack
*IP55 Waterproof
*Mulity step frequency(5K/6.25K/10K/12.5K/25K/50K/100K)
*DTMF encoding function.
*CTCSS/DCS sacn
*VOX transmission
*SOS function
*Band can be set freely VHF TX-UHF RX or UHF TX-VHF RX
*Digital FM radio
*Mulit scan mode
*Priority scan,add scanning channel
*High/Low power selection
*Channel name edit and display
*1750Hz tone
*Auto/Manual keypad lock
*Wire clone,programmable by computer
*Display selection on Channle mode
*Power on display message customizable
*English voice guide
Technicial Specification:
Frequency Range
136-174 & 400-480M Hz (RX/TX)
FM: 76-108MHz (RX)
Memory Channels
199 channels
Frequency Stability
±2.5ppm
Operating Voltage
7.4V
Operating Temperature
-30°C~+60°C
Waterproof
IP 55
Antenna Impedance
50Ω
Dimension
65x119x39.5(mm)
Weight
253g
Transmitter
Frequency Stability
±2.5PPM
RF Carrier Power
UHF: 4W VHF: 5W
Effective Radiation Power (ERP)
within pre-determined value ±7.5dB
Max. Frequency Deviation
Channel Space: 25KHz ±5KHz
Channel Space: 12.5KHz ±2.5KHz
Audio Modulation
+3dB (pre-emphasis by 6dB between 0.3-3KHz)
Adjacent Channel Power
Channel Space: 25KHz ≥70 dB
Channel Space: 12.5KHz ≥60 dB
Frequency Steup
5 , 6.25 , 10 , 12.5 , 25 , 50 , 100kHZ
Spurious Radiation
≤-30dBm
Inter modulation Attenuation
≥40dB
Modulation Distortion
≤10%
Residual FM
≤-35dB
Residual AM
≤3%
Receiver
Sensitivity (12dB SINAD)
0.16µV
Squelch Rejection Sensitivity
≤0.8µV
Squelch Sensitivity
≤0.2µV
Audio Output power
500mW
Audio Distortion
≤5%
Audio Response
(300-3000Hz) +1 to -3dB
Co-channel Rejection
≥-8.0dB
Performance of Amplitude Limiter
≤3
Adjacent Channel Selection
Channel Space: 25KHz ≥70 dB
Channel Space: 12.5KHz ≥60 dB
Inter-modulation
≥65 dB
Resistance
≥84 dB
Spurious Radiation
9KHz-1GHz≤-57dBm
1GHz-4GHz≤-47dBm
One full set including:
1*Dual Band KG-UVD6 Radio(136-174/400-480)
1*High Gain Dual Band Antanna
1*1700mAh Li-ion Battery Pack
1*Intelligent Charger(EU,US,AU Plug/Adaptor All Available)
1*Belt Clip
1*Wrist Strap
1*English User Manual
----------------------------------------------------------------------------------------------------------------------------------
