Quick Details
-
Ink Type:
-
Solvent Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dafeng
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
L385*W325*505MM
-
Weight:
-
25 KG
-
Print speed::
-
345 meter per minutes max
-
Font matrix::
-
5*5/ 5*7/ 7*9/ 8*12/ 10*14/ 14*16/ 16*24
-
Ink type::
-
Pigment Ink
-
Ink colour::
-
Black, White, Red, Yellow, Green, Blue, UV (invisible)
-
Product name::
-
CIJ PRINTER
-
Print line::
-
1-4 lines
-
Printing Direction::
-
360 degree
-
Protection Grade::
-
IP54
-
Product name:
-
expiry date inkjet printing machine for PET bottles
Quick Details
-
Print Dimension:
-
1-15mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
Solvent Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dafeng
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
L385*W325*505MM
-
Weight:
-
25 KG
-
Print speed::
-
345 meter per minutes max
-
Font matrix::
-
5*5/ 5*7/ 7*9/ 8*12/ 10*14/ 14*16/ 16*24
-
Ink type::
-
Pigment Ink
-
Ink colour::
-
Black, White, Red, Yellow, Green, Blue, UV (invisible)
-
Product name::
-
CIJ PRINTER
-
Print line::
-
1-4 lines
-
Printing Direction::
-
360 degree
-
Protection Grade::
-
IP54
-
Product name:
-
expiry date inkjet printing machine for PET bottles
Contact with me directly:
Email: dafeng.skye#hotmail.com
Skype:skye.zheng1
Mobile/whatsapp/wechat:0086 150 126 55026
small character serial number / lot number / expiry date inkjet printing machine for PET bottles / plastic bags
Excellent Performance&Stable & Low Maintenance
Product brief introduction

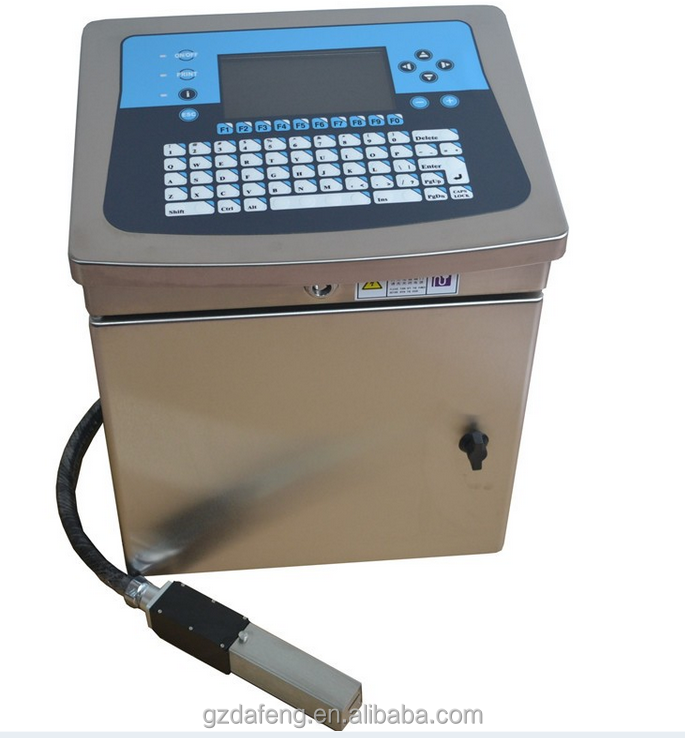

The DF-600 Continuous Ink Jet Printer is specifically designed to meet basic coding and printing requirements across a wide of substrates. There is almost no limit to the material and shape of the substrates. It is ideal for single to multiple shift applications, 24-hour uptime, operating at moderate line speeds with a very stable performance.
Product detail show
Print sample show
Specifications:
|
Specification |
Value |
|
Print Direction |
360 degree rotating |
|
Line of Print |
1-4 lines |
|
Character Height |
0.8-15MM |
|
Print Distance |
1-40 MM |
|
Line speed Capability |
150 Meters/Minute |
|
Message Storage Capability |
100 pcs of message |
|
Display |
320 * 240 LCD Screen |
|
Font Matrix |
5*7 /12*12 /12*16 /16*16 /24*24 |
|
Electrical Requirements |
220V 50HZ 200VA |
|
Temperature Range |
0 ℃ to 50 ℃ (32℉ to 122℉) |
|
Humidity Range |
10%-90%RH non-condensing |
|
Size |
L385*W325*505MM |
|
Weight |
25KG |
|
Ink color |
Pigment Ink |
Advanced Capabilities
1. USA MICROPUMP Gear Pump assures the stability of the Fluid delivery system and high print quality.
2. Special Printhead can be adjusted within 360 degree. The standard size of the nozzle plate is 60 μm. 50μm/55μm/65μm is also available.
3. Automatic Calibration adjusts jetting parameters automatically to help ensure high quality print.
4. Advanced fluid delivery system resists ink buildup and maximizes uptime, eliminating spills and helping to ensure the correct fluids are recycled so that there is no fluid waste.
5. Automatic cleaning of printhead and fluid delivery system during start up and shutdown process. One key intelligent automatic cleaning function.
6. Automatic Alarm system when the ink and solvent is below the warning line.
7. One key Start up and shutdown make the operations easy.
8. Stainless steel cabinet with brush finish can prevent dust and water efficiently.
9. Precise viscosity detection by viscometer.
10. Small and portable, the DF-600 can be easily moved from line to line.
Keyboard
Membrane switch with tactile feedback and special function keys. Simple Chinese character, Traditional Chinese Character,English Alphabet, Arabic Numerals, Common Symbol and Custom Logo/ Graphics is available.
Display
320*240 Bright display with WYSIWYG (What you see is what you get) and function keys for easy operation.
Custom Logo/Graphics
Any kind of Logo and Graphics can be created by individual user on printer
Print Distance
The distance between printhead and substrate can be from 0 mm to 40mm.
Material of Substrates
: Paper, Glass, Plastic, Steel, Aluminum, PE bag, Tin plate
Shape of Substrates
:Flat, Round, Uneven, all kinds of shapes are workable.
-------------------------------------------------------------------------------------------------------------------------------------------
