Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
0.1-40mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZLTECH
-
Weight (KG):
-
3500 KG
-
Configuration:
-
Support customization
-
Laser::
-
stable and long-lasting
-
Lifespan::
-
long
-
Cutting::
-
sheet metal
-
Run::
-
Precision
-
Craftsmanship::
-
exquisite
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
120m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
0.1-40mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZLTECH
-
Weight (KG):
-
3500 KG
-
Configuration:
-
Support customization
-
Laser::
-
stable and long-lasting
-
Lifespan::
-
long
-
Cutting::
-
sheet metal
-
Run::
-
Precision
-
Craftsmanship::
-
exquisite
Products Overview
Product Quality

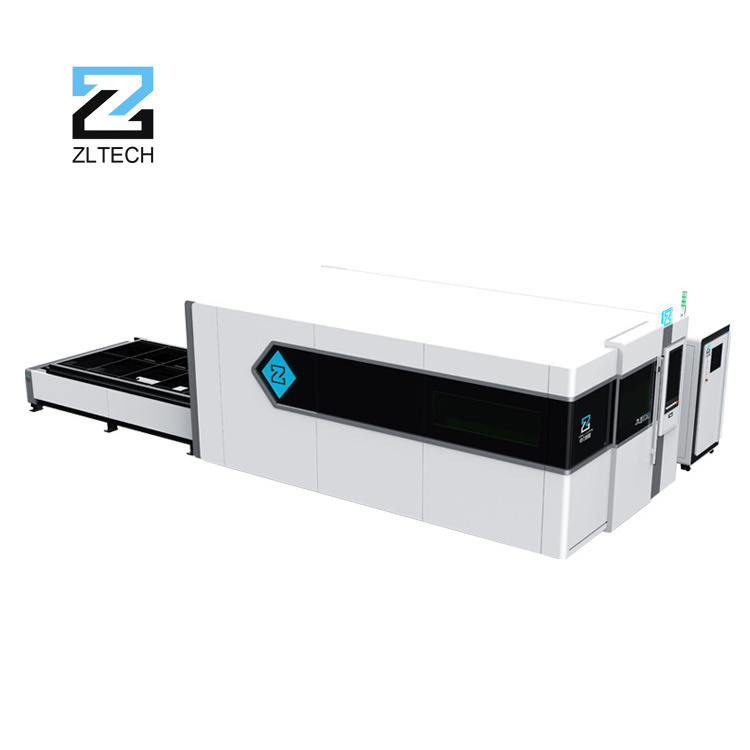

Full Protective Cover
- Adopts full enclosed protective glass cover design, which can prevent laser from hurting people.
- Also it equips with automatic dust collection system, the cutting dust can be filtered internally and discharged under certain standard, making the process more eco-friendly and no pollution.
- The front and back of the protective cover are equipped with built-in cameras, operated by the Intelligent central monitoring system, real-time intelligent monitoring reduces the incidence of accidents. Metal protective cover, safe production.
High Efficiency Exchanging Table
- Adopts high-speed parallel exchange table design, dual working table exchange at the same time, stable and reliable transmission mode.
- Shorten the exchange time, save the loading and unloading auxiliary time.
- Exchange motor controlled by frequency converter, can finish the table exchange within 15S.
Aviation Cast Aluminum Beam
-
Light weight allows for faster movement. And the high speed movement is more continent cause can greatly increase the processing speed.
Focus Cutting Head
- Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thickness of the materials. It can shorten the perforation time, improve the perforation quality and cutting speed. It’s simple, convenient and fast.
- Full-circle water cooling around the focusing component, which can realize no heat, no fog with high power cutting, small volume cutting and long term cutting, the lifetime of the cutting head is improved greatly.
Laser Source
- Long life and maintenance-free operation
- High elector-optical conversion efficiency
- Good beam quality, high energy density
- Remote networking diagnosis system
- Wide modulation frequency
- Strong reliability
- High elector-optical conversion efficiency
- Good beam quality, high energy density
- Remote networking diagnosis system
- Wide modulation frequency
- Strong reliability
China CypCut
-
CypCut is the earliest developed laser cutting system and is currently one of the largest brands of CNC laser cutting machine systems in China. Powerful functions, user-friendly design, and penetrability make it more and more popular.
- Closed-loop control, no lost steps, high precision.
- Good high-speed performance, rated speed can reach 3000 rpm generally.
- Running smoothly even at low speed.
- Fast response time, high reliability.
-High output torque with small rotation clearance
-PCS-2 standard configuration, efficiency up to 98%
-High gear meshing accuracy
Taiwan YYC rack gear
-High transmission efficiency
-The transmission is sensitive and stable
-High positioning accuracy
-Good accuracy retention
-High transmission rigidity
Germany Aventics pneumatic proportional valve
The air flow and pressure can be adjusted continuously and proportionally according to the change of input signal.
- Real time display current water temperature
- Dual temperature dual control mode
- Energy saving, electricity saving and environmental protection
- Stable and reliable performance
Parameter
|
item
|
value
|
|
Application
|
LASER CUTTING
|
|
Applicable Material
|
Metal
|
|
Condition
|
New
|
|
Laser Type
|
Fiber Laser
|
|
Cutting Area
|
1500mm*3000mm
|
|
Cutting Speed
|
120m/min
|
|
Graphic Format Supported
|
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
|
|
Cutting Thickness
|
0.1-40mm
|
|
CNC or Not
|
Yes
|
|
Cooling Mode
|
WATER COOLING
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
ZLTECH
|
|
Laser Source Brand
|
MAX/Raycus/IPG/JPT/DK/reci/EVERFOTON/bwt
|
|
Laser Head Brand
|
Au3Tech/Raytools/OSPRI/PRECITEC
|
|
Servo Motor Brand
|
Motor/Fuji/Yaskawa/Panasonic/Leadshine
|
|
Guiderail Brand
|
HIWIN
|
|
Control System Brand
|
Cypcut
|
|
Weight (KG)
|
3500KG
|
|
Key Selling Points
|
Long Service Life
|
|
Optical Lens Brand
|
Wavelength
|
|
Warranty
|
3 years
|
|
Applicable Industries
|
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
2 years
|
|
Core Components
|
Motor, Gear, Gearbox, PLC
|
|
Mode of Operation
|
Pulsed
|
|
Configuration
|
Support customization
|
|
Products handled
|
Sheet Metal
|
|
Feature
|
Water-cooled
|
|
Laser:
|
stable and long-lasting
|
|
Lifespan:
|
long
|
|
Cutting:
|
sheet metal
|
|
Run:
|
Precision
|
|
Craftsmanship:
|
exquisite
|
