Quick Details
-
Material:
-
wooden box
-
Weight:
-
80kg
-
Size:
-
68*65*155cm
-
Power:
-
0.75KW
-
Weight (KG):
-
80 kg
-
Product name:
-
water treatment machinery
-
Type:
-
Pure Water Treatment System
-
Application:
-
Direct drinking
-
Function:
-
Reverse Osmosis Water Purification
-
Membrane Vessel:
-
SS304
-
Pipe:
-
UPVC
-
size:
-
68*65*155cm
-
weight:
-
80KG
-
Certification:
-
CE Certificate
-
Voltage:
-
220V
Quick Details
-
Marketing Type:
-
Hot Product 2021
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
qingqingquan
-
Material:
-
wooden box
-
Weight:
-
80kg
-
Size:
-
68*65*155cm
-
Power:
-
0.75KW
-
Weight (KG):
-
80 kg
-
Product name:
-
water treatment machinery
-
Type:
-
Pure Water Treatment System
-
Application:
-
Direct drinking
-
Function:
-
Reverse Osmosis Water Purification
-
Membrane Vessel:
-
SS304
-
Pipe:
-
UPVC
-
size:
-
68*65*155cm
-
weight:
-
80KG
-
Certification:
-
CE Certificate
-
Voltage:
-
220V
Product Description
Small Factory Water Treatment Equipment Groundwater Well Water Reverse Osmosis Machinery RO Filter Mineral Water Making Machine
Industrial reverse osmosis systems can purify different water sources such as tap water, rainwater, urban water, and groundwater. The pure water produced is widely used in all walks of life in life and has broad application prospects.
application:
Electronic industry water, pharmaceutical industry water, chemical industry process water, power industry boiler make-up water, food industry water, seawater, brackish water desalination, drinking pure water,
Popular capacity: 250LPH, 500LPH, 750LPH, 1000LPH.
Process flow
Raw water → 1. Booster pump → 2. Sand (multi-media) filter → 3. Activated carbon filter → 4. Softener (optional) → 5. Safety (micron) filter → 6. High pressure pump → 7. Reverse osmosis system → 8. Ultraviolet sterilizer (ozone generator) → pure water storage tank
The functions of each part of the water treatment plant
1. Raw water pump - provides pressure to the quartz sand filter / activated carbon filter
2. Quartz sand filter - get rid of turbidity, suspended solids, organics, colloids, etc.
3. Activated carbon filter - removes color, free chlorides, organics, harmful substances, etc.
4. Softeners - used to replace calcium and magnesium "ions" in water.
5. Safety filter - to prevent large particles of impurities from entering the RO membrane, the accuracy is 5um
6. High pressure pump - provides high pressure for RO membrane.
7. RO system - the main part of the device. The desalination rate of RO membrane can reach 99%, removing more than 99% of ions
8. UV Sterilizer or Ozone Generator - Kills germs

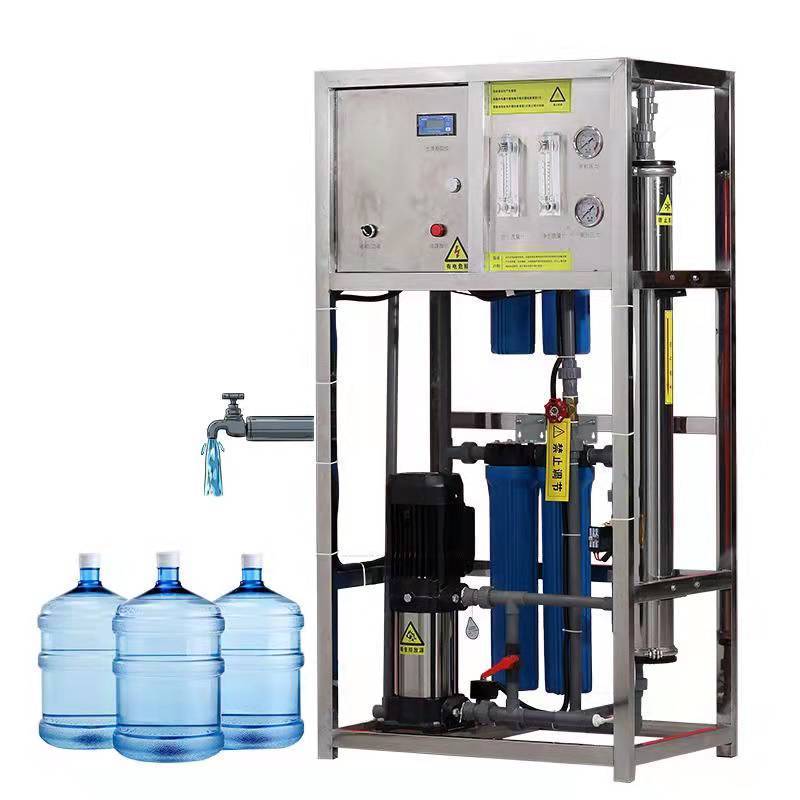

Product Images
Specification
|
Production Capacity
|
250L per hour
|
|
power
|
0.75KW
|
|
TDS range
|
Below 1500TDS
|
|
Applicable water source
|
well water, river water, tap water
|
|
Process system
|
RO reverse osmosis
|
|
Machine material
|
Stainless Steel 304
|
|
Scope of application
|
Factory, farm, school, chemical, pharmaceutical, hotel, hospital, etc.
|
Application field
Packing & Delivery
Carton
